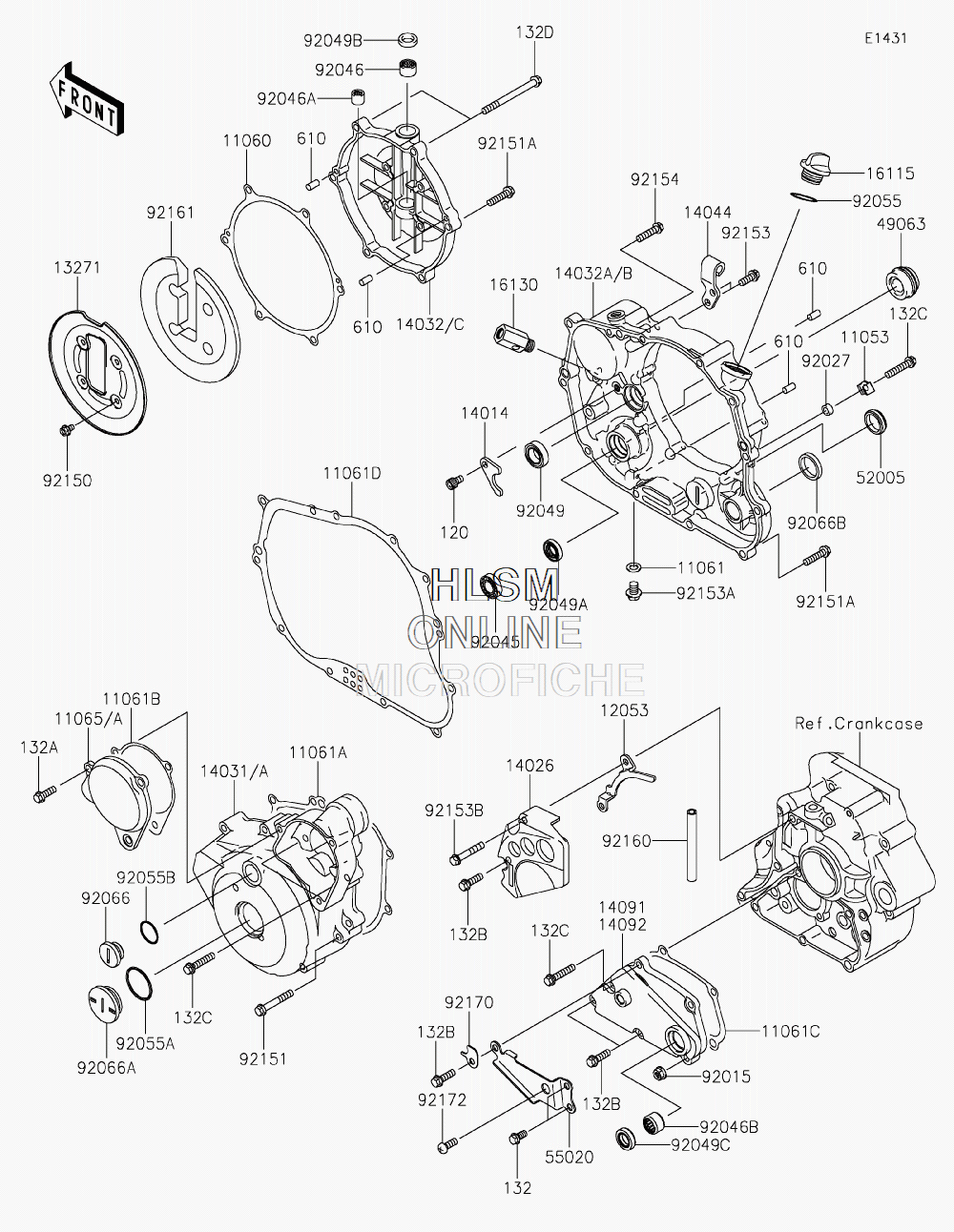

ENGINE COVER для Kawasaki KLX250 (KLX250SKFA) - 2019 года выпуска`
-
№АртикулНазвание
-
1105311053-1656 BRACKETBRACKET
-
1106011060-1325 GASKET, CLUTCH COVER OUTERGASKET, CLUTCH COVER OUTER
-
1106111061-0418 GASKET, 8.2X14X1.0GASKET, 8.2X14X1.0
-
11061A11061-0891 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061B11061-0892 GASKET, CAPGASKET, CAP
-
11061C11061-0897 GASKET, TRANSMISSION COVERGASKET, TRANSMISSION COVER
-
11061D11061-0923 GASKET, CLUTCH COVER INNERGASKET, CLUTCH COVER INNER
-
11065A11065-0342 CAP, GENERATOR COVERCAP, GENERATOR COVER
-
1205312053-1337 GUIDE-CHAINGUIDE-CHAIN
-
1327113271-1567 PLATEPLATE
-
1401414014-1062 PLATE-POSITIONPLATE-POSITION
-
1402614026-0027 COVER-CHAINCOVER-CHAIN
-
14031A14031-0124 COVER-GENERATORCOVER-GENERATOR
-
14032B14032-0006 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
14032C14032-0146 COVER-CLUTCHCOVER-CLUTCH
-
1404414044-1078 HOLDER-CABLEHOLDER-CABLE
-
1409214092-0108 COVERCOVER
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
1613016130-0002 VALVE-ASSY-RELIEFVALVE-ASSY-RELIEF
-
4906349063-1055 SEAL-MECHANICAL, WATERSEAL-MECHANICAL, WATER
-
5200552005-1009 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5502055020-1460 GUARD, TRANSMISSION COVERGUARD, TRANSMISSION COVER
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202792027-1885 COLLAR, 6.5X10.5X4.5COLLAR, 6.5X10.5X4.5
-
9204592045-1246 BEARING-BALL, 6901BEARING-BALL, 6901
-
9204692046-0034 BEARING-NEEDLE, HK1210FMBEARING-NEEDLE, HK1210FM
-
92046A92046-0042 BEARING-NEEDLEBEARING-NEEDLE
-
92046B92046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
9204992049-1191 SEAL-OILSEAL-OIL
-
92049A92049-1228 SEAL-OIL, SC 12X22X5SEAL-OIL, SC 12X22X5
-
92049B92049-1262 SEAL-OIL, AG0353-F0SEAL-OIL, AG0353-F0
-
92049C92049-1559 SEAL-OILSEAL-OIL
-
9205592055-012 RING-ORING-O
-
92055A92055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
92055B92055-1146 RING-O, 20X2RING-O, 20X2
-
120120CA0610 BOLT-SOCKET, 6X10BOLT-SOCKET, 6X10
-
132132BC0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BC0618 BOLT-FLANGED-SMALL, 6X18BOLT-FLANGED-SMALL, 6X18
-
132B132BC0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132C132BC0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132D132BC0670 BOLT-FLANGED-SMALL, 6X70BOLT-FLANGED-SMALL, 6X70
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9206692066-1397 PLUG, COVERPLUG, COVER
-
92066A92066-1404 PLUGPLUG
-
92066B92066-1411 PLUG, RCA297PLUG, RCA297
-
9215092150-1406 BOLT, 5X8BOLT, 5X8
-
9215192151-1131 BOLT, 6X40BOLT, 6X40
-
92151A92151-1930 BOLT, FLANGED-SMALL, 6X25BOLT, FLANGED-SMALL, 6X25
-
9215392153-0695 BOLT, 6X16BOLT, 6X16
-
92153A92153-1342 BOLT, FLANGED, 8X10BOLT, FLANGED, 8X10
-
92153B92153-1351 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
9215492154-0490 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216092160-1866 DAMPERDAMPER
-
9216192161-1182 DAMPERDAMPER
-
9217092170-1785 CLAMPCLAMP
-
9217292172-0223 SCREW, 6X16SCREW, 6X16
