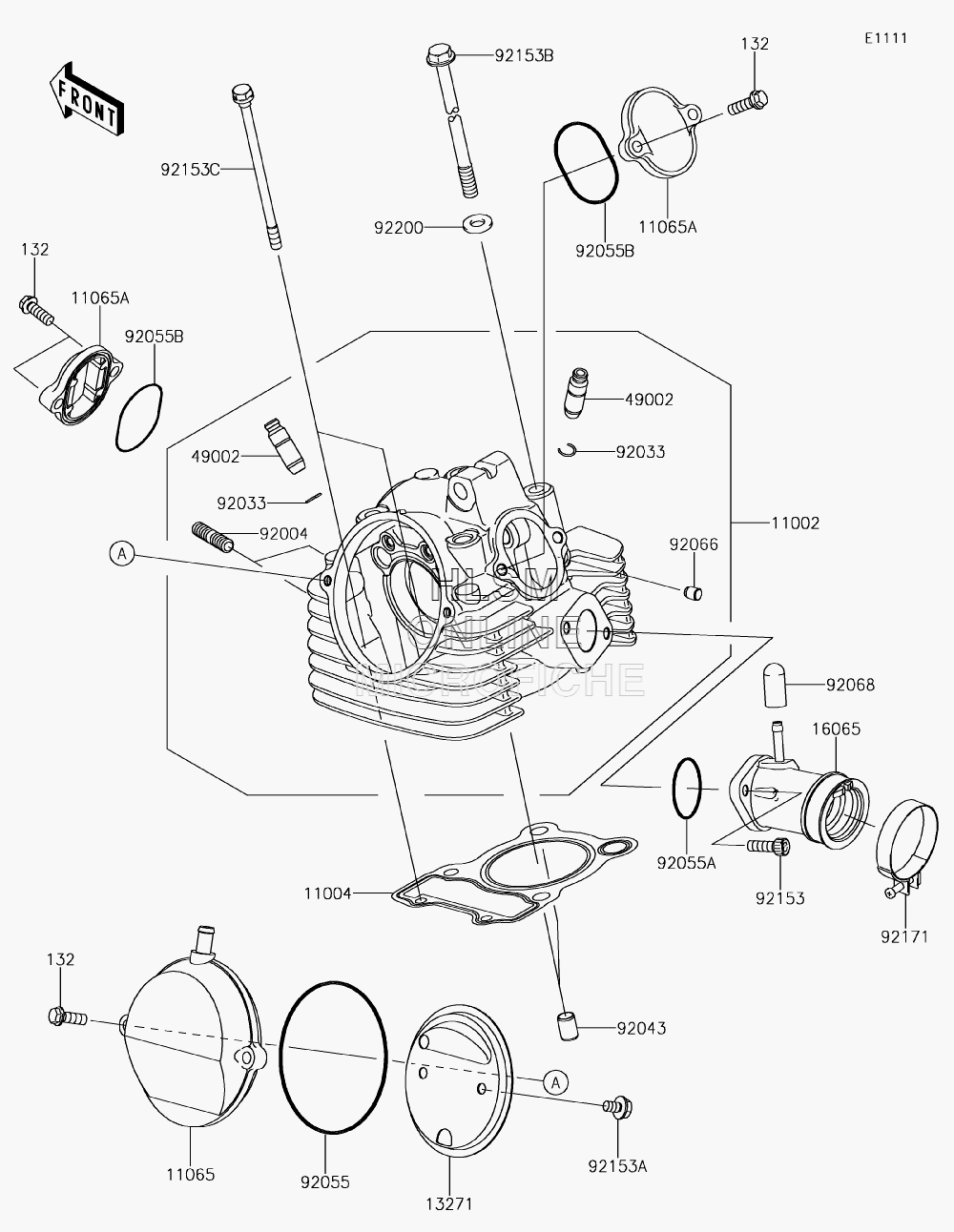

CYLINDER HEAD для Kawasaki KLX140L (KLX140BKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1100211002-0061 HEAD-ASSY-CYLINDERHEAD-ASSY-CYLINDER
-
1100411004-0065 GASKET-HEADGASKET-HEAD
-
1106511065-0212 CAPCAP
-
11065A11065-0252 CAP, VALVE ADJUSTINGCAP, VALVE ADJUSTING
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
1327113271-1844 PLATE, BREATHERPLATE, BREATHER
-
1606516065-0054 HOLDER-CARBURETORHOLDER-CARBURETOR
-
4900249002-0019 GUIDE-VALVEGUIDE-VALVE
-
9200492004-1217 STUD, 8X22STUD, 8X22
-
9203392033-1247 RING-SNAPRING-SNAP
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-0202 RING-O, 86X1.9RING-O, 86X1.9
-
92055A92055-1256 RING-O, 32MMRING-O, 32MM
-
92055B92055-1655 RING-O, ADJUST CAPRING-O, ADJUST CAP
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
9206892068-006 PLUG, 12X25PLUG, 12X25
-
9215392153-0481 BOLT, 6X20BOLT, 6X20
-
92153A92153-1140 BOLT, 6X10BOLT, 6X10
-
92153B92153-1141 BOLT, 8X201BOLT, 8X201
-
92153C92153-1970 BOLT, FLANGED, 6X110BOLT, FLANGED, 6X110
-
9217192171-0691 CLAMPCLAMP
-
9220092200-1631 WASHER, 8.2X17X2.3WASHER, 8.2X17X2.3
