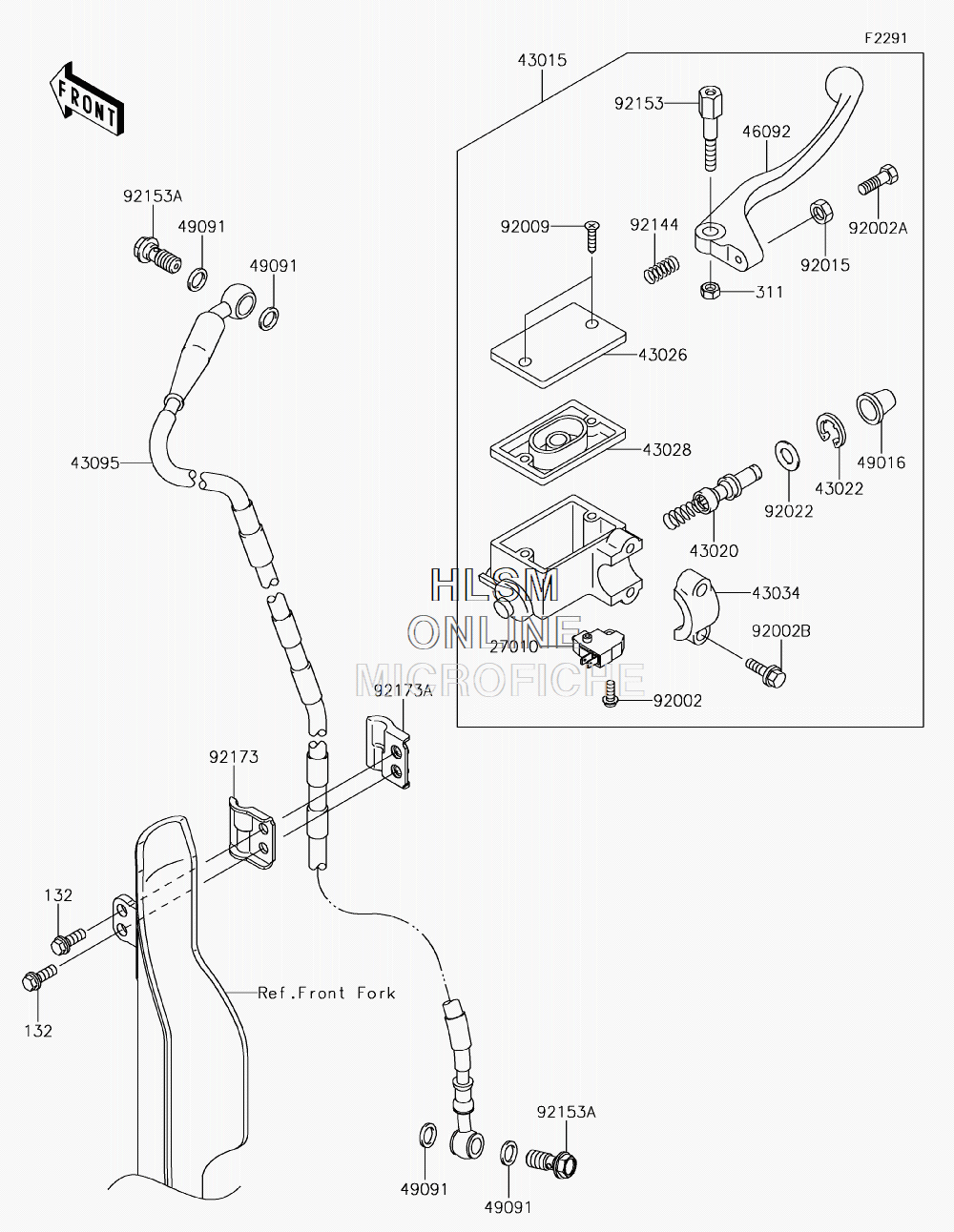

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX450R (AUSTRALIAN) (KLX450AJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0616 BOLT-FLANGED-SMALL, 6X16
    BOLT-FLANGED-SMALL, 6X16
  • 27010
    27010-0025 SWITCH, BRAKE
    SWITCH, BRAKE
  • 311
    311BB0600 NUT-HEX, 6MM
    NUT-HEX, 6MM
  • 43015
    43015-0040 CYLINDER-ASSY-MASTER, FRONT
    CYLINDER-ASSY-MASTER, FRONT
  • 43020
    43020-1065 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43022
    43022-1010 STOPPER-BRAKE, PISTON
    STOPPER-BRAKE, PISTON
  • 43026
    43026-1074 CAP-BRAKE
    CAP-BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER-BRAKE, MASTER CYLINDER
    HOLDER-BRAKE, MASTER CYLINDER
  • 43095
    43095-0314 HOSE-BRAKE, FRONT
    HOSE-BRAKE, FRONT
  • 46092
    46092-1175 LEVER-GRIP, FRONT BRAKE
    LEVER-GRIP, FRONT BRAKE
  • 49016
    49016-1044 COVER-SEAL, MASTER CYLINDER
    COVER-SEAL, MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1893 BOLT, ADJUST
    BOLT, ADJUST
  • 92002B
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1642 NUT, ADJUST
    NUT, ADJUST
  • 92022
    92022-1814 WASHER
    WASHER
  • 92144
    92144-1103 SPRING, RETURN
    SPRING, RETURN
  • 92153
    92153-0790 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92153A
    92153-1419 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92173
    92173-1177 CLAMP, BRAKE HOSE, LEFT HAND
    CLAMP, BRAKE HOSE, LEFT HAND
  • 92173A
    92173-1178 CLAMP, BRAKE HOSE, RIGHT HAND
    CLAMP, BRAKE HOSE, RIGHT HAND
