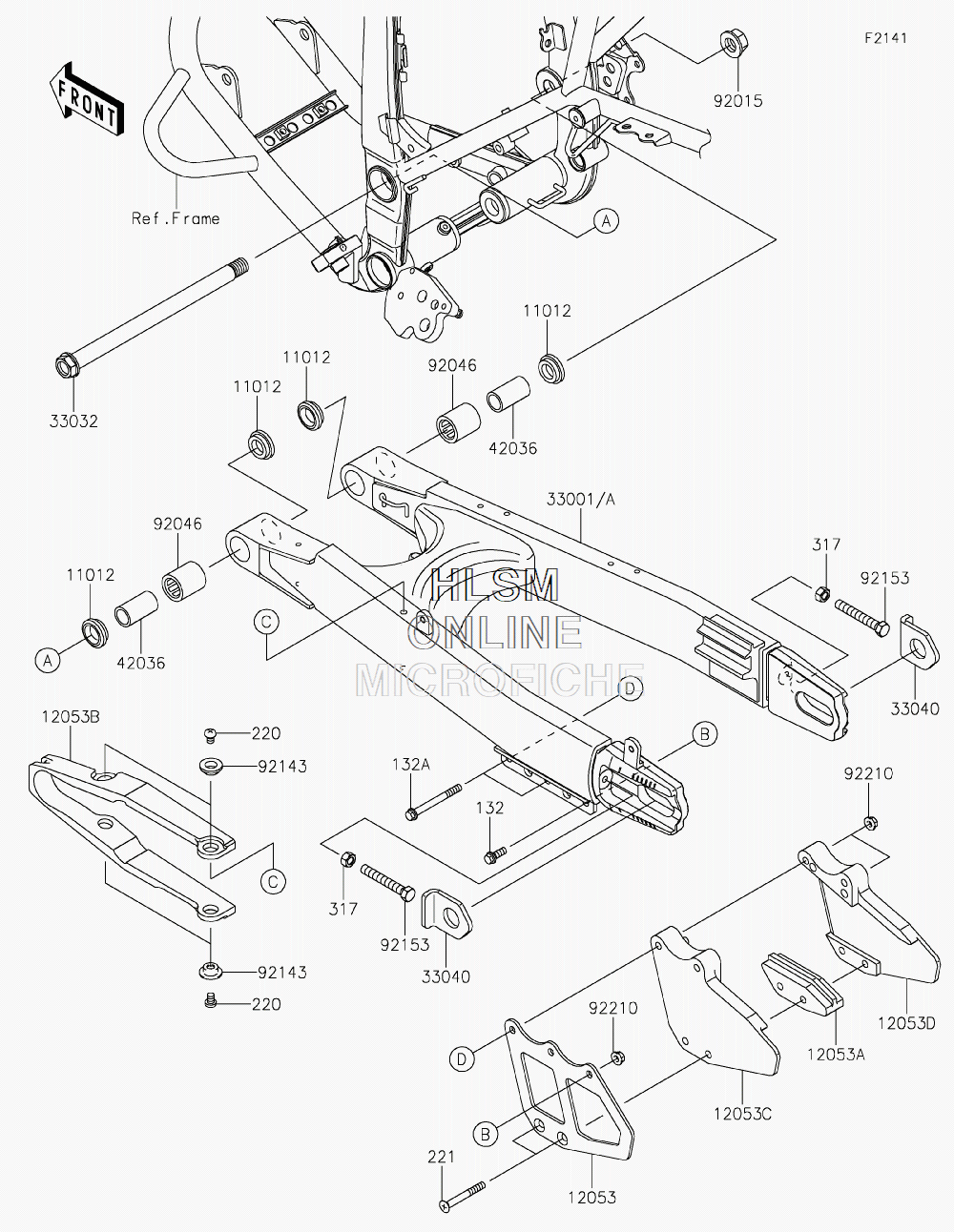

SUSPENSION - SWINGARM для Kawasaki KLX250 (KLX250SJFA) - 2018 года выпуска`
-
№АртикулНазвание
-
1101211012-1259 CAP, SWING ARMCAP, SWING ARM
-
1205312053-1268 GUIDE-CHAIN, REAR, OUTSIDEGUIDE-CHAIN, REAR, OUTSIDE
-
12053A12053-1270 GUIDE-CHAIN, DRIVE, REAR, INSIDEGUIDE-CHAIN, DRIVE, REAR, INSIDE
-
12053B12053-1328 GUIDE-CHAIN, DRIVE, FRONTGUIDE-CHAIN, DRIVE, FRONT
-
12053C12053-1453 GUIDE-CHAIN, DRIVE, REAR, OUTSIDEGUIDE-CHAIN, DRIVE, REAR, OUTSIDE
-
12053D12053-1454 GUIDE-CHAIN, DRIVE, REAR, INSIDEGUIDE-CHAIN, DRIVE, REAR, INSIDE
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132BA0660 BOLT-FLANGED-SMALL, 6X60BOLT-FLANGED-SMALL, 6X60
-
220220AA0608 SCREW-PAN-CROS, 6X8SCREW-PAN-CROS, 6X8
-
221221AA0650 SCREW-CSK-CROS, 6X50SCREW-CSK-CROS, 6X50
-
317317BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
3300133001-0176-18R ARM-COMP-SWING, (F.S.BLACK)ARM-COMP-SWING, (F.S.BLACK)
-
3303233032-0033 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0023 ADJUSTER-CHAINADJUSTER-CHAIN
-
4203642036-1064 SLEEVE, SWING ARMSLEEVE, SWING ARM
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
9204692046-0038 BEARING-NEEDLEBEARING-NEEDLE
-
9214392143-1156 COLLARCOLLAR
-
9215392153-1407 BOLT, 8X55BOLT, 8X55
-
9221092210-0630 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
