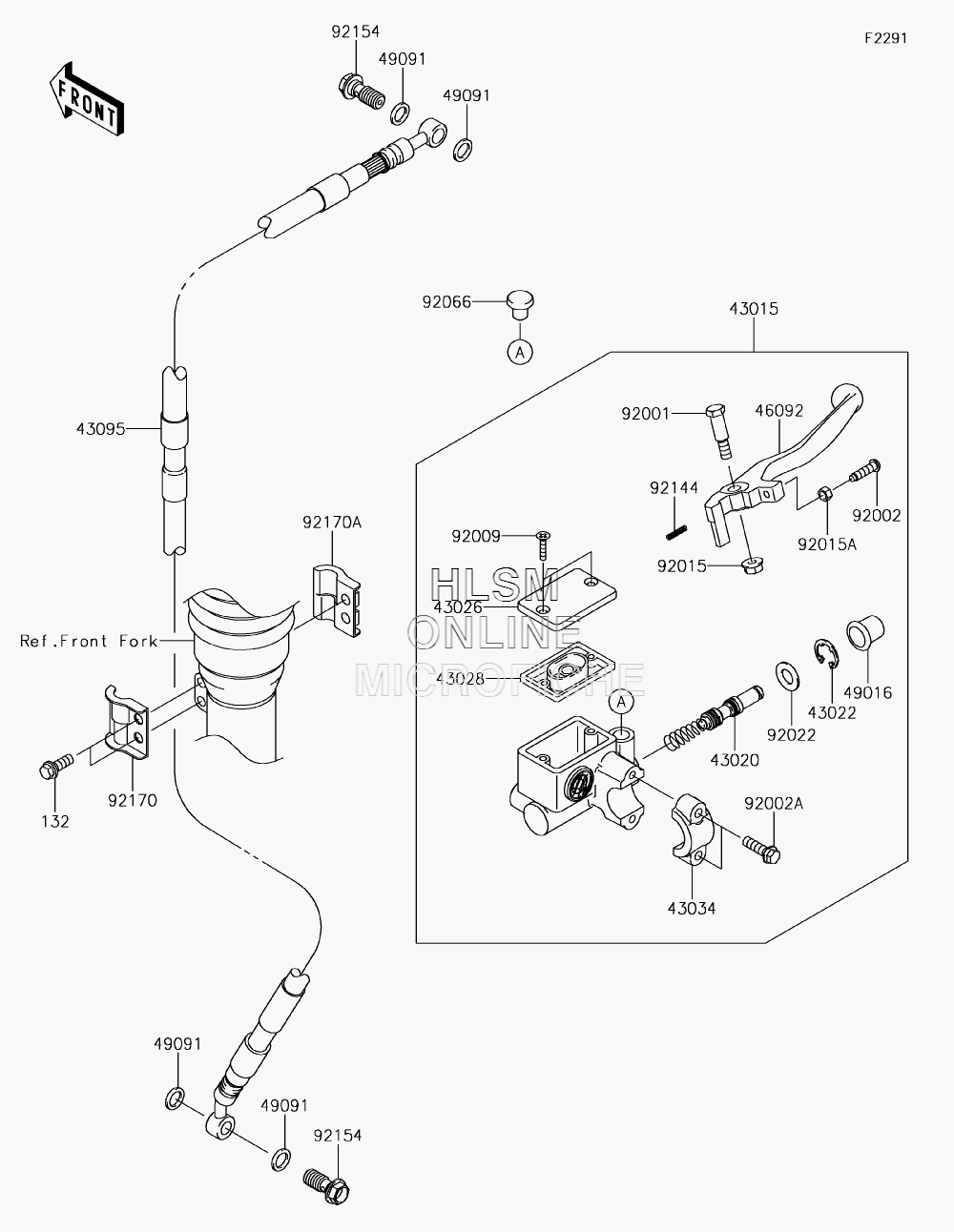

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX140 (KLX140AJF) - 2018 года выпуска`
-
№АртикулНазвание
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
4301543015-0106 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1065 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-0335 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1175 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1893 BOLT, ADJUSTBOLT, ADJUST
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM, (BLACK)NUT, FLANGED, 6MM, (BLACK)
-
92015A92015-1642 NUT, ADJUSTNUT, ADJUST
-
9202292022-1814 WASHERWASHER
-
9206692066-1348 PLUGPLUG
-
9214492144-1103 SPRING, RETURNSPRING, RETURN
-
9215492154-0226 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1231 CLAMP, BRAKE HOSE, OUTSIDECLAMP, BRAKE HOSE, OUTSIDE
-
92170A92170-1232 CLAMP, BRAKE HOSE, INSIDECLAMP, BRAKE HOSE, INSIDE
