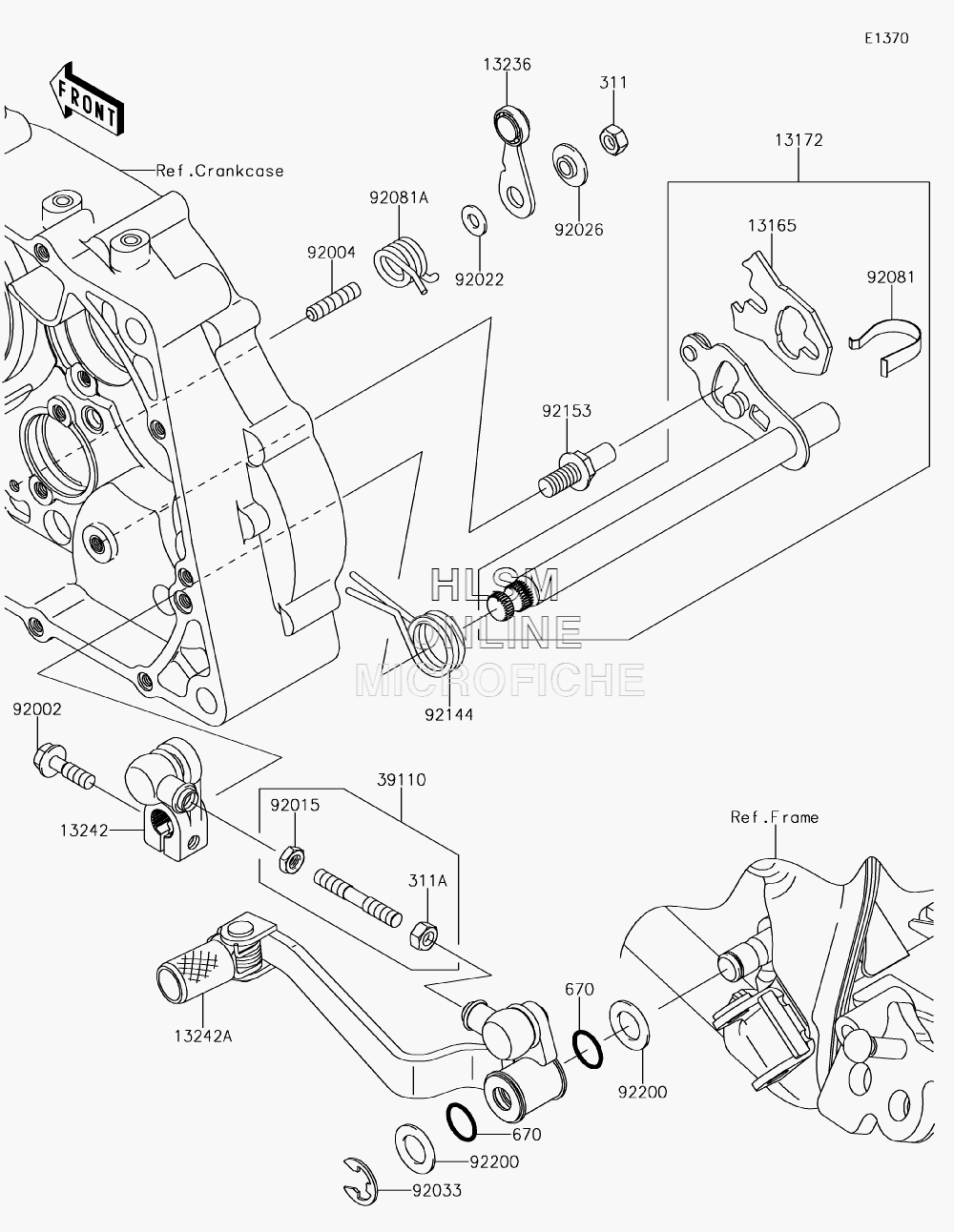

GEAR CHANGE MECHANISM для Kawasaki KLX140L (KLX140BHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1316513165-0003 PAWL, CHANGE SHAFTPAWL, CHANGE SHAFT
-
1317213172-0009 SHAFT-ASSY-CHANGESHAFT-ASSY-CHANGE
-
1323613236-0157 LEVER-COMP, POSITIONLEVER-COMP, POSITION
-
1324213242-0034 LEVER-ASSY-CHANGELEVER-ASSY-CHANGE
-
13242A13242-0134 LEVER-ASSY-CHANGE, PEDALLEVER-ASSY-CHANGE, PEDAL
-
311311BA0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
311A311BB0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
3911039110-0027 ROD-ASSY-TIEROD-ASSY-TIE
-
670670B2012 O RING, 12MMO RING, 12MM
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9200492004-0032 STUD, 6X12STUD, 6X12
-
9201592015-1178 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9203392033-1178 RING-SNAP, TYPE-E, 10MMRING-SNAP, TYPE-E, 10MM
-
9208192081-1829 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081A92081-1993 SPRING, POSITION LEVERSPRING, POSITION LEVER
-
9214492144-1345 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9215392153-1144 BOLT, 8X15.5BOLT, 8X15.5
-
9220092200-0388 WASHER, 12.5X21X1.2WASHER, 12.5X21X1.2
