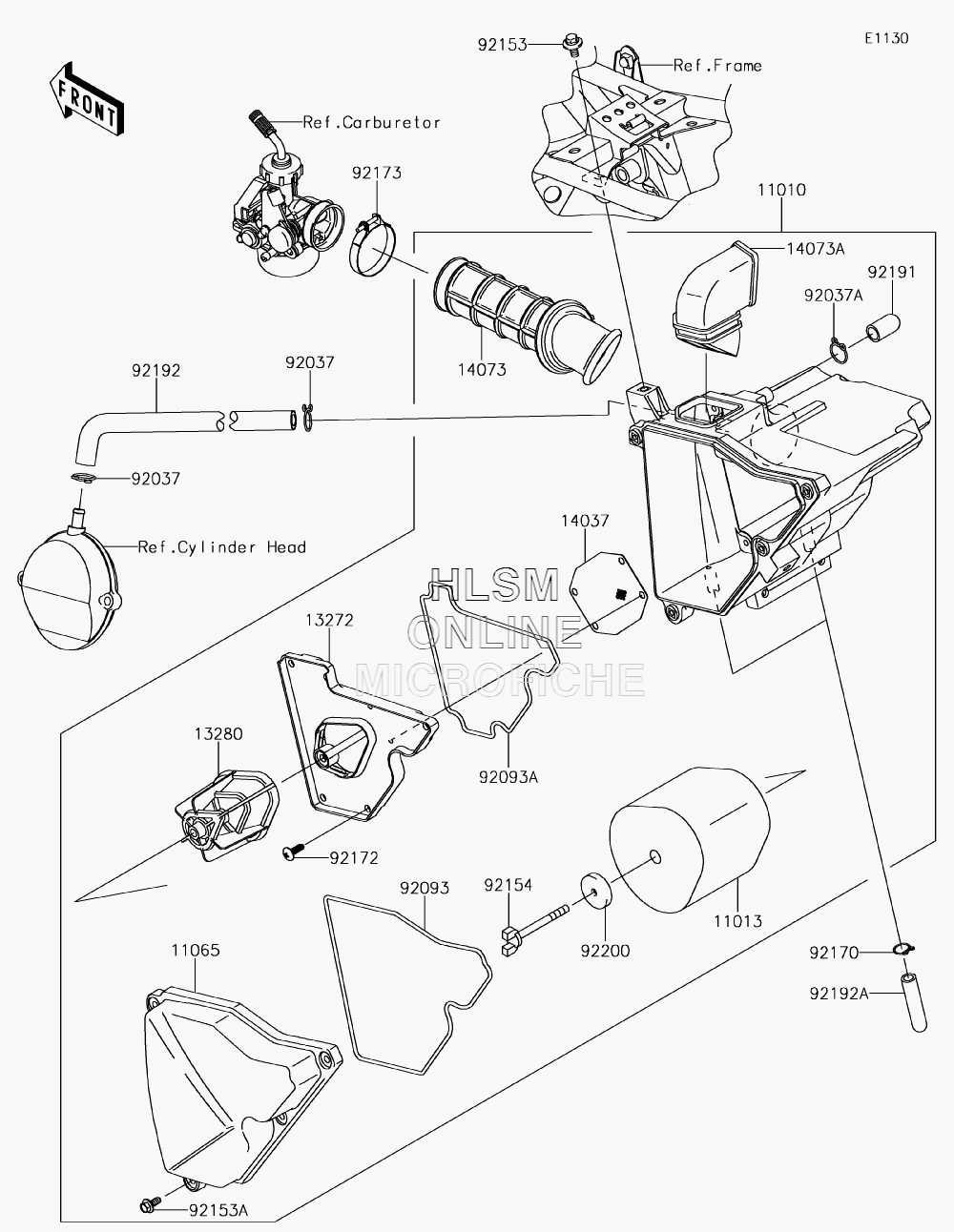

AIR CLEANER для Kawasaki KLX140L (KLX140BHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1101011010-0849-6Z FILTER-ASSY-AIR, (F.BLACK)FILTER-ASSY-AIR, (F.BLACK)
-
1101311013-0025 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1106511065-0210 CAPCAP
-
1327213272-1883 PLATEPLATE
-
1328013280-0831 HOLDERHOLDER
-
1403714037-0074 SCREENSCREEN
-
1407314073-0171 DUCT, CARB.DUCT, CARB.
-
14073A14073-0791 DUCT, INTAKEDUCT, INTAKE
-
9203792037-1271 CLAMP, 12.5MMCLAMP, 12.5MM
-
92037A92037-1900 CLAMP, 14.5MMCLAMP, 14.5MM
-
9209392093-0094 SEAL, L=620SEAL, L=620
-
92093A92093-0103 SEAL, L=520SEAL, L=520
-
9215392153-0936 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92153A92153-1882 BOLT, WP, 5X14BOLT, WP, 5X14
-
9215492154-2790 BOLT, 6X60BOLT, 6X60
-
9217092170-1796 CLAMP, 11.6MMCLAMP, 11.6MM
-
9217292172-1211 SCREW, 5X16SCREW, 5X16
-
9217392173-0991 CLAMPCLAMP
-
9219192191-1685 TUBE, DRAINTUBE, DRAIN
-
9219292192-0473 TUBE, BREATHERTUBE, BREATHER
-
92192A92192-0921 TUBE, A/C-DRAINTUBE, A/C-DRAIN
-
9220092200-0394 WASHER, 6.5X26X2WASHER, 6.5X26X2
