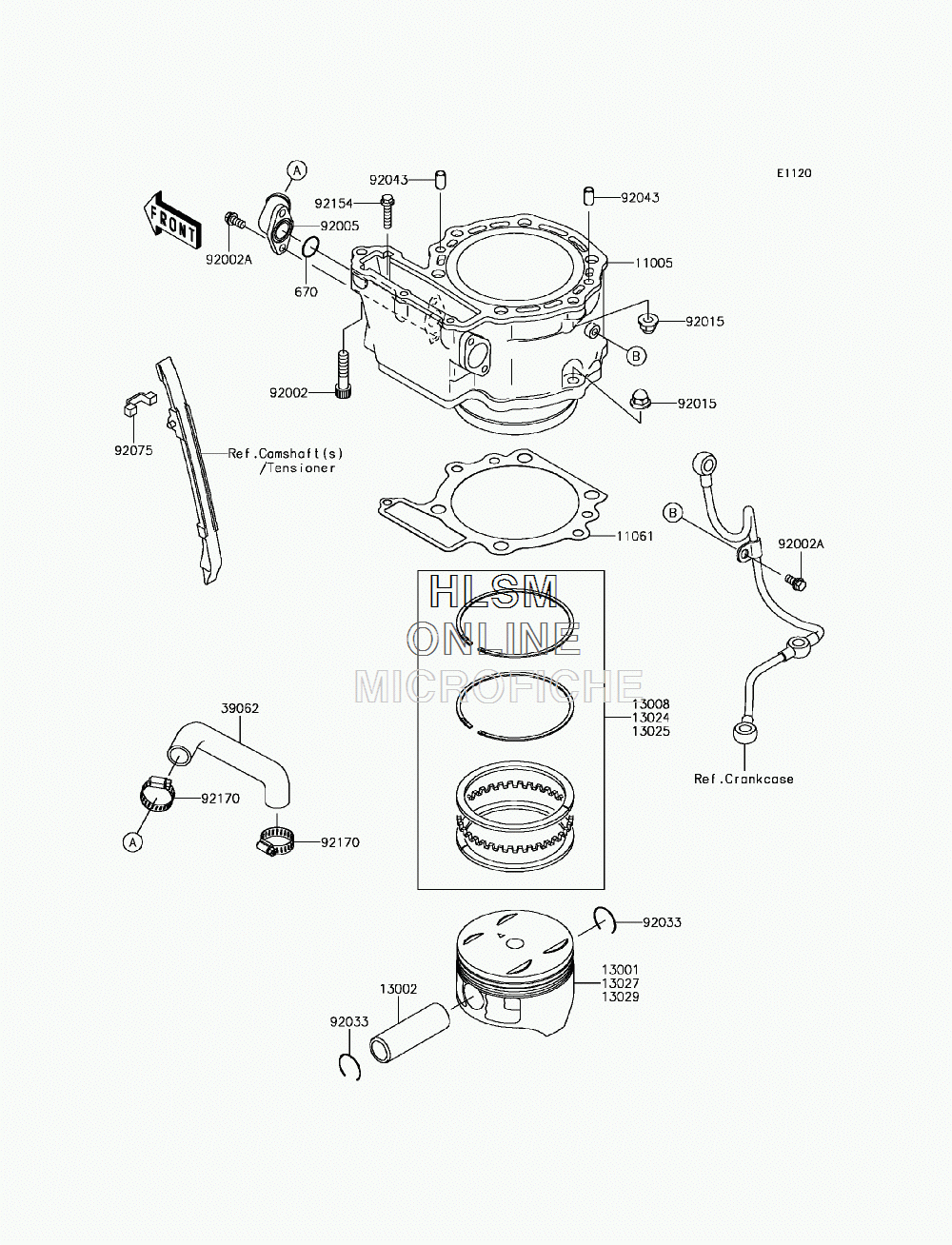

CYLINDER - PISTON(S) для Kawasaki KLR650 (KL650EHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 670
    670B2018 O RING, 18MM
    O RING, 18MM
  • 11005
    11005-0584 CYLINDER-ENGINE
    CYLINDER-ENGINE
  • 11061
    11061-0428 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-0723 PISTON-ENGINE
    PISTON-ENGINE
  • 13002
    13002-0707 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-0554 RING-SET-PISTON
    RING-SET-PISTON
  • 13024
    13024-0552 RING-SET-PISTON LL, O/S 1.00 (OPT)
    RING-SET-PISTON LL, O/S 1.00 (OPT)
  • 13025
    13025-0055 RING-SET-PISTON L, O/S 0.50 (OPT)
    RING-SET-PISTON L, O/S 0.50 (OPT)
  • 13027
    13027-0055 PISTON-ENGINE LL, O/S 1.00 (OPT)
    PISTON-ENGINE LL, O/S 1.00 (OPT)
  • 13029
    13029-0707 PISTON-ENGINE L, O/S 0.50 (OPT)
    PISTON-ENGINE L, O/S 0.50 (OPT)
  • 39062
    39062-0150 HOSE-COOLING, W/P-CYLINDER
    HOSE-COOLING, W/P-CYLINDER
  • 92002
    92002-1409 BOLT, SOCKET, 8X35
    BOLT, SOCKET, 8X35
  • 92002A
    92002-1569 BOLT, 6X12
    BOLT, 6X12
  • 92005
    92005-1122 FITTING
    FITTING
  • 92015
    92015-1982 NUT, CAP, 8MM
    NUT, CAP, 8MM
  • 92033
    92033-1226 RING-SNAP
    RING-SNAP
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92075
    92075-1968 DAMPER
    DAMPER
  • 92154
    92154-1212 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92170
    92170-1033 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
