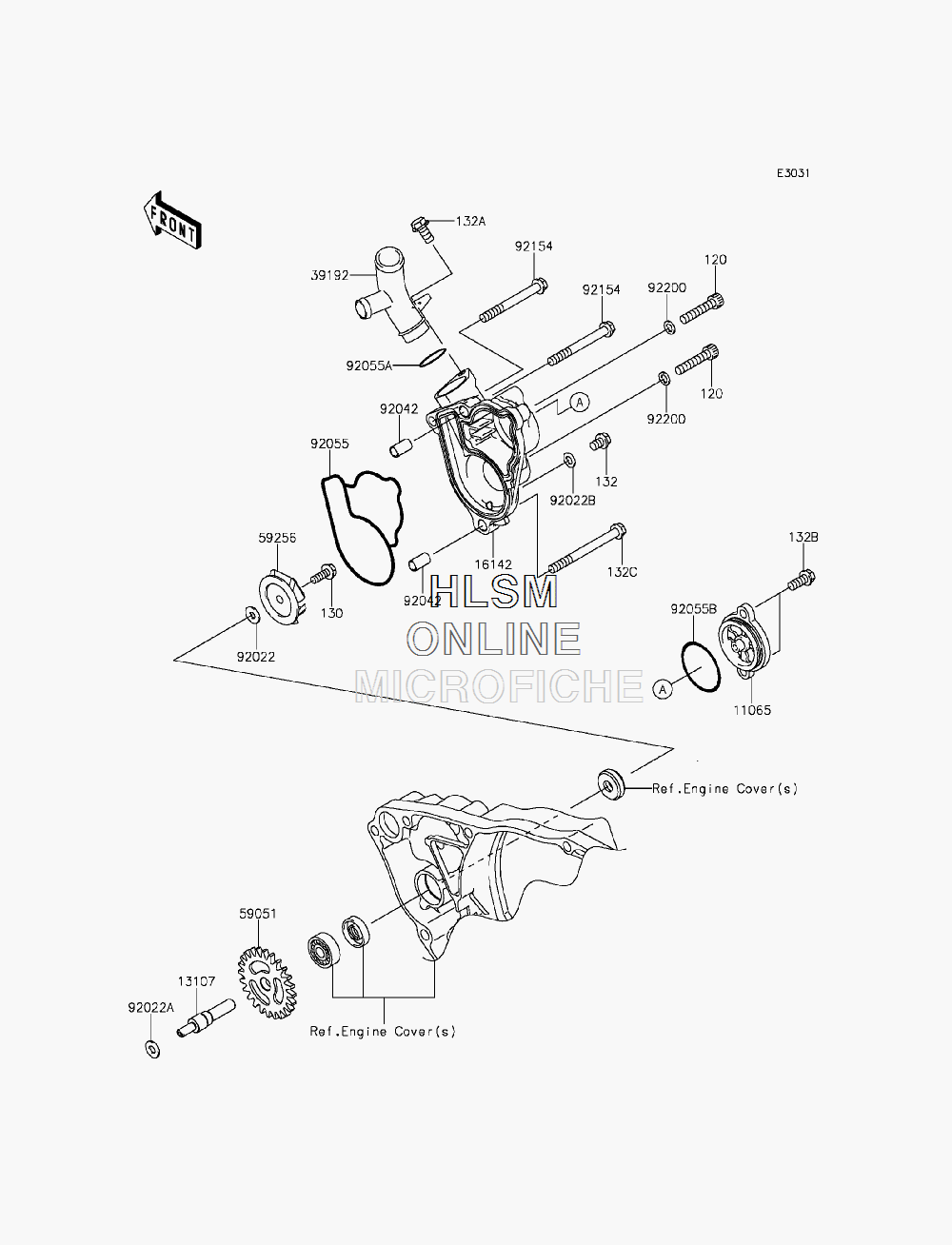

WATER PUMP для Kawasaki KX250F (KX250ZGF) - 2016 года выпуска`
-
№АртикулНазвание
-
120120CA0630 BOLT-SOCKET,6X30BOLT-SOCKET,6X30
-
130130CD0514 BOLT-FLANGED,5X14BOLT-FLANGED,5X14
-
132132BA0608 BOLT-FLANGED-SMALL,6X8BOLT-FLANGED-SMALL,6X8
-
132A132BA0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132B132BA0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
132C132BA0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
1106511065-0087 CAPCAP
-
1310713107-0196 SHAFT,WATER PUMPSHAFT,WATER PUMP
-
1614216142-0020 COVER-PUMP,WATERCOVER-PUMP,WATER
-
3919239192-0037 PIPE-WATERPIPE-WATER
-
5905159051-0061 GEAR-SPUR,WATER PUMPGEAR-SPUR,WATER PUMP
-
5925659256-1065 IMPELLERIMPELLER
-
9202292022-1380 WASHER,5.2X13X1WASHER,5.2X13X1
-
92022A92022-1827 WASHER,6X12.8X1.2WASHER,6X12.8X1.2
-
92022B92022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9205592055-0010 RING-O,WATER PUMPRING-O,WATER PUMP
-
92055A92055-1308 RING-O,18.8X2.4RING-O,18.8X2.4
-
92055B92055-520 RING-O,35.2X1.9RING-O,35.2X1.9
-
9215492154-0532 BOLT,FLANGED,6X55BOLT,FLANGED,6X55
-
9220092200-0190 WASHER,6.1X10.0X1.0WASHER,6.1X10.0X1.0
