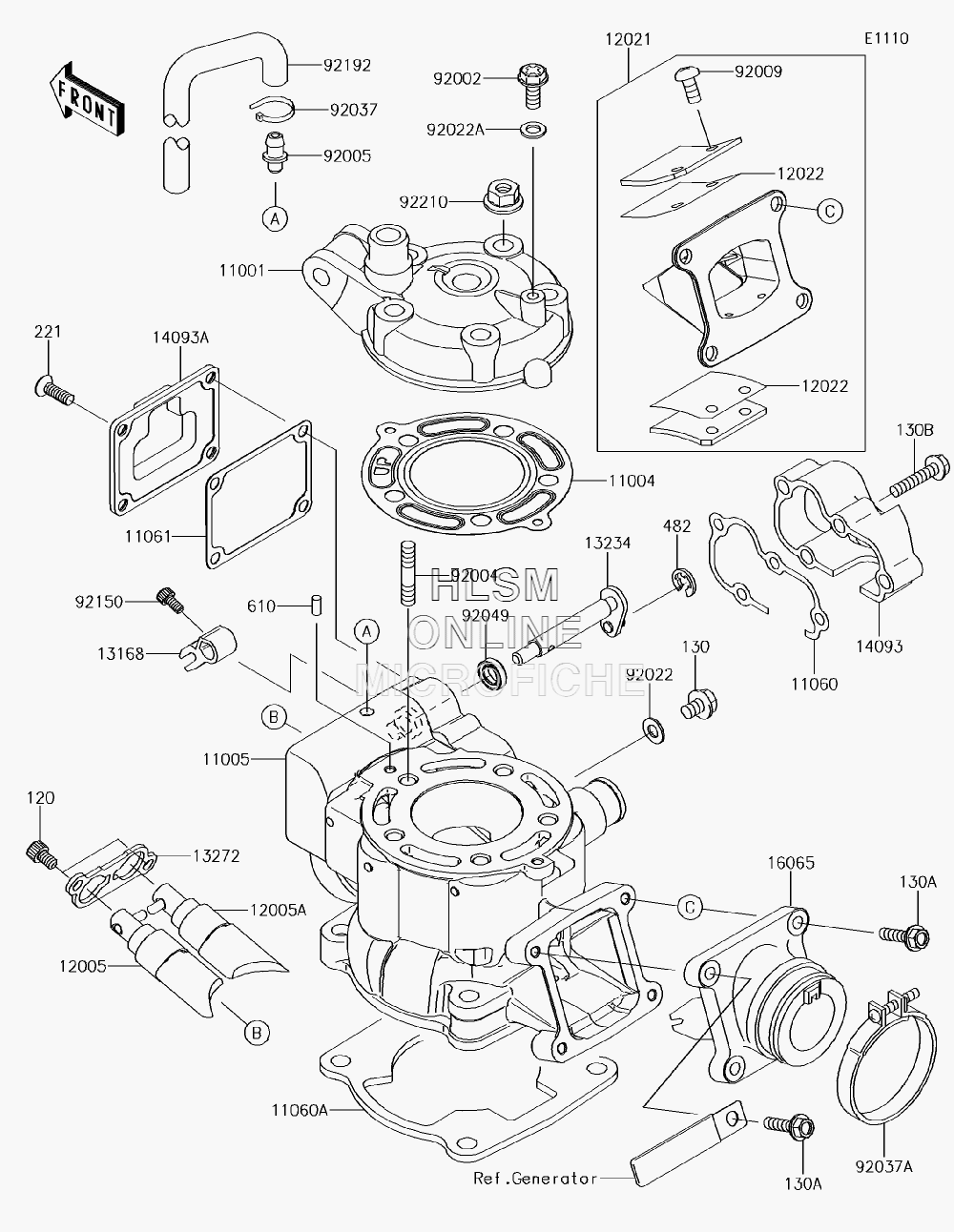

CYLINDER HEAD W/CYLINDER для Kawasaki KX100 (KX100FGF) - 2016 года выпуска
-
№АртикулНазвание
-
1100111001-0774 HEAD-CYLINDERHEAD-CYLINDER
-
1100411004-0739 GASKET-HEADGASKET-HEAD
-
1100511005-0626 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1778 GASKET, GOVERNOR COVERGASKET, GOVERNOR COVER
-
11060A11060-1779 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1106111061-0889 GASKETGASKET
-
120120CA0510 BOLT-SOCKET, 5X10BOLT-SOCKET, 5X10
-
1200512005-0731 VALVE-EXHAUSTVALVE-EXHAUST
-
12005A12005-0733 VALVE-EXHAUSTVALVE-EXHAUST
-
1202112021-1123 VALVE-ASSY-REEDVALVE-ASSY-REED
-
1202212022-1084 VALVE-REEDVALVE-REED
-
130130AA0608 BOLT-FLANGED, 6X8BOLT-FLANGED, 6X8
-
130A130BA0520 BOLT-FLANGED, 5X20BOLT-FLANGED, 5X20
-
130B130BA0525 BOLT-FLANGED, 5X25BOLT-FLANGED, 5X25
-
1316813168-0779 LEVERLEVER
-
1323413234-0048 SHAFT-COMPSHAFT-COMP
-
1327213272-1450 PLATEPLATE
-
1409314093-0003 COVERCOVER
-
14093A14093-0046 COVERCOVER
-
1606516065-1372 HOLDER-CARBURETORHOLDER-CARBURETOR
-
221221AA0512 SCREW-CSK-CROS, 5X12SCREW-CSK-CROS, 5X12
-
482482J5000 CIRCLIP-TYPE-E, 5MMCIRCLIP-TYPE-E, 5MM
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9200292002-1222 BOLT, 6X10BOLT, 6X10
-
9200492004-1253 STUD, 8X33STUD, 8X33
-
9200592005-0050 FITTINGFITTING
-
9200992009-1014 SCREW, REED VALVESCREW, REED VALVE
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1173 CLAMPCLAMP
-
92037A92037-1843 CLAMPCLAMP
-
9204992049-1238 SEAL-OIL, SD088144SEAL-OIL, SD088144
-
9215092150-1888 BOLT, SOCKET, 4X8BOLT, SOCKET, 4X8
-
9219292192-0265 TUBE, L=426.3TUBE, L=426.3
-
9221092210-0076 NUT, 8MMNUT, 8MM
