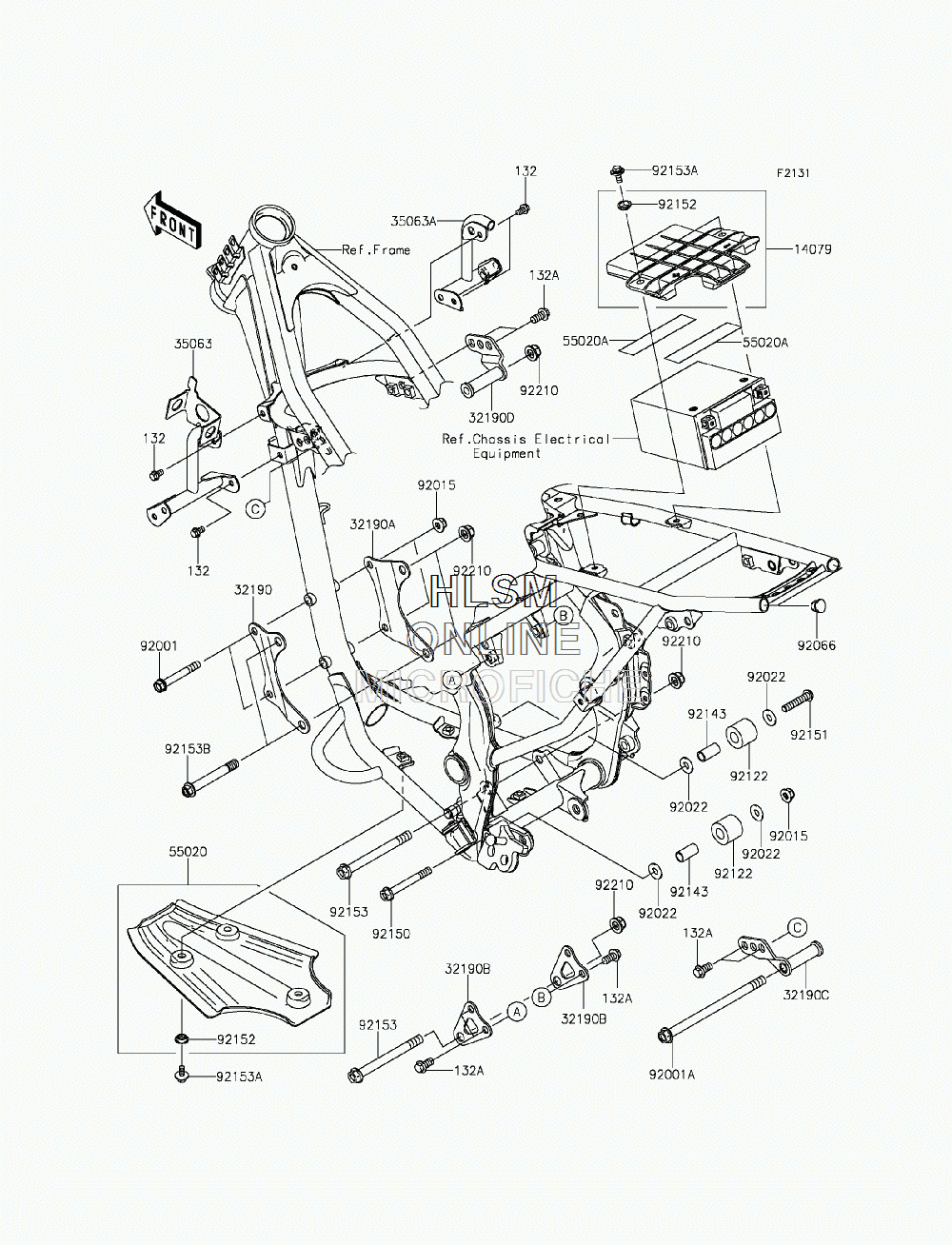

FRAME FITTING(S) для Kawasaki KLX140L (KLX140BGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0610 BOLT-FLANGED-SMALL,6X10
    BOLT-FLANGED-SMALL,6X10
  • 132A
    132BA0816 BOLT-FLANGED-SMALL,8X16
    BOLT-FLANGED-SMALL,8X16
  • 14079
    14079-0031 HOLDER-ASSY,BATTERY
    HOLDER-ASSY,BATTERY
  • 32190
    32190-0308 BRACKET-ENGINE, FRONT, LEFT HAND
    BRACKET-ENGINE, FRONT, LEFT HAND
  • 32190A
    32190-0309 BRACKET-ENGINE, FRONT, RIGHT HAND
    BRACKET-ENGINE, FRONT, RIGHT HAND
  • 32190B
    32190-0310 BRACKET-ENGINE, REAR
    BRACKET-ENGINE, REAR
  • 32190C
    32190-0311 BRACKET-ENGINE,HEAD, LEFT HAND
    BRACKET-ENGINE,HEAD, LEFT HAND
  • 32190D
    32190-0312 BRACKET-ENGINE,HEAD, RIGHT HAND
    BRACKET-ENGINE,HEAD, RIGHT HAND
  • 35063
    35063-0415-458 STAY,SHROUD, LEFT HAND,(P.SILVER)
    STAY,SHROUD, LEFT HAND,(P.SILVER)
  • 35063A
    35063-0416-458 STAY,SHROUD, RIGHT HAND,(P.SILVER)
    STAY,SHROUD, RIGHT HAND,(P.SILVER)
  • 55020
    55020-0409 GUARD
    GUARD
  • 55020A
    55020-0429 GUARD
    GUARD
  • 92001
    92001-1581 BOLT,FLANGED,8X60
    BOLT,FLANGED,8X60
  • 92001A
    92001-1653 BOLT,FLANGED,10X160
    BOLT,FLANGED,10X160
  • 92015
    92015-1432 NUT,8MM
    NUT,8MM
  • 92022
    92022-1561 WASHER,8.5X20X1.6
    WASHER,8.5X20X1.6
  • 92066
    92066-1034 PLUG, FRAME END,12X13
    PLUG, FRAME END,12X13
  • 92122
    92122-0023 ROLLER,CHAIN GUIDE
    ROLLER,CHAIN GUIDE
  • 92143
    92143-1432 COLLAR,9.5X12.7X25
    COLLAR,9.5X12.7X25
  • 92150
    92150-1036 BOLT,FLANGED,8X65
    BOLT,FLANGED,8X65
  • 92151
    92151-1205 BOLT,SOCKET,8X40
    BOLT,SOCKET,8X40
  • 92152
    92152-0909 COLLAR,8.8X11.2X4
    COLLAR,8.8X11.2X4
  • 92153
    92153-0614 BOLT,FLANGED,10X105
    BOLT,FLANGED,10X105
  • 92153A
    92153-0936 BOLT,FLANGED,6X14
    BOLT,FLANGED,6X14
  • 92153B
    92153-1613 BOLT,FLANGED,10X77
    BOLT,FLANGED,10X77
  • 92210
    92210-1080 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
