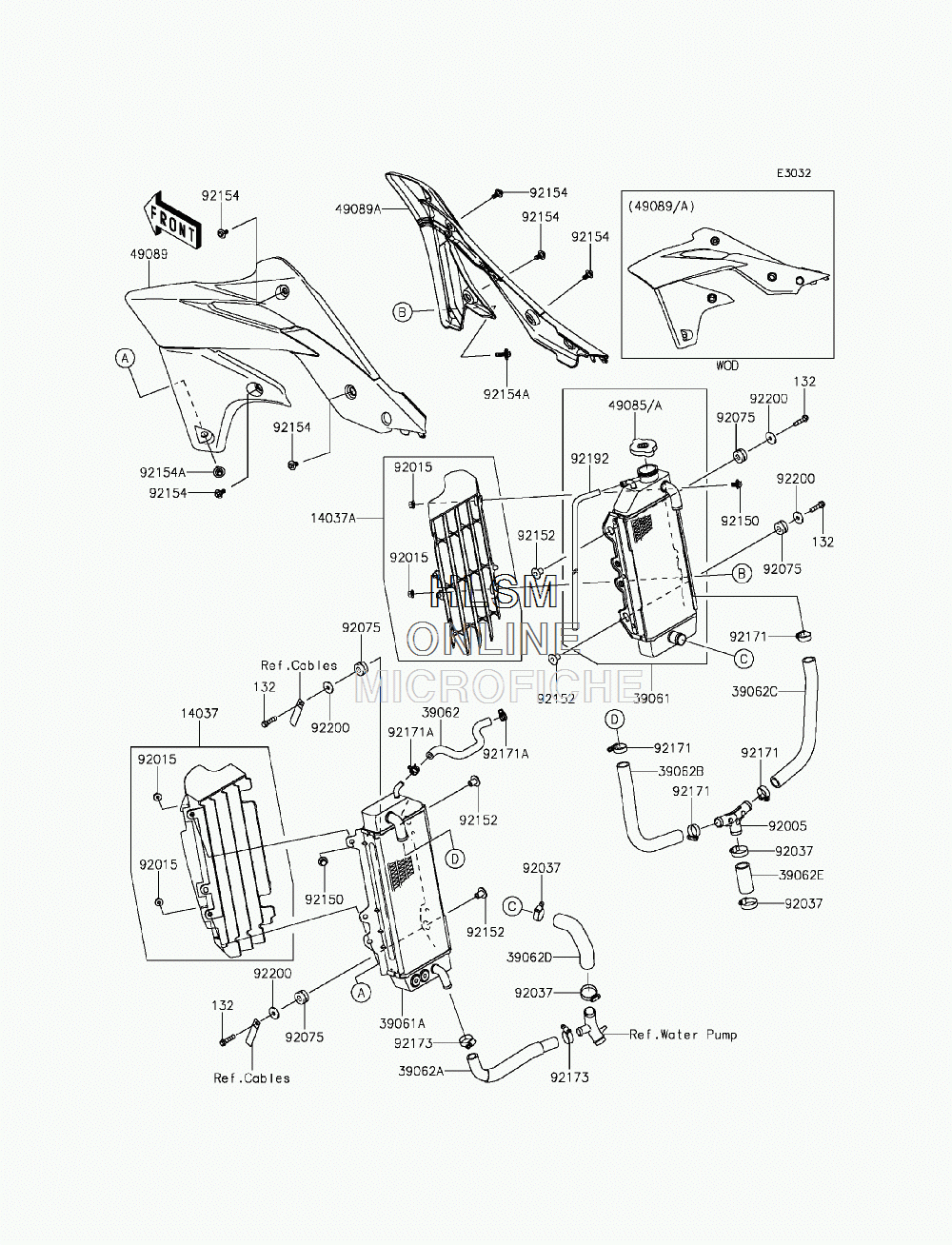

RADIATOR для Kawasaki KX250F (KX250ZFF) - 2015 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0625 BOLT-FLANGED-SMALL,6X25
    BOLT-FLANGED-SMALL,6X25
  • 14037
    14037-0744-6C SCREEN, LEFT HAND,(EBONY)
    SCREEN, LEFT HAND,(EBONY)
  • 14037A
    14037-0745-6C SCREEN, RIGHT HAND,(EBONY)
    SCREEN, RIGHT HAND,(EBONY)
  • 39061
    39061-0168 RADIATOR-ASSY, RIGHT HAND
    RADIATOR-ASSY, RIGHT HAND
  • 39061A
    39061-0190 RADIATOR-ASSY, LEFT HAND
    RADIATOR-ASSY, LEFT HAND
  • 39062
    39062-0258 HOSE-COOLING,RAD.LEFT HAND-RAD.RIGHT HAND
    HOSE-COOLING,RAD.LEFT HAND-RAD.RIGHT HAND
  • 39062A
    39062-0292 HOSE-COOLING,RAD.LEFT HAND-W/P
    HOSE-COOLING,RAD.LEFT HAND-W/P
  • 39062B
    39062-0294 HOSE-COOLING,RAD.LEFT HAND-FIT.
    HOSE-COOLING,RAD.LEFT HAND-FIT.
  • 39062C
    39062-0295 HOSE-COOLING,RAD.RIGHT HAND-FIT.
    HOSE-COOLING,RAD.RIGHT HAND-FIT.
  • 39062D
    39062-0689 HOSE-COOLING,RAD.RIGHT HAND-W/P
    HOSE-COOLING,RAD.RIGHT HAND-W/P
  • 39062E
    39062-0690 HOSE-COOLING,18X24X50
    HOSE-COOLING,18X24X50
  • 49085
    49085-1070 CAP-ASSY-PRESSURE,P1.1
    CAP-ASSY-PRESSURE,P1.1
  • 49085A
    49085-1073 CAP-ASSY-PRESSURE,P1.6 (OPTION)
    CAP-ASSY-PRESSURE,P1.6 (OPTION)
  • 49089
    49089-0832-25M SHROUD-ENGINE, LEFT HAND,(GREEN/EBONY)
    SHROUD-ENGINE, LEFT HAND,(GREEN/EBONY)
  • 49089A
    49089-0833-25M SHROUD-ENGINE, RIGHT HAND,(GREEN/EBONY)
    SHROUD-ENGINE, RIGHT HAND,(GREEN/EBONY)
  • 92005
    92005-0101 FITTING
    FITTING
  • 92015
    92015-1367 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
  • 92037
    92037-1589 CLAMP,COOLING HOSE
    CLAMP,COOLING HOSE
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1435 BOLT,6X12
    BOLT,6X12
  • 92152
    92152-0666 COLLAR
    COLLAR
  • 92154
    92154-0546 BOLT,FLANGED,6X9
    BOLT,FLANGED,6X9
  • 92154A
    92154-0915 BOLT,FLANGED,6X20
    BOLT,FLANGED,6X20
  • 92171
    92171-0338 CLAMP
    CLAMP
  • 92171A
    92171-0372 CLAMP,CLIP,12.5MM
    CLAMP,CLIP,12.5MM
  • 92173
    92173-1401 CLAMP
    CLAMP
  • 92192
    92192-0167 TUBE,6X9X640
    TUBE,6X9X640
  • 92200
    92200-0271 WASHER,6.5X22X2.3
    WASHER,6.5X22X2.3
