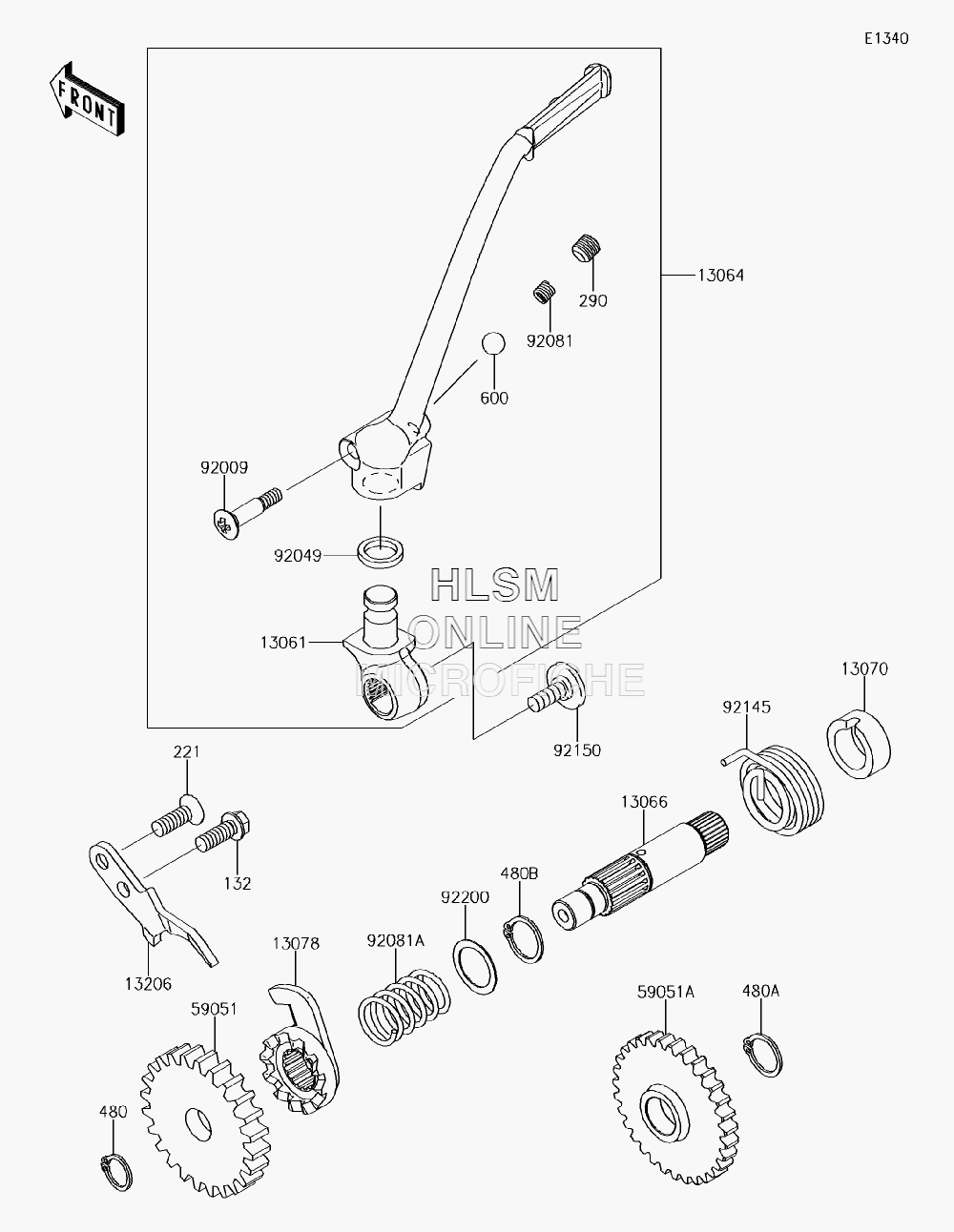

KICKSTARTER MECHANISM для Kawasaki KX100 (KX100FFF) - 2015 года выпуска`
-
№АртикулНазвание
-
1306113061-1712 BOSS, KICK PEDALBOSS, KICK PEDAL
-
1306413064-0073 LEVER-ASSY-KICK, PEDALLEVER-ASSY-KICK, PEDAL
-
1306613066-1097 SHAFT-KICKSHAFT-KICK
-
1307013070-1314 GUIDEGUIDE
-
1307813078-1004 RATCHETRATCHET
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
1320613206-1066 GUIDE-KICKGUIDE-KICK
-
221221AA0618 SCREW-CSK-CROS, 6X18SCREW-CSK-CROS, 6X18
-
290290CA0808 SCREW-SET-SOCKET, 8X8SCREW-SET-SOCKET, 8X8
-
480480J1200 CIRCLIP-TYPE-C, 12MMCIRCLIP-TYPE-C, 12MM
-
480A480J1500 CIRCLIP-TYPE-C, 15MMCIRCLIP-TYPE-C, 15MM
-
480B480J1600 CIRCLIP-TYPE-C, 16MMCIRCLIP-TYPE-C, 16MM
-
5905159051-1026 GEAR-SPUR, 32TGEAR-SPUR, 32T
-
59051A59051-1147 GEAR-SPUR, 31T, KICKGEAR-SPUR, 31T, KICK
-
600600A0800 BALL-STEEL, 1/4BALL-STEEL, 1/4
-
9200992009-1607 SCREW, 6X27SCREW, 6X27
-
9204992049-1468 SEAL-OIL, SR12162.5SEAL-OIL, SR12162.5
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
92081A92081-122 SPRING, RATCHETSPRING, RATCHET
-
9214592145-1058 SPRINGSPRING
-
9215092150-1673 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9220092200-1209 WASHER, KICKSHAFTWASHER, KICKSHAFT
