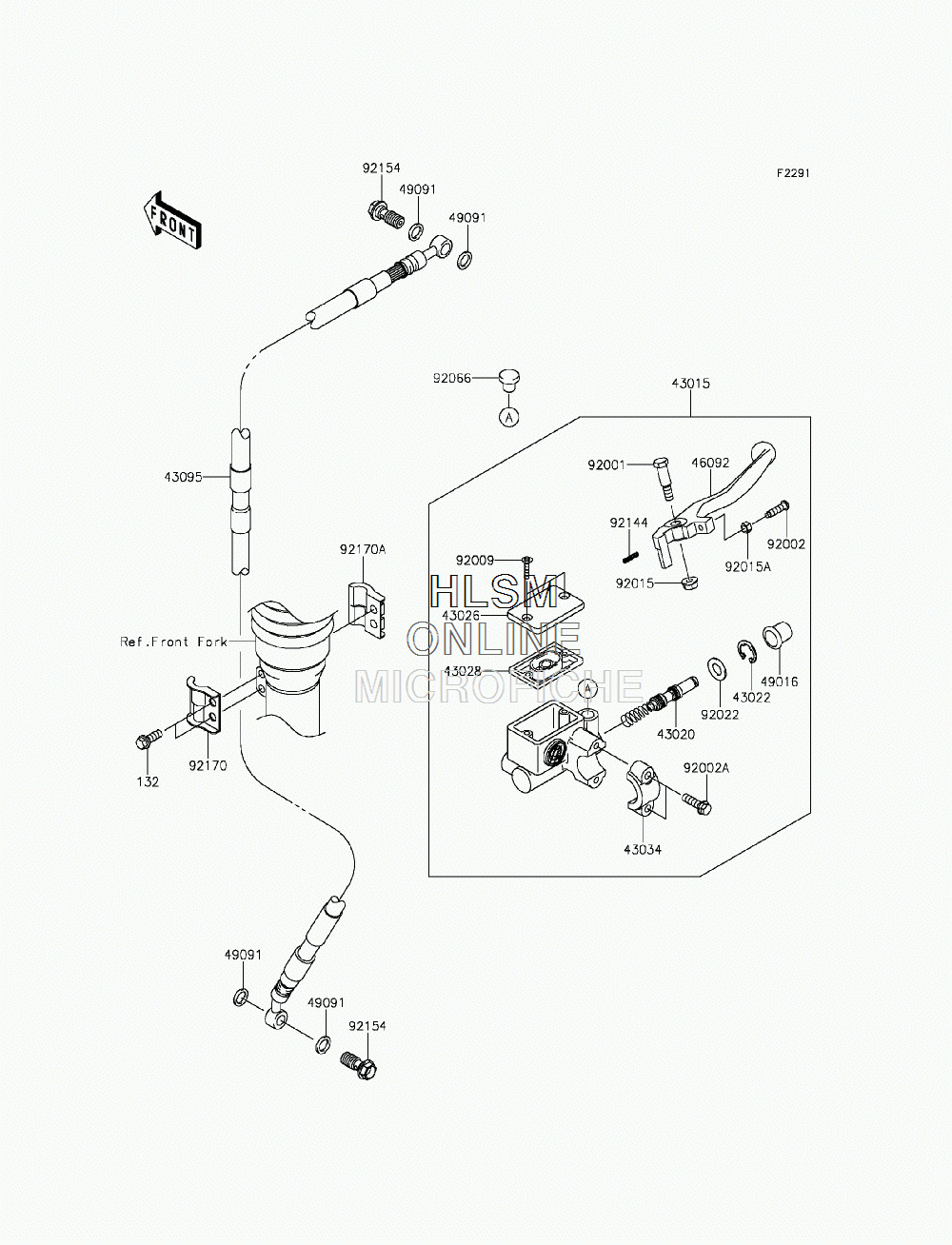

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX140L (KLX140BFF) - 2015 года выпуска`
-
№АртикулНазвание
-
132132BA0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
4301543015-0106 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1065 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE,MASTER CYLINDERHOLDER-BRAKE,MASTER CYLINDER
-
4309543095-0335 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4609246092-1175 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1893 BOLT,ADJUSTBOLT,ADJUST
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1233 NUT,FLANGED,6MM,(BLACK)NUT,FLANGED,6MM,(BLACK)
-
92015A92015-1642 NUT,ADJUSTNUT,ADJUST
-
9202292022-1814 WASHERWASHER
-
9206692066-1348 PLUGPLUG
-
9214492144-1103 SPRING, RETURNSPRING, RETURN
-
9215492154-0226 BOLT,OIL,L=23BOLT,OIL,L=23
-
9217092170-1231 CLAMP,BRAKE HOSE,OUTSIDECLAMP,BRAKE HOSE,OUTSIDE
-
92170A92170-1232 CLAMP,BRAKE HOSE,INSIDECLAMP,BRAKE HOSE,INSIDE
