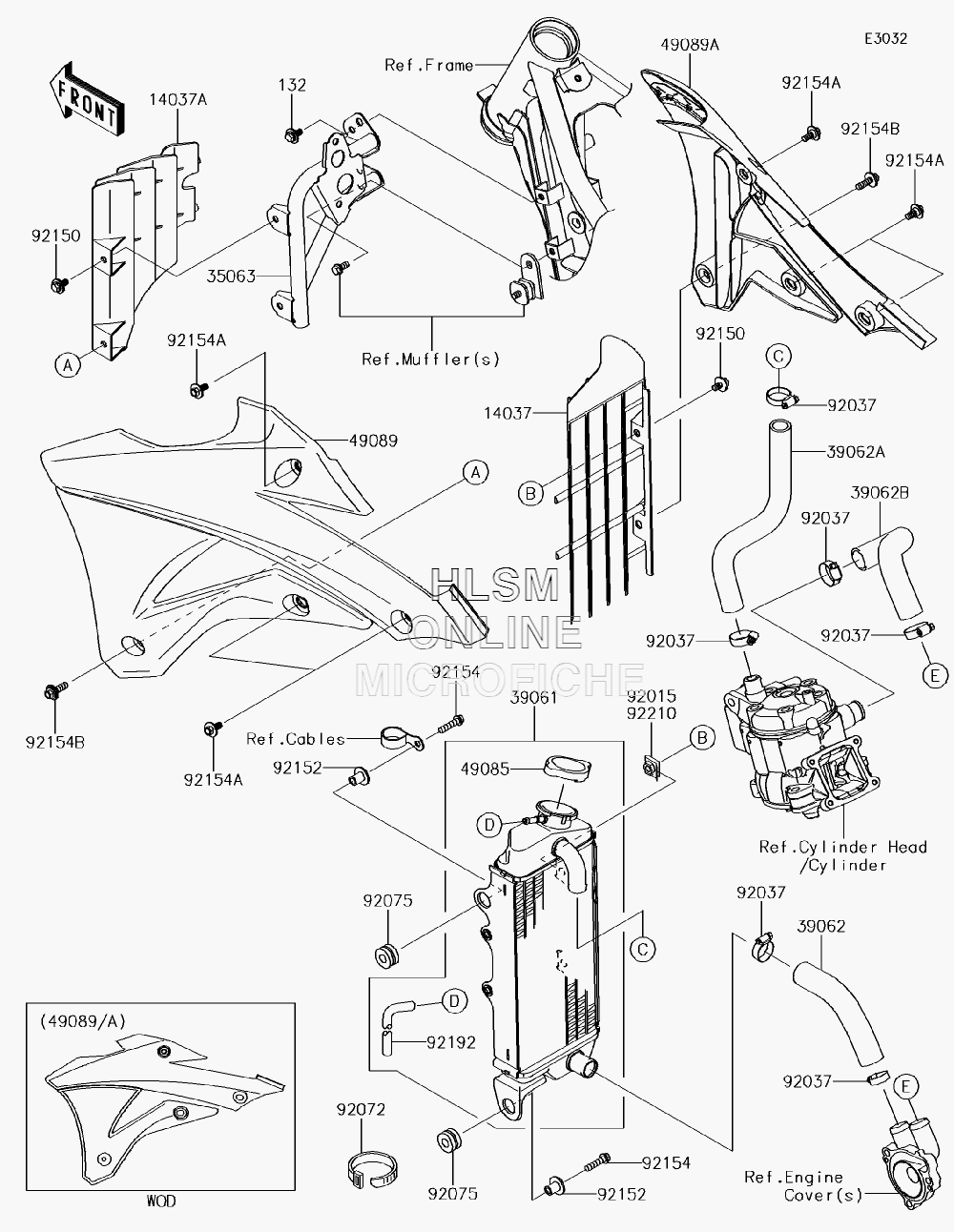

RADIATOR для Kawasaki KX85 (KX85CEF) - 2014 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 14037
    14037-0748-6C SCREEN, RIGHT HAND, (EBONY) (FOR 777)
    SCREEN, RIGHT HAND, (EBONY) (FOR 777)
  • 14037A
    14037-1282-6C SCREEN, LEFT HAND, (EBONY) (FOR 777)
    SCREEN, LEFT HAND, (EBONY) (FOR 777)
  • 35063
    35063-1137 STAY
    STAY
  • 39061
    39061-0592 RADIATOR-ASSY
    RADIATOR-ASSY
  • 39062
    39062-0646 HOSE-COOLING, RADIATOR-PUMP
    HOSE-COOLING, RADIATOR-PUMP
  • 39062A
    39062-1425 HOSE-COOLING, HEAD-RADIATOR
    HOSE-COOLING, HEAD-RADIATOR
  • 39062B
    39062-1712 HOSE-COOLING, CYLINDER PUMP
    HOSE-COOLING, CYLINDER PUMP
  • 49085
    49085-0006 CAP-ASSY-PRESSURE
    CAP-ASSY-PRESSURE
  • 49089
    49089-0816-25M SHROUD-ENGINE, LEFT HAND, (UPPER GREEN + LOWER EBONY) (FOR 777)
    SHROUD-ENGINE, LEFT HAND, (UPPER GREEN + LOWER EBONY) (FOR 777)
  • 49089A
    49089-0817-25M SHROUD-ENGINE, RIGHT HAND, (UPPER GREEN + LOWER EBONY) (FOR 777)
    SHROUD-ENGINE, RIGHT HAND, (UPPER GREEN + LOWER EBONY) (FOR 777)
  • 92015
    92015-1487 NUT
    NUT
  • 92037
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92072
    92072-056 BAND, L=186
    BAND, L=186
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92152
    92152-0666 COLLAR
    COLLAR
  • 92154
    92154-0520 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92154A
    92154-0546 BOLT, FLANGED, 6X9
    BOLT, FLANGED, 6X9
  • 92154B
    92154-1268 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92192
    92192-1334 TUBE, 6X9X700
    TUBE, 6X9X700
