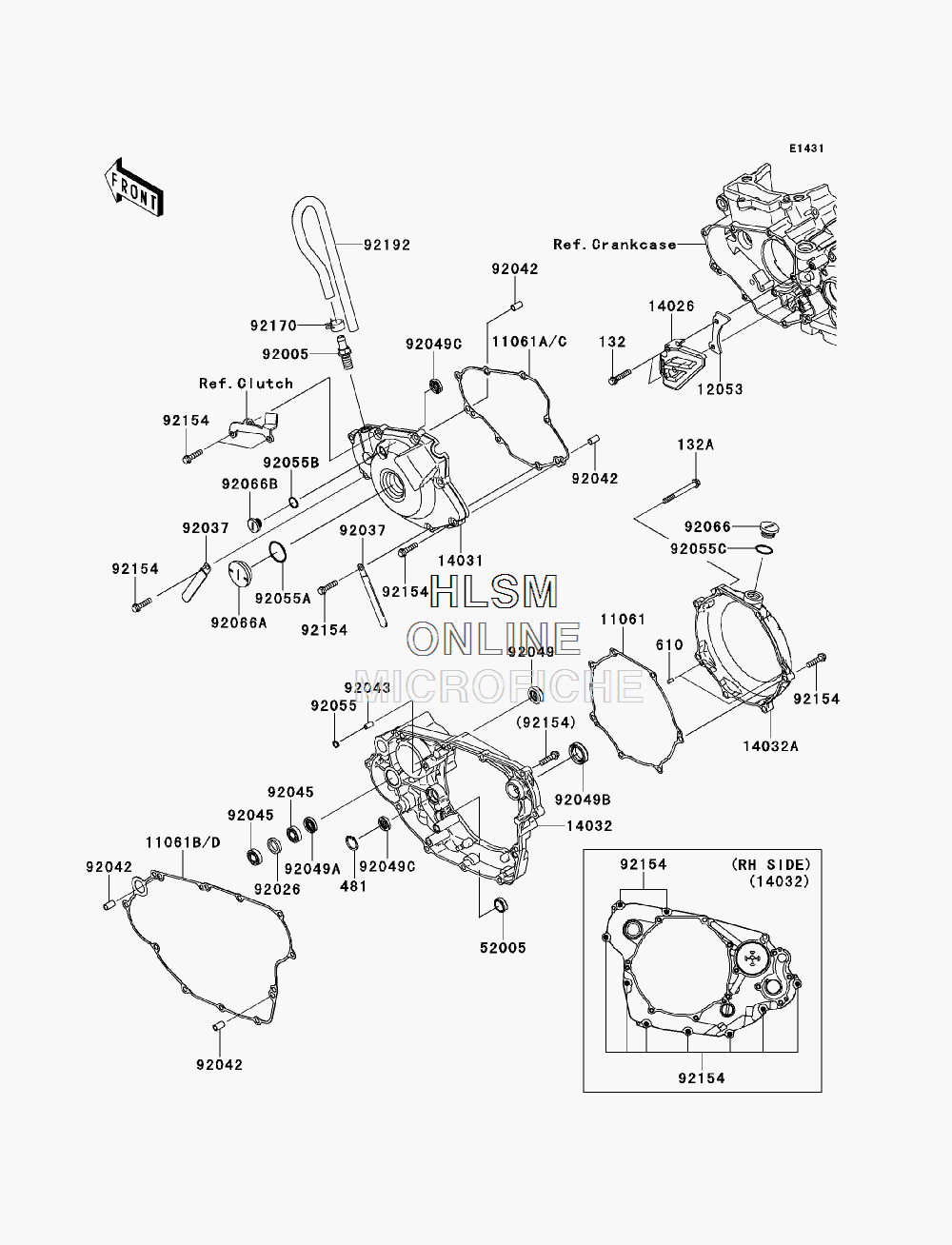

ENGINE COVER для Kawasaki KX450F (KX450FEF) - 2014 года выпуска`
-
№АртикулНазвание
-
132132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132A132BA0660 BOLT-FLANGED-SMALL, 6X60BOLT-FLANGED-SMALL, 6X60
-
481481J2000 CIRCLIP-TYPE-C, 20MMCIRCLIP-TYPE-C, 20MM
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1106111061-0259 GASKET, CLUTCH OUTER COVERGASKET, CLUTCH OUTER COVER
-
11061A11061-0452 GASKET, GENERATOR COVER (OPTION)GASKET, GENERATOR COVER (OPTION)
-
11061B11061-0453 GASKET, CLUTCH COVER (OPTION)GASKET, CLUTCH COVER (OPTION)
-
11061C11061-0852 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061D11061-0853 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1205312053-0187 GUIDE-CHAINGUIDE-CHAIN
-
1402614026-0065 COVER-CHAINCOVER-CHAIN
-
1403114031-0567 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0117 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
14032A14032-0571 COVER-CLUTCHCOVER-CLUTCH
-
5200552005-0019 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9200592005-0014 FITTING, BREATHERFITTING, BREATHER
-
9202692026-0064 SPACER, 16X22X4.3SPACER, 16X22X4.3
-
9203792037-1993 CLAMPCLAMP
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1262 PIN, 4.2X6X12PIN, 4.2X6X12
-
9204592045-0039 BEARING-BALL, 6900C3BEARING-BALL, 6900C3
-
9204992049-0040 SEAL-OIL, 12X24X7SEAL-OIL, 12X24X7
-
92049A92049-0041 SEAL-OIL, 12X22X5SEAL-OIL, 12X22X5
-
92049B92049-0134 SEAL-OIL, 20X30X7SEAL-OIL, 20X30X7
-
92049C92049-1542 SEAL-OIL, 10X20X5SEAL-OIL, 10X20X5
-
9205592055-0113 RING-ORING-O
-
92055A92055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
92055B92055-1011 RING-O, 13.0X1.9RING-O, 13.0X1.9
-
92055C92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0757 PLUG, 18X9PLUG, 18X9
-
92066A92066-0758 PLUG, 30X8PLUG, 30X8
-
92066B92066-0759 PLUG, 12X9.1PLUG, 12X9.1
-
9215492154-0530 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9217092170-1938 CLAMPCLAMP
-
9219292192-0944 TUBE, BREATHERTUBE, BREATHER
