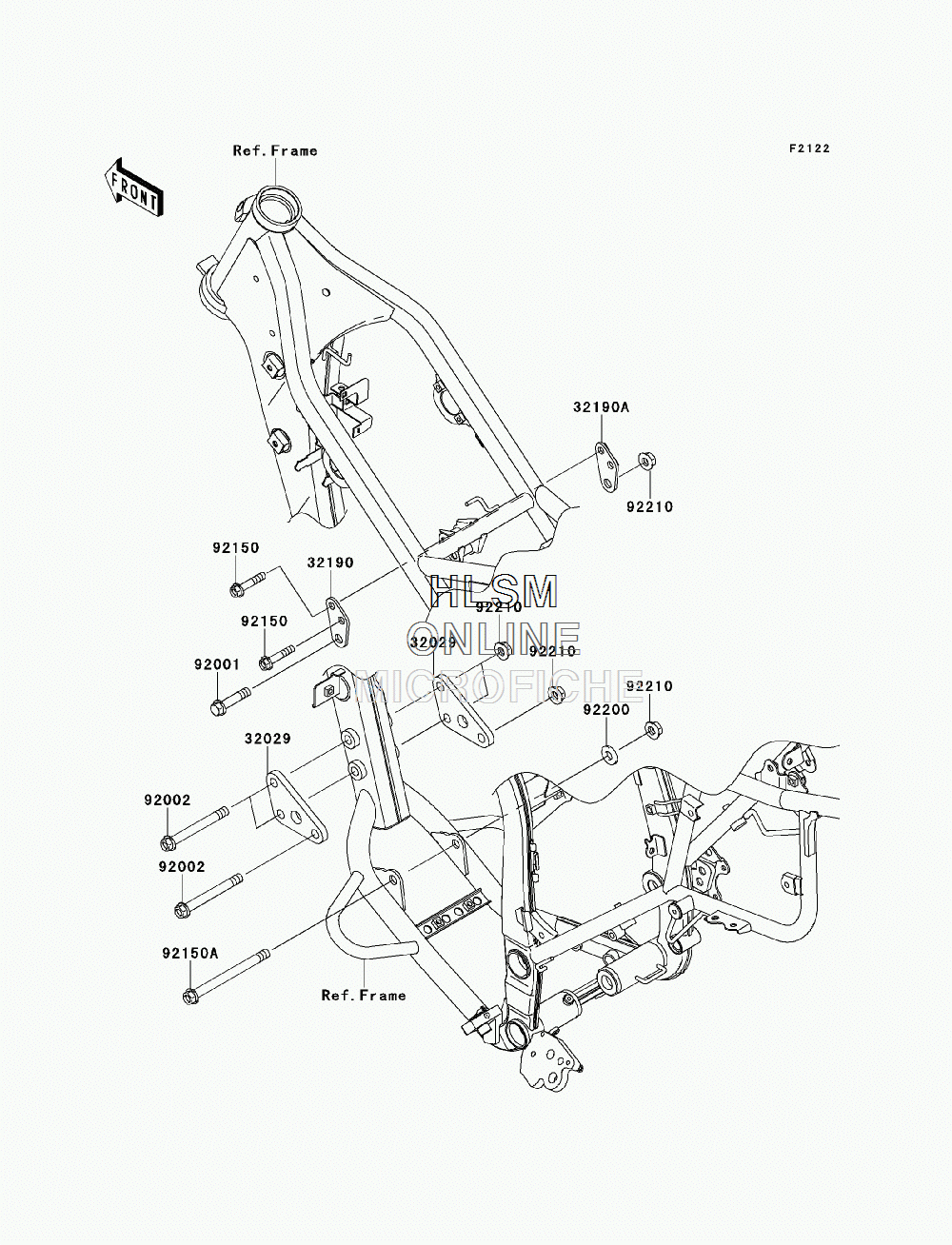

ENGINE MOUNT для Kawasaki KLX250S (KLX250TEF) - 2014 года выпуска`
-
№АртикулНазвание
-
3202932029-1855 BRACKET-ENGINE,FRONTBRACKET-ENGINE,FRONT
-
3219032190-0416 BRACKET-ENGINE, HEAD, LEFT HANDBRACKET-ENGINE, HEAD, LEFT HAND
-
32190A32190-0417 BRACKET-ENGINE, HEAD, RIGHT HANDBRACKET-ENGINE, HEAD, RIGHT HAND
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9200292002-1674 BOLT, 10X90BOLT, 10X90
-
9215092150-1168 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
92150A92150-1642 BOLT, FLANGED, 10X120BOLT, FLANGED, 10X120
-
9220092200-0211 WASHER, 10.2X23.0X2.5WASHER, 10.2X23.0X2.5
-
9221092210-1080 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
