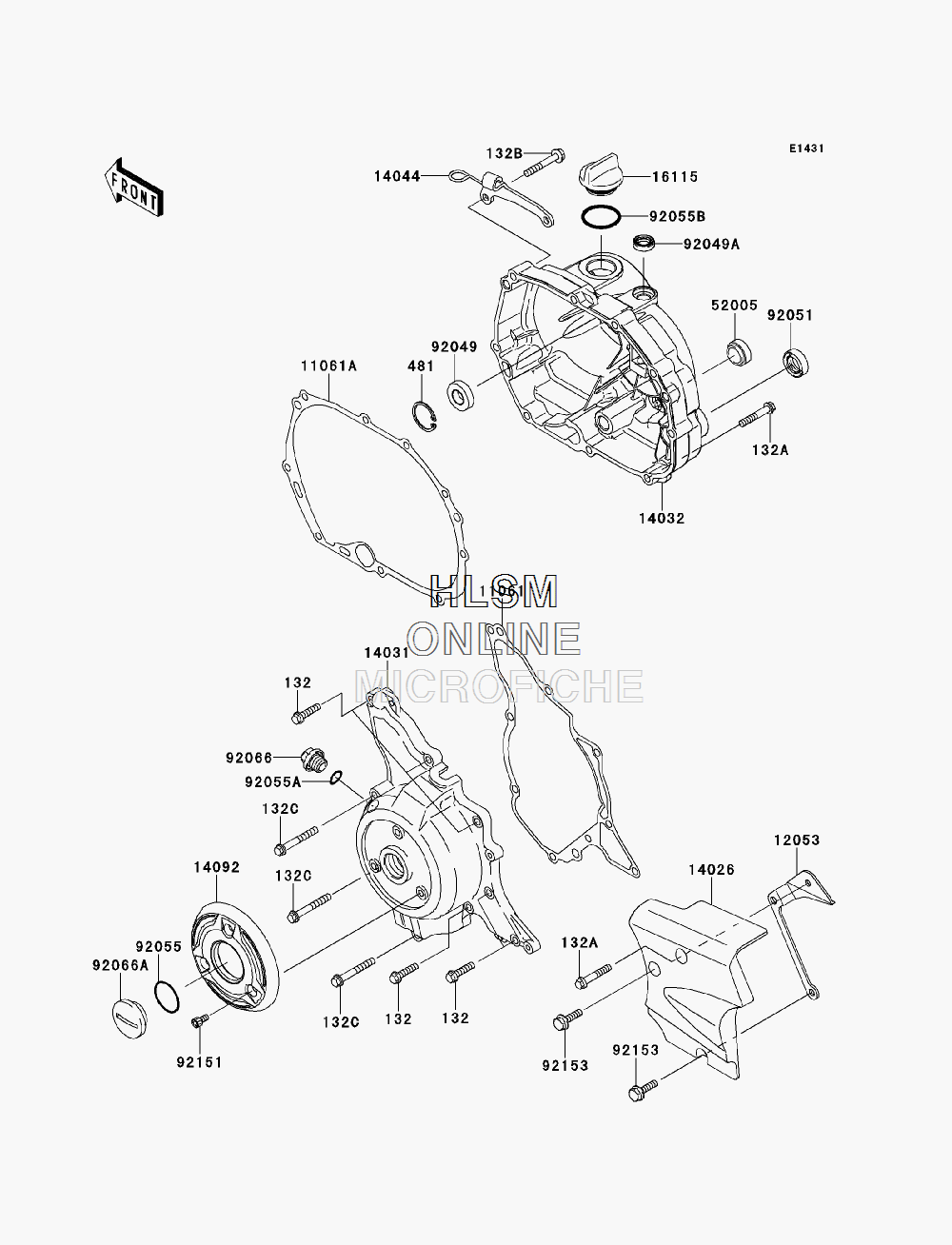

ENGINE COVER для Kawasaki KLX110L (KLX110DEF) - 2014 года выпуска

  • №
    Артикул
    Название
  • 132
    132BD0625 BOLT-FLANGED-SMALL, 6X25
    BOLT-FLANGED-SMALL, 6X25
  • 132A
    132BD0635 BOLT-FLANGED-SMALL, 6X35
    BOLT-FLANGED-SMALL, 6X35
  • 132B
    132BD0640 BOLT-FLANGED-SMALL, 6X40
    BOLT-FLANGED-SMALL, 6X40
  • 132C
    132BD0645 BOLT-FLANGED-SMALL, 6X45
    BOLT-FLANGED-SMALL, 6X45
  • 481
    481J2800 CIRCLIP-TYPE-C, 28MM
    CIRCLIP-TYPE-C, 28MM
  • 11061
    11061-0257 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11061A
    11061-0426 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 12053
    12053-0164 GUIDE-CHAIN
    GUIDE-CHAIN
  • 14026
    14026-0070 COVER-CHAIN
    COVER-CHAIN
  • 14031
    14031-0119-GS COVER-GENERATOR, (SILVER)
    COVER-GENERATOR, (SILVER)
  • 14032
    14032-0138 COVER-CLUTCH
    COVER-CLUTCH
  • 14044
    14044-0043 HOLDER-CABLE
    HOLDER-CABLE
  • 14092
    14092-0029 COVER
    COVER
  • 16115
    16115-1068 CAP-OIL FILLER
    CAP-OIL FILLER
  • 52005
    52005-0019 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 92049
    92049-0051 SEAL-OIL, S 12 28 7 HS
    SEAL-OIL, S 12 28 7 HS
  • 92049A
    92049-0150 SEAL-OIL, 12X20X5.5
    SEAL-OIL, 12X20X5.5
  • 92051
    92051-003 SEAL-OIL, TB16267
    SEAL-OIL, TB16267
  • 92055
    92055-0154 RING-O, 25.7X2.4
    RING-O, 25.7X2.4
  • 92055A
    92055-0194 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92055B
    92055-049 RING-O, 31.5X2.6
    RING-O, 31.5X2.6
  • 92066
    92066-0724 PLUG, 14X10
    PLUG, 14X10
  • 92066A
    92066-1565 PLUG, GENERATOR COVER CAP
    PLUG, GENERATOR COVER CAP
  • 92151
    92151-1212 BOLT, SOCKET, 5X10
    BOLT, SOCKET, 5X10
  • 92153
    92153-1184 BOLT, 6X20
    BOLT, 6X20
