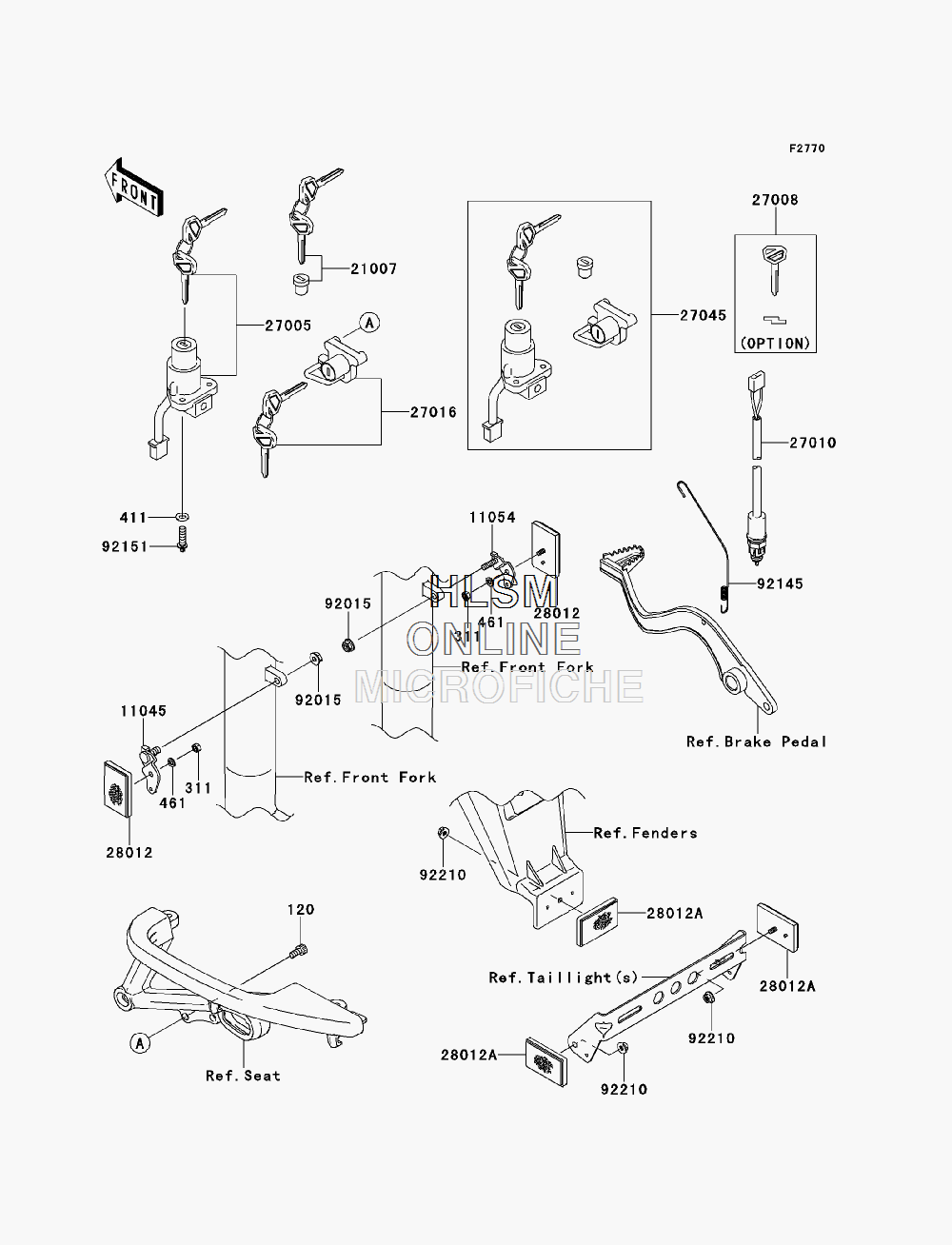

IGNITION SWITCH/LOCKS/REFLECTORS для Kawasaki KLR650 NEW EDITION (KL650EES) - 2014 года выпуска
-
№АртикулНазвание
-
120120CB0612 BOLT-SOCKET, 6X12BOLT-SOCKET, 6X12
-
311311AB0500 NUT-HEXNUT-HEX
-
411411AA0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
461461DB0500 WASHER-SPRING, 5MM, (BLACK)WASHER-SPRING, 5MM, (BLACK)
-
1104511045-1354 BRACKET, REFLECTOR, FRONTBRACKET, REFLECTOR, FRONT
-
1105411054-1889 BRACKET, REFLECTOR, FRONTBRACKET, REFLECTOR, FRONT
-
2100721007-5052 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-0030 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1220 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0119 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5349 LOCK-ASSY, HELMETLOCK-ASSY, HELMET
-
2704527045-5340 SWITCH-ASSYSWITCH-ASSY
-
2801228012-1003 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9201592015-1233 NUT, FLANGED, 6MM, (BLACK)NUT, FLANGED, 6MM, (BLACK)
-
9214592145-0778 SPRINGSPRING
-
9215192151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
