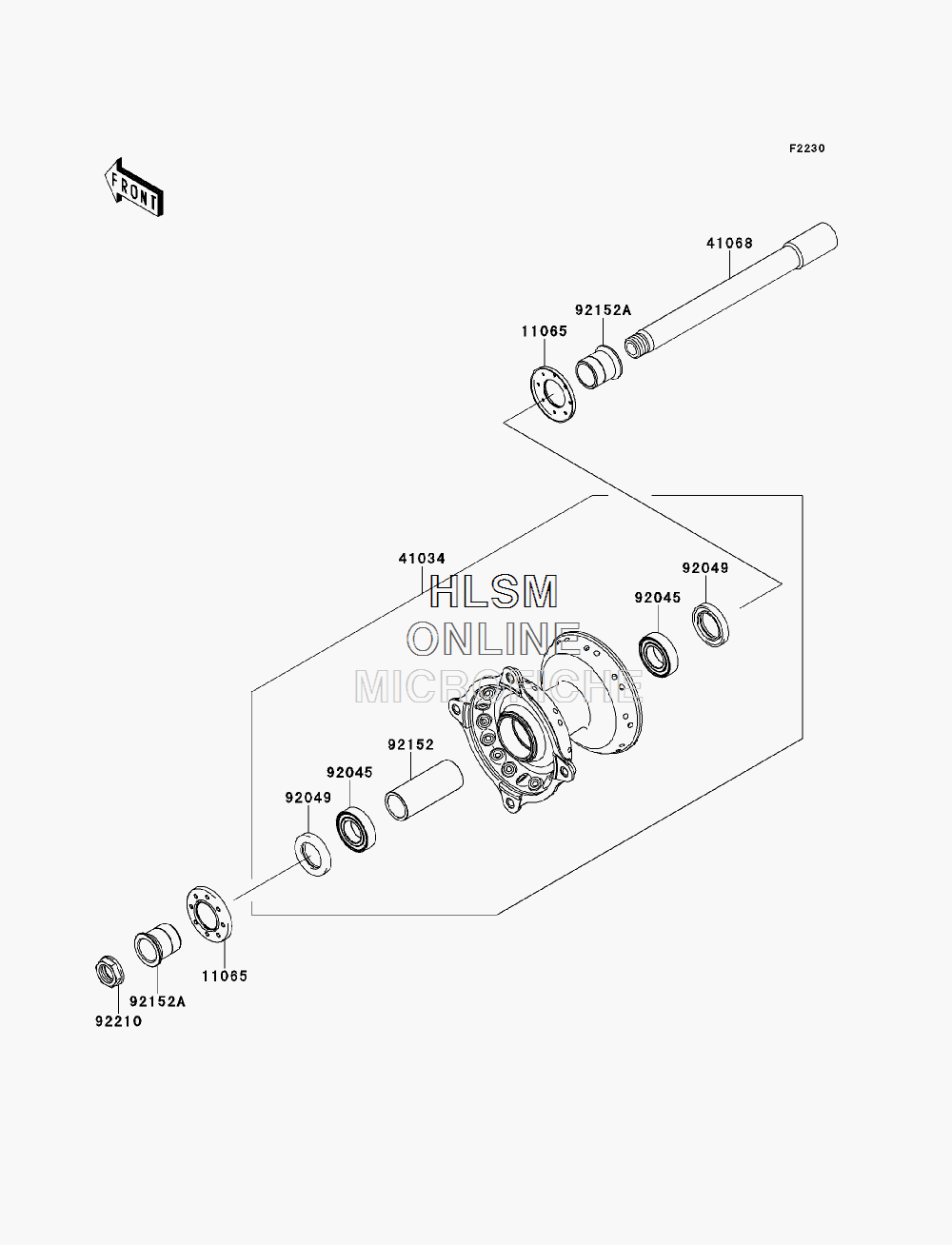

FRONT HUB для Kawasaki KX250F (KX250ZDF) - 2013 года выпуска
-
№АртикулНазвание
-
1106511065-0786 CAP, AXLECAP, AXLE
-
4103441034-0034 DRUM-ASSY, FRONT BRAKEDRUM-ASSY, FRONT BRAKE
-
4106841068-0004 AXLE, FRONTAXLE, FRONT
-
9204592045-1284 BEARING-BALL, 69042RSBEARING-BALL, 69042RS
-
9204992049-1403 SEAL-OIL, BJNC-2 25X37X5SEAL-OIL, BJNC-2 25X37X5
-
9215292152-0028 COLLAR, FRONT BRAKE DRUM, L=65COLLAR, FRONT BRAKE DRUM, L=65
-
92152A92152-0324 COLLAR, FRONT AXLE, L=27.5COLLAR, FRONT AXLE, L=27.5
-
9221092210-0065 NUT, 18MMNUT, 18MM
