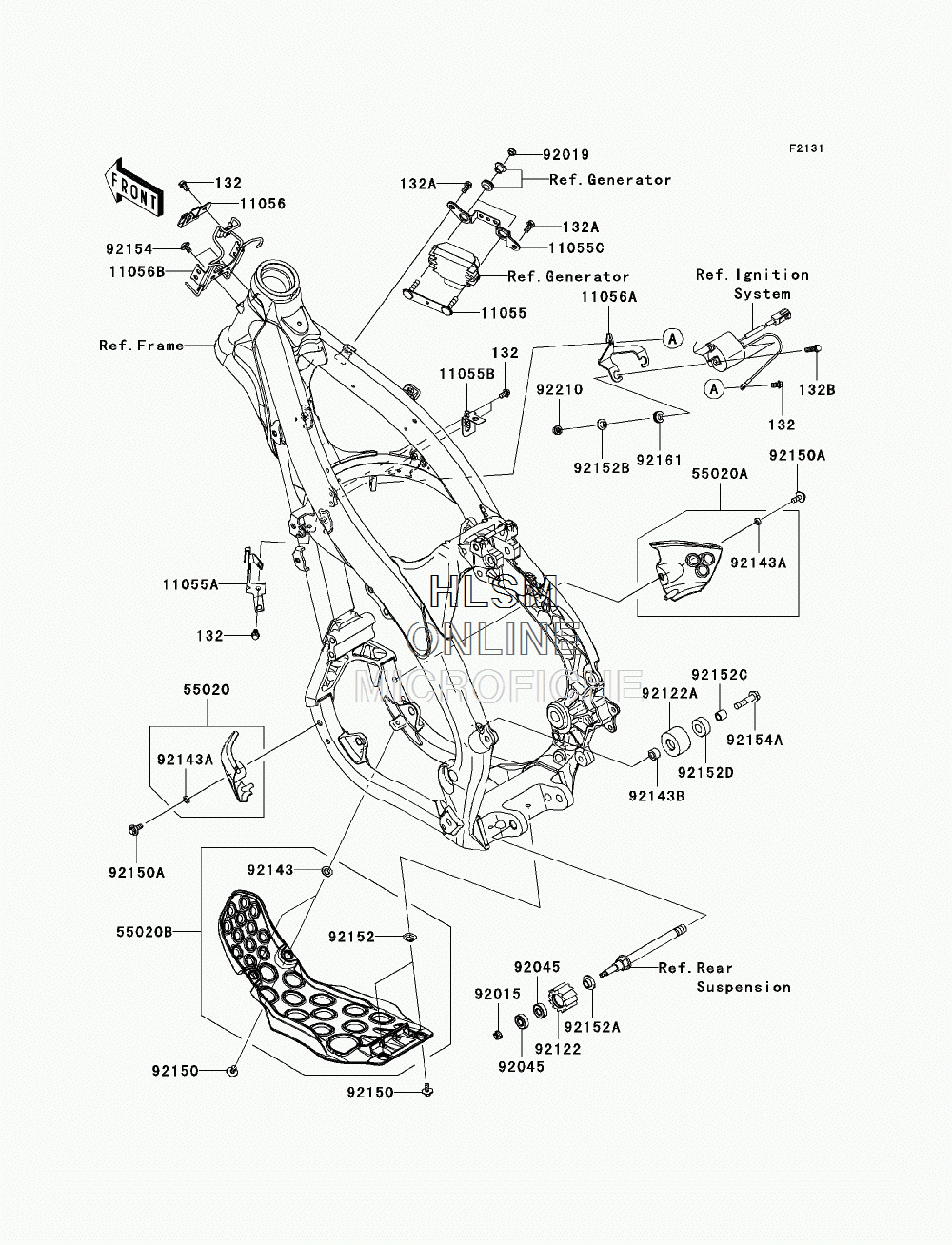

FRAME FITTING(S) для Kawasaki KX250F (KX250YCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0610 BOLT-FLANGED-SMALL,6X10
    BOLT-FLANGED-SMALL,6X10
  • 132A
    132BA0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 132B
    132BA0625 BOLT-FLANGED-SMALL,6X25
    BOLT-FLANGED-SMALL,6X25
  • 11055
    11055-0870 BRACKET, REGULATOR,LWR
    BRACKET, REGULATOR,LWR
  • 11055A
    11055-1540 BRACKET,COUPLER
    BRACKET,COUPLER
  • 11055B
    11055-1541 BRACKET
    BRACKET
  • 11055C
    11055-1542 BRACKET, REGULATOR,UPP
    BRACKET, REGULATOR,UPP
  • 11056
    11056-0505 BRACKET,DIAG CONNECTOR
    BRACKET,DIAG CONNECTOR
  • 11056A
    11056-0961 BRACKET,IG. COIL
    BRACKET,IG. COIL
  • 11056B
    11056-0983 BRACKET,ECU
    BRACKET,ECU
  • 55020
    55020-0435-6C GUARD,ENGINE,SIDE, LEFT HAND,EBONY (FOR 777)
    GUARD,ENGINE,SIDE, LEFT HAND,EBONY (FOR 777)
  • 55020A
    55020-0436-6C GUARD,ENGINE,SIDE, RIGHT HAND,EBONY (FOR 777)
    GUARD,ENGINE,SIDE, RIGHT HAND,EBONY (FOR 777)
  • 55020B
    55020-0443-6C GUARD,ENGINE,LWR,EBONY (FOR 777)
    GUARD,ENGINE,LWR,EBONY (FOR 777)
  • 92015
    92015-1339 NUT,LOCK,FLANGED,6MM
    NUT,LOCK,FLANGED,6MM
  • 92019
    92019-008 NUT,LOCK,6MM
    NUT,LOCK,6MM
  • 92045
    92045-0060 BEARING-BALL,608LLU/2A
    BEARING-BALL,608LLU/2A
  • 92122
    92122-0016 ROLLER,CHAIN GUIDE
    ROLLER,CHAIN GUIDE
  • 92122A
    92122-0042 ROLLER,CHAIN
    ROLLER,CHAIN
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92143A
    92143-1307 COLLAR
    COLLAR
  • 92143B
    92143-1642 COLLAR,8.5X15X9
    COLLAR,8.5X15X9
  • 92150
    92150-1435 BOLT,6X12
    BOLT,6X12
  • 92150A
    92150-1506 BOLT,FLANGED,6X16
    BOLT,FLANGED,6X16
  • 92152
    92152-0052 COLLAR
    COLLAR
  • 92152A
    92152-0459 COLLAR
    COLLAR
  • 92152B
    92152-0620 COLLAR
    COLLAR
  • 92152C
    92152-0944 COLLAR,8.5X12.5X12.5
    COLLAR,8.5X12.5X12.5
  • 92152D
    92152-0945 COLLAR,12.7X27.2X12
    COLLAR,12.7X27.2X12
  • 92154
    92154-0774 BOLT,SOCKET,6X10
    BOLT,SOCKET,6X10
  • 92154A
    92154-0913 BOLT,FLANGED,8X35
    BOLT,FLANGED,8X35
  • 92161
    92161-0878 DAMPER,8.5X15.5X5.5
    DAMPER,8.5X15.5X5.5
  • 92210
    92210-0630 NUT,FLANGED,6MM
    NUT,FLANGED,6MM
