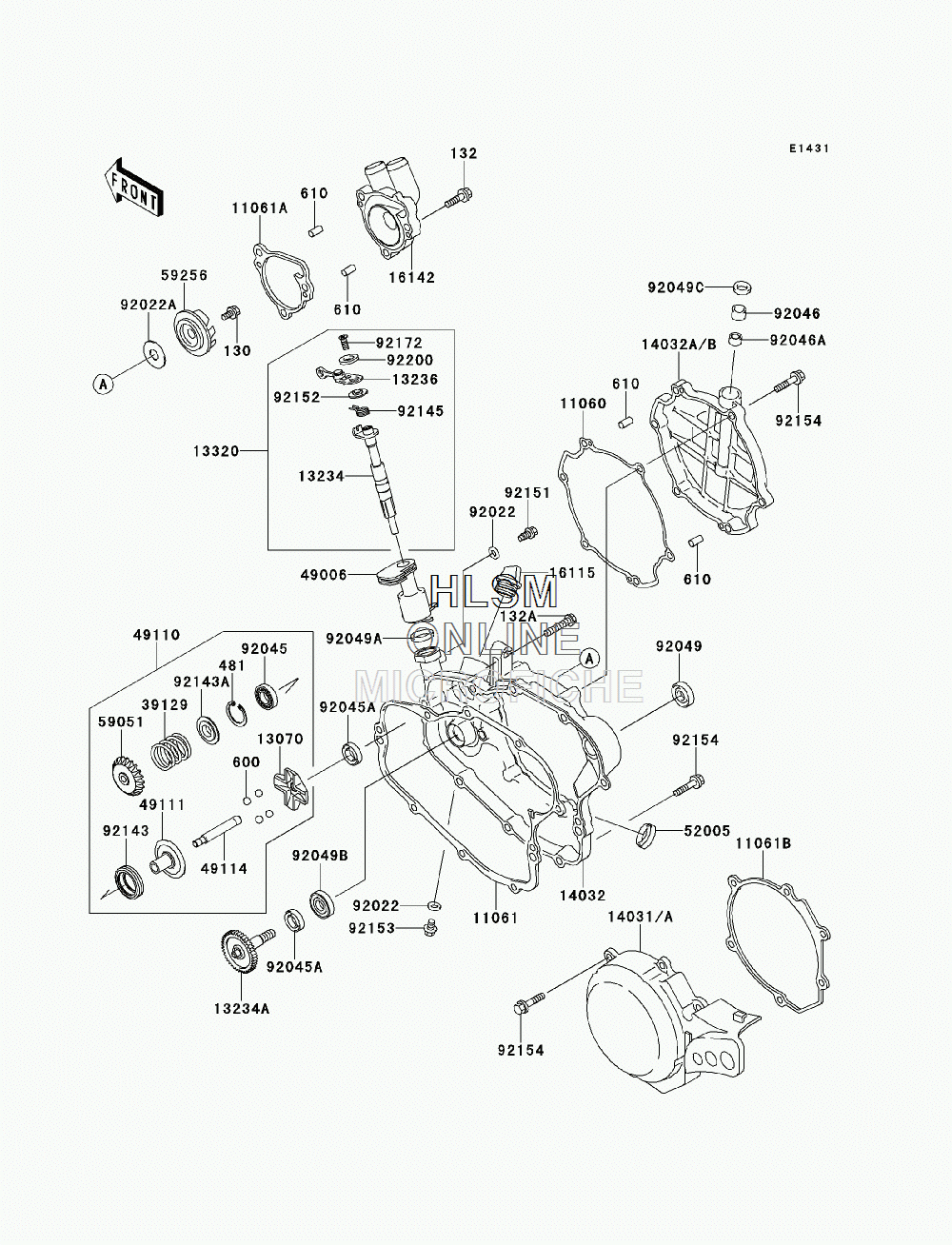

ENGINE COVER для Kawasaki KX100 (KX100DCF) - 2012 года выпуска`
-
№АртикулНазвание
-
1106011060-1795 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1106111061-0122 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061A11061-0184 GASKET, PUMP COVERGASKET, PUMP COVER
-
11061B11061-0194 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
1307013070-1309 GUIDE, GOVERNORGUIDE, GOVERNOR
-
1323413234-0008 SHAFT-COMPSHAFT-COMP
-
13234A13234-1103 SHAFT-COMP, WATER PUMPSHAFT-COMP, WATER PUMP
-
1323613236-0023 LEVER-COMPLEVER-COMP
-
1332013320-0002 LEVER-ASSYLEVER-ASSY
-
1403114031-0108 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0041 COVER-CLUTCH, INSIDECOVER-CLUTCH, INSIDE
-
14032A14032-0134 COVER-CLUTCH, OUTSIDECOVER-CLUTCH, OUTSIDE
-
1611516115-018 CAP-OIL FILLERCAP-OIL FILLER
-
1614216142-1144 COVER-PUMP, WATERCOVER-PUMP, WATER
-
3912939129-1022 SPRING-GOVERNORSPRING-GOVERNOR
-
4900649006-1313 BOOT, GOVERNORBOOT, GOVERNOR
-
4911049110-0010 GOVERNOR-ASSYGOVERNOR-ASSY
-
4911149111-1064 HOLDER-GOVERNOR WEIGHTHOLDER-GOVERNOR WEIGHT
-
4911449114-0005 SHAFT-GOVERNORSHAFT-GOVERNOR
-
5200552005-0019 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
5905159051-1412 GEAR-SPURGEAR-SPUR
-
5925659256-1064 IMPELLERIMPELLER
-
9202292022-077 WASHER, 6.1X12X1WASHER, 6.1X12X1
-
92022A92022-1380 WASHER, 5.2X13X1WASHER, 5.2X13X1
-
9204592045-0010 BEARING-BALLBEARING-BALL
-
92045A92045-1305 BEARING-BALL, 608MC3BEARING-BALL, 608MC3
-
9204692046-1160 BEARING-NEEDLE, HK1010FMBEARING-NEEDLE, HK1010FM
-
92046A92046-1217 BEARING-NEEDLE, 6BTM109BEARING-NEEDLE, 6BTM109
-
9204992049-002 SEAL-OIL, SB16244SEAL-OIL, SB16244
-
92049A92049-1262 SEAL-OIL, AG0353-F0SEAL-OIL, AG0353-F0
-
92049B92049-1366 SEAL-OIL, MHSD8X18X10J-1SEAL-OIL, MHSD8X18X10J-1
-
92049C92049-1414 SEAL-OIL, BG1408F0SEAL-OIL, BG1408F0
-
9214392143-1932 COLLARCOLLAR
-
92143A92143-1933 COLLARCOLLAR
-
9214592145-0089 SPRINGSPRING
-
9215192151-1180 BOLT, FLANGED, 6X11BOLT, FLANGED, 6X11
-
9215292152-0085 COLLAR, LEVERCOLLAR, LEVER
-
9215392153-1005 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
130130CA0510 BOLT-FLANGED, 5X10BOLT-FLANGED, 5X10
-
132132BC0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132A132BC0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
481481J2400 CIRCLIPCIRCLIP
-
600600A1000 BALL-STEEL, 5/16"BALL-STEEL, 5/16"
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9215492154-0520 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9217292172-0087 SCREW, 6X14SCREW, 6X14
-
9220092200-0040 WASHER, LEVERWASHER, LEVER
