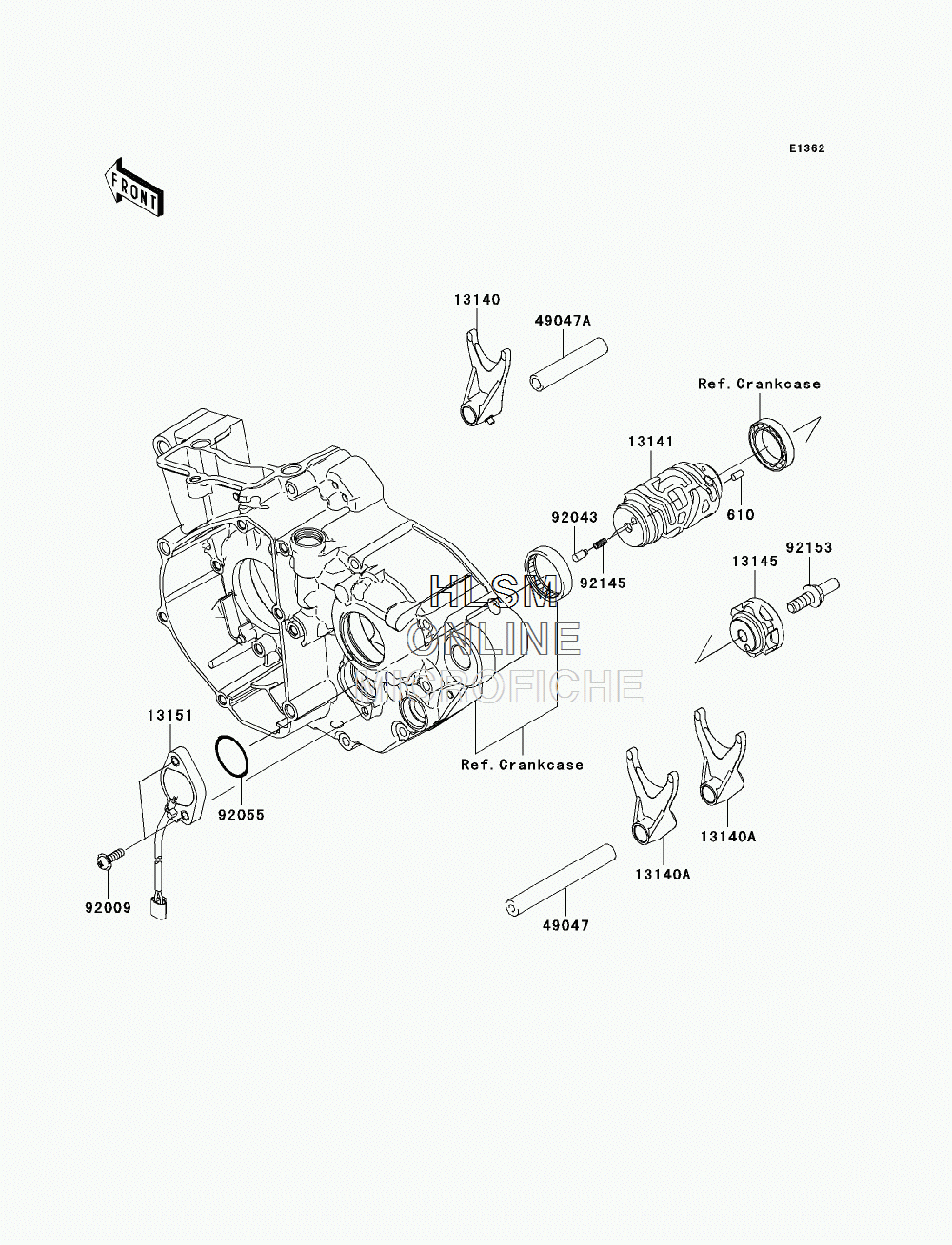

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KX250F (KX250YBF) - 2011 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-0056 FORK-SHIFT, INFORK-SHIFT, IN
-
13140A13140-0057 FORK-SHIFT, OUTFORK-SHIFT, OUT
-
1314113141-0054 DRUM-CHANGEDRUM-CHANGE
-
1314513145-0031 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-0052 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
4904749047-0003 ROD-SHIFT, OUTPUT, L=94.5ROD-SHIFT, OUTPUT, L=94.5
-
49047A49047-0004 ROD-SHIFT, INPUT, L=63ROD-SHIFT, INPUT, L=63
-
9200992009-1571 SCREW, 5X16SCREW, 5X16
-
9204392043-1654 PINPIN
-
9205592055-091 O-RING, 27.7X2.4O-RING, 27.7X2.4
-
9214592145-1414 SPRINGSPRING
-
9215392153-1735 BOLTBOLT
