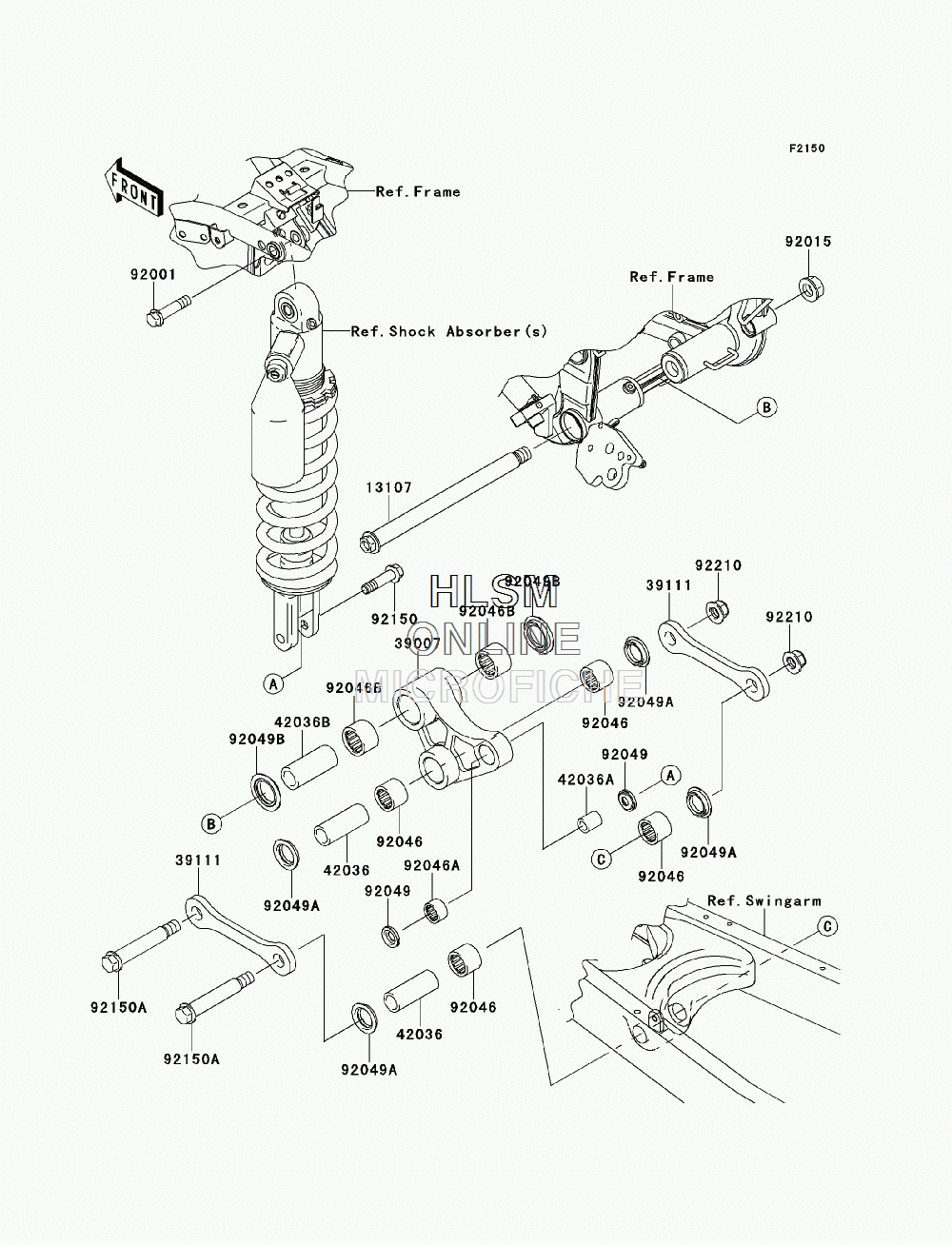

SUSPENSION - REAR для Kawasaki KLX250S (KLX250TBF) (CANADA ONLY) - 2011 года выпуска
-
№АртикулНазвание
-
1310713107-0198 SHAFT, ARM, 14MMSHAFT, ARM, 14MM
-
3900739007-0100 ARM-SUSP, UNI TRAKARM-SUSP, UNI TRAK
-
3911139111-0053 ROD-TIE, SUSPENSIONROD-TIE, SUSPENSION
-
4203642036-1245 SLEEVE, 15X22X57SLEEVE, 15X22X57
-
42036A42036-1248 SLEEVE, 10X16X19SLEEVE, 10X16X19
-
42036B42036-1318 SLEEVE, 17X25X57SLEEVE, 17X25X57
-
9200192001-1499 BOLT, FLANGED, 10X44BOLT, FLANGED, 10X44
-
9201592015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1162 BEARING-NEEDLE, F-2220BEARING-NEEDLE, F-2220
-
92046A92046-1192 BEARING-NEEDLE, 16BM2212BEARING-NEEDLE, 16BM2212
-
92046B92046-1228 BEARING-NEEDLE, BM2520BEARING-NEEDLE, BM2520
-
9204992049-0069 SEAL-OILSEAL-OIL
-
92049A92049-1254 SEAL-OIL, MHA22 28 5.7FSEAL-OIL, MHA22 28 5.7F
-
92049B92049-1426 SEAL-OIL, MF025N1SEAL-OIL, MF025N1
-
9215092150-1711 BOLT, FLANGED, 10X40BOLT, FLANGED, 10X40
-
92150A92150-1812 BOLT, ROD, 12X90BOLT, ROD, 12X90
-
9221092210-0348 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
