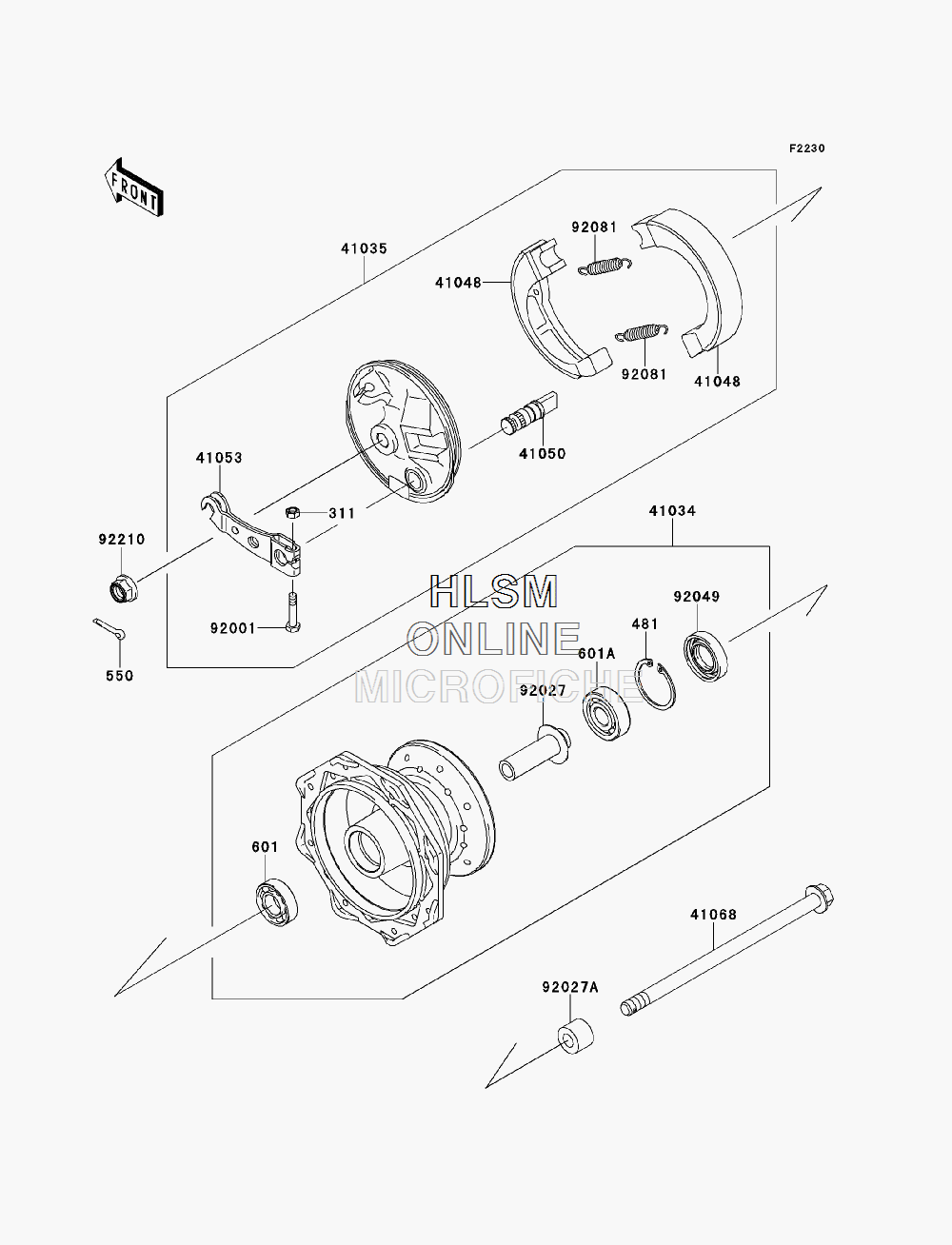

FRONT HUB для Kawasaki KLX110L (KLX110DBF) - 2011 года выпуска`
-
№АртикулНазвание
-
311311BA0500 NUT-HEXNUT-HEX
-
481481J3500 CIRCLIP-TYPE-C, 35MMCIRCLIP-TYPE-C, 35MM
-
550550S2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
601601B6200UU BEARING-BALL, #6200UUC3BEARING-BALL, #6200UUC3
-
601A601B6300UU BEARING-BALL, #6300UUC3BEARING-BALL, #6300UUC3
-
4103441034-1343 DRUM-ASSY, FRONT BRAKEDRUM-ASSY, FRONT BRAKE
-
4103541035-1543 PANEL-ASSY-BRAKE, FRONTPANEL-ASSY-BRAKE, FRONT
-
4104841048-1083 SHOE-BRAKESHOE-BRAKE
-
4105041050-1031 CAM-BRAKECAM-BRAKE
-
4105341053-1027 LEVER-BRAKE CAM, FRONTLEVER-BRAKE CAM, FRONT
-
4106841068-0015 AXLE, FRONTAXLE, FRONT
-
9200192001-1695 BOLT, 5X25BOLT, 5X25
-
9202792027-1470 COLLAR, FRONT DRUM, L=54COLLAR, FRONT DRUM, L=54
-
92027A92027-1472 COLLAR, FRONT AXLE, L=14.5COLLAR, FRONT AXLE, L=14.5
-
9204992049-0052 SEAL-OIL, DD20X35X7SEAL-OIL, DD20X35X7
-
9208192081-1564 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
