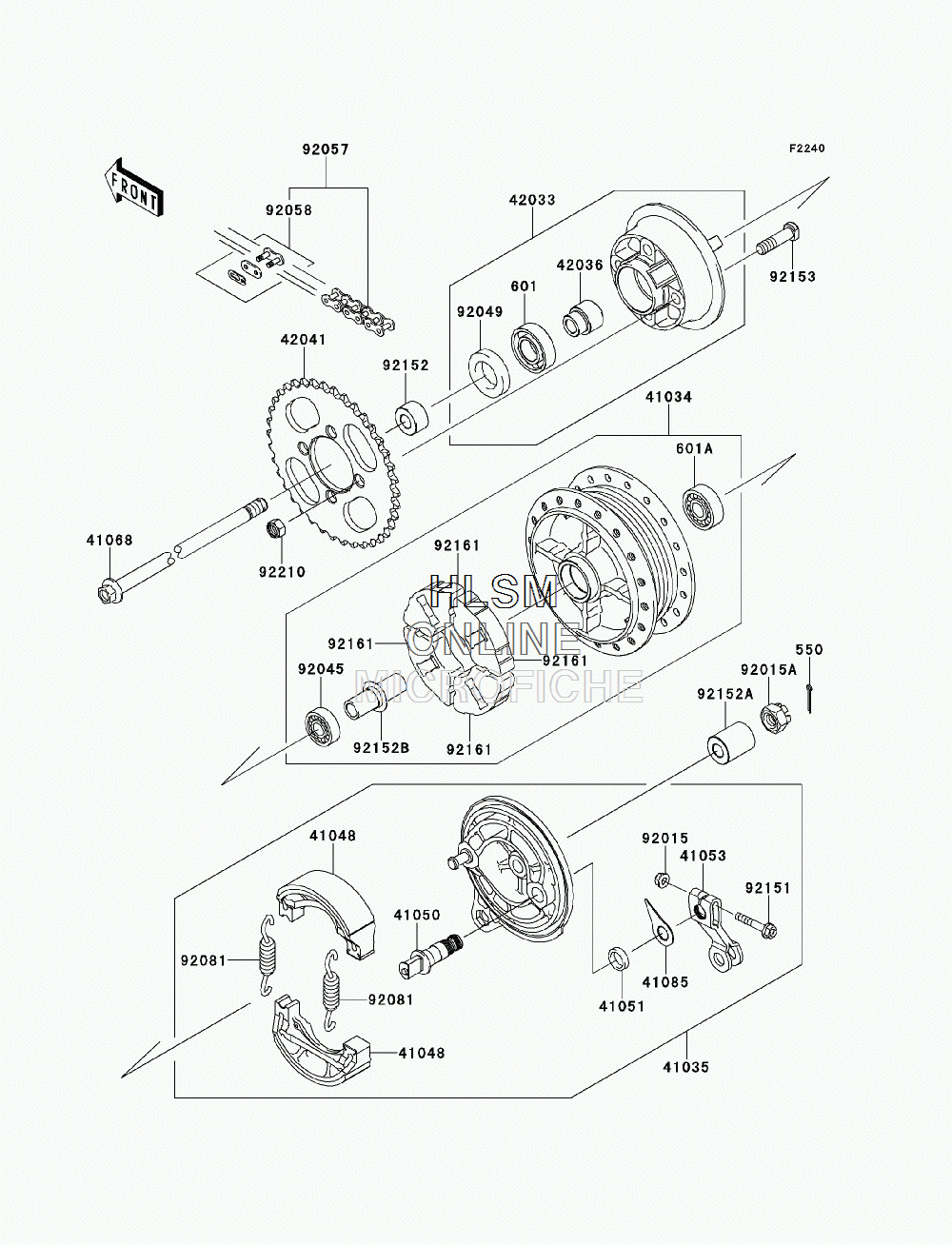

REAR HUB для Kawasaki KLX110 (KLX110CBF) - 2011 года выпуска`
-
№АртикулНазвание
-
550550S2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
601601B6004UG BEARING-BALL, #6004UGBEARING-BALL, #6004UG
-
601A601B6301UG BEARING-BALL, #6301UGBEARING-BALL, #6301UG
-
4103441034-0010 DRUM-ASSY, REAR BRAKEDRUM-ASSY, REAR BRAKE
-
4103541035-0084 PANEL-ASSY-BRAKE, REARPANEL-ASSY-BRAKE, REAR
-
4104841048-1141 SHOE-BRAKESHOE-BRAKE
-
4105041050-1082 CAM-BRAKECAM-BRAKE
-
4105141051-001 SEAL, BRAKE CAMSEAL, BRAKE CAM
-
4105341053-0021 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4106841068-0016 AXLE, REARAXLE, REAR
-
4108541085-1085 INDICATORINDICATOR
-
4203342033-1223 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1292 SLEEVE, REAR HUB COUPLING, L=29SLEEVE, REAR HUB COUPLING, L=29
-
4204142041-0082 SPROCKET-HUB, 38TSPROCKET-HUB, 38T
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1870 NUT, CASTLE, 12MMNUT, CASTLE, 12MM
-
9204592045-1308 BEARING-BALL, 6201ZC3/5CBEARING-BALL, 6201ZC3/5C
-
9204992049-1490 SEAL-OIL, SC26X42X8SEAL-OIL, SC26X42X8
-
9205792057-0183 CHAIN, DRIVE, DID420DXX90LCHAIN, DRIVE, DID420DXX90L
-
9205892058-0006 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9208192081-1766 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
9215192151-1209 BOLT, FLANGED, 6X34BOLT, FLANGED, 6X34
-
9215292152-1405 COLLAR, REAR AXLE, LEFT HAND, L=14.8COLLAR, REAR AXLE, LEFT HAND, L=14.8
-
92152A92152-1406 COLLAR, REAR AXLE, RIGHT HAND, L=32COLLAR, REAR AXLE, RIGHT HAND, L=32
-
92152B92152-1409 COLLAR, REAR BRAKE DRUM, L=58COLLAR, REAR BRAKE DRUM, L=58
-
9215392153-1120 BOLT, 10X36BOLT, 10X36
-
9216192161-0084 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9221092210-1351 NUT, LOCK, 10MMNUT, LOCK, 10MM
