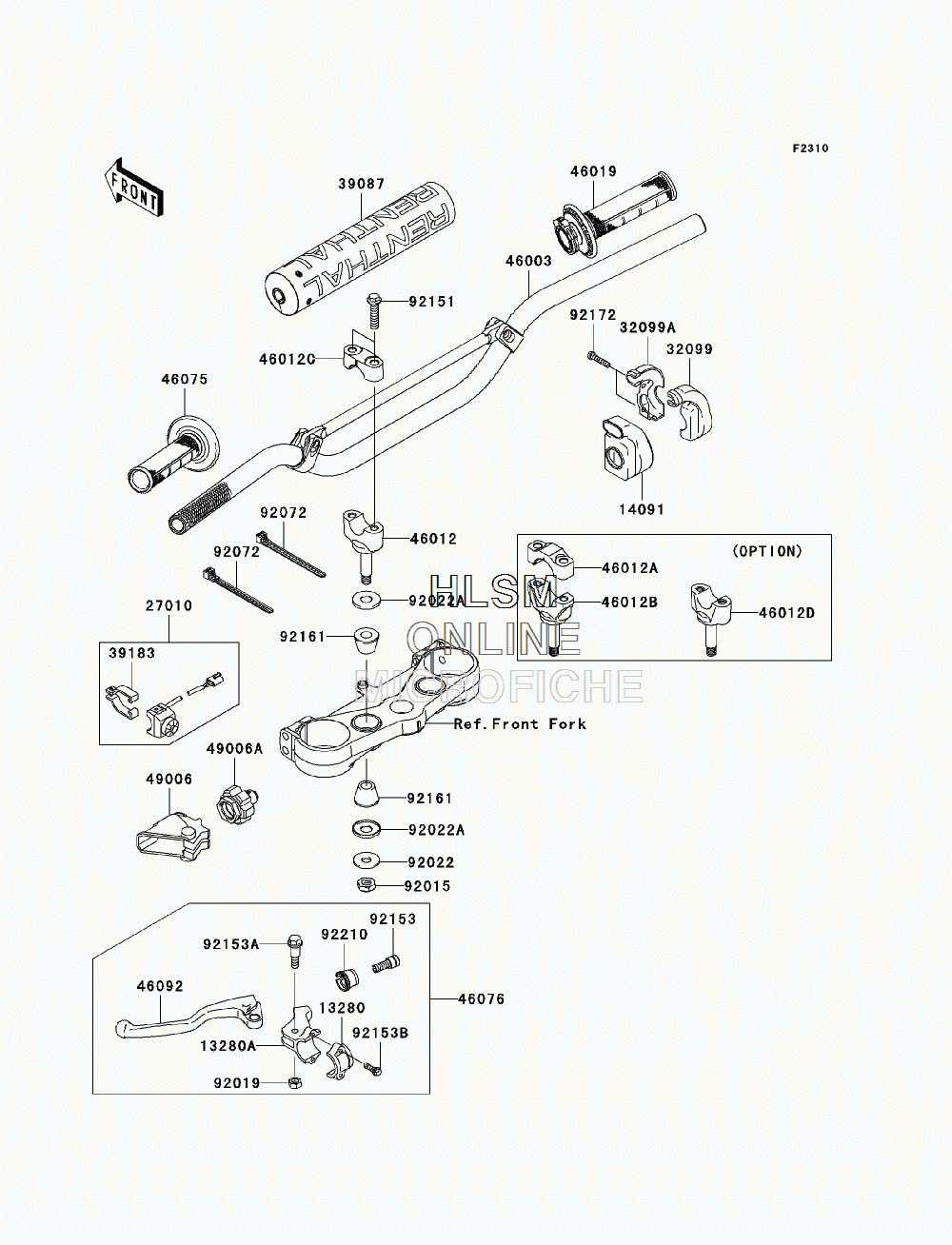

HANDLEBAR для Kawasaki KX450F (KX450EAF) - 2010 года выпуска`
-
№АртикулНазвание
-
1328013280-0055 HOLDERHOLDER
-
13280A13280-0118 HOLDER,CLUTCH LEVERHOLDER,CLUTCH LEVER
-
1409114091-0182 COVER,THROTTLE CASECOVER,THROTTLE CASE
-
2701027010-0047 SWITCH,ENGINE STOPSWITCH,ENGINE STOP
-
3209932099-0002 CASE,THROTTLE, REARCASE,THROTTLE, REAR
-
32099A32099-0003 CASE,THROTTLE, FRONTCASE,THROTTLE, FRONT
-
3908739087-0005 PAD-HANDLEPAD-HANDLE
-
3918339183-1059 BAND-ASSY,ENGINE STOP SWITCHBAND-ASSY,ENGINE STOP SWITCH
-
4600346003-0077 HANDLEHANDLE
-
4601246012-0013-21 HOLDER-HANDLE,LWR,F.BLACK (FOR 777)HOLDER-HANDLE,LWR,F.BLACK (FOR 777)
-
46012A46012-0020-21 HOLDER-HANDLE,UPP,FAT BAR,BLK (OPTION) (FOR 777)HOLDER-HANDLE,UPP,FAT BAR,BLK (OPTION) (FOR 777)
-
46012B46012-0021-21 HOLDER-HANDLE,LWR,FAT BAR,BLK (OPTION) (FOR 777)HOLDER-HANDLE,LWR,FAT BAR,BLK (OPTION) (FOR 777)
-
46012C46012-0023-21 HOLDER-HANDLE,UPP,F.BLACK (FOR 777)HOLDER-HANDLE,UPP,F.BLACK (FOR 777)
-
46012D46012-0048-21 HOLDER-HANDLE,LWR,F.BLACK (OPTION) (FOR 777)HOLDER-HANDLE,LWR,F.BLACK (OPTION) (FOR 777)
-
4601946019-0018 GRIP-ASSY,THROTTLEGRIP-ASSY,THROTTLE
-
4607546075-0044 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-0019 LEVER-ASSY-GRIP,CLUTCHLEVER-ASSY-GRIP,CLUTCH
-
4609246092-0007 LEVER-GRIP,CLUTCHLEVER-GRIP,CLUTCH
-
4900649006-0030 BOOT,CLUTCH LEVERBOOT,CLUTCH LEVER
-
49006A49006-0060 BOOT,CLUTCH CABLEBOOT,CLUTCH CABLE
-
9201592015-1962 NUT,LOCK,10MMNUT,LOCK,10MM
-
9201992019-008 NUT,LOCK,6MMNUT,LOCK,6MM
-
9202292022-1088 WASHER,10.2X28X2WASHER,10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9207292072-0055 BAND,L=100BAND,L=100
-
9215192151-1537 BOLT,FLANGED,8X35BOLT,FLANGED,8X35
-
9215392153-0773 BOLT,BOLT ADJUSTINGBOLT,BOLT ADJUSTING
-
92153A92153-0807 BOLTBOLT
-
92153B92153-0808 BOLT,5X16BOLT,5X16
-
9216192161-0113 DAMPER,HANDLE HOLDERDAMPER,HANDLE HOLDER
-
9217292172-0069 SCREW,5X20SCREW,5X20
-
9221092210-0167 NUT,BOLT WIRE ADJUSTINGNUT,BOLT WIRE ADJUSTING
