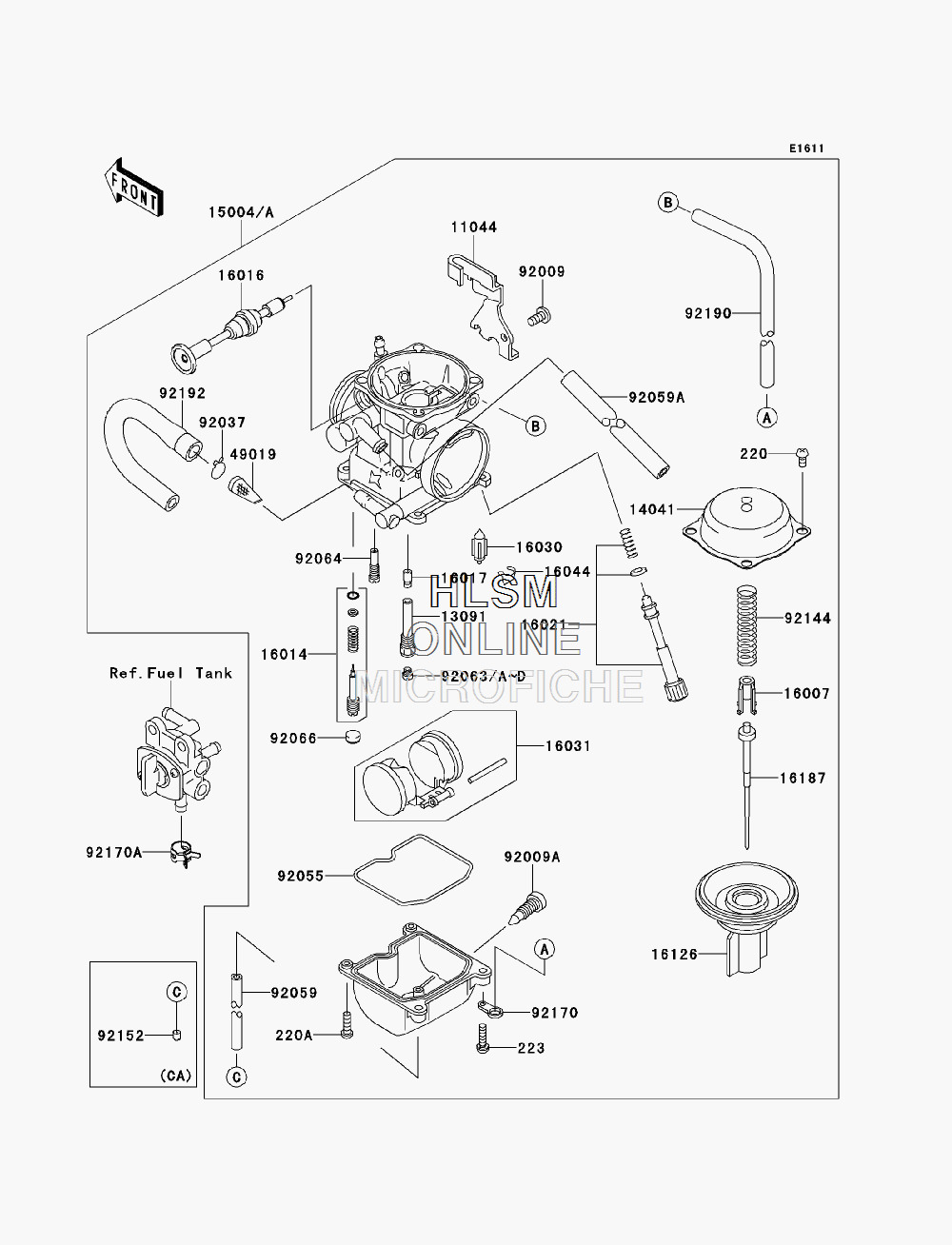

CARBURETOR для Kawasaki KLX250SF (KLX250WAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 11044
    11044-1353 BRACKET,THROTTLE CABLE
    BRACKET,THROTTLE CABLE
  • 13091
    13091-1332 HOLDER,NEEDLE JET
    HOLDER,NEEDLE JET
  • 14041
    14041-1061 COVER-COMP,MIXING,INSIDE
    COVER-COMP,MIXING,INSIDE
  • 15004
    15004-0023 CARBURETOR-ASSY,CVK34 (EXCEPT CALIF.)
    CARBURETOR-ASSY,CVK34 (EXCEPT CALIF.)
  • 15004A
    15004-0029 CARBURETOR-ASSY,CVK34 (CALIF. ONLY)
    CARBURETOR-ASSY,CVK34 (CALIF. ONLY)
  • 16007
    16007-1117 SEAT-SPRING,VALVE
    SEAT-SPRING,VALVE
  • 16014
    16014-1081 SCREW-PILOT AIR
    SCREW-PILOT AIR
  • 16016
    16016-0013 PLUNGER,STARTER
    PLUNGER,STARTER
  • 16017
    16017-1439 JET-NEEDLE
    JET-NEEDLE
  • 16021
    16021-1201 SCREW-THROTTLE STOP
    SCREW-THROTTLE STOP
  • 16030
    16030-1007 VALVE-FLOAT
    VALVE-FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP,FLOAT VALVE
    CLAMP,FLOAT VALVE
  • 16126
    16126-1339 VALVE,VACUUM
    VALVE,VACUUM
  • 16187
    16187-0284 NEEDLE-JET,NNLA
    NEEDLE-JET,NNLA
  • 49019
    49019-1097 FILTER-FUEL
    FILTER-FUEL
  • 92009
    92009-1365 SCREW,5X10
    SCREW,5X10
  • 92009A
    92009-1551 SCREW,DRAIN,6X0.75
    SCREW,DRAIN,6X0.75
  • 92037
    92037-1075 CLAMP,FUEL TUBE
    CLAMP,FUEL TUBE
  • 92055
    92055-1222 RING-O,FLOAT CHAMBER
    RING-O,FLOAT CHAMBER
  • 92059
    92059-1110 TUBE,3.5X6.5X330
    TUBE,3.5X6.5X330
  • 92059A
    92059-1237 TUBE,6.5X9.5X350
    TUBE,6.5X9.5X350
  • 92063
    92063-1071 JET-MAIN,#118
    JET-MAIN,#118
  • 92063A
    92063-1072 JET-MAIN,#120 (OPTION)
    JET-MAIN,#120 (OPTION)
  • 92063B
    92063-1073 JET-MAIN,#122 (OPTION)
    JET-MAIN,#122 (OPTION)
  • 92063C
    92063-1117 JET-MAIN,#112 (OPTION)
    JET-MAIN,#112 (OPTION)
  • 92063D
    92063-1118 JET-MAIN,#115 (OPTION)
    JET-MAIN,#115 (OPTION)
  • 92064
    92064-1209 JET-PILOT,#35
    JET-PILOT,#35
  • 92066
    92066-1051 PLUG,PILOT AIR SCREW,6.9X2
    PLUG,PILOT AIR SCREW,6.9X2
  • 92144
    92144-1538 SPRING,VACUUM VALVE
    SPRING,VACUUM VALVE
  • 92152
    92152-0218 COLLAR,0.8X4.2X5.0 (CALIF. ONLY)
    COLLAR,0.8X4.2X5.0 (CALIF. ONLY)
  • 92170
    92170-1496 CLAMP,TUBE
    CLAMP,TUBE
  • 92170A
    92170-1872 CLAMP
    CLAMP
  • 92190
    92190-1560 TUBE,5X8X430
    TUBE,5X8X430
  • 220
    220AA0408 SCREW-PAN-CROS,4X8
    SCREW-PAN-CROS,4X8
  • 220A
    220AA0414 SCREW-PAN-CROS,4X14
    SCREW-PAN-CROS,4X14
  • 223
    223AA0416 SCREW-PAN-WS-CROS,4X16
    SCREW-PAN-WS-CROS,4X16
  • 92192
    92192-0742 TUBE,FUEL,L=150
    TUBE,FUEL,L=150
