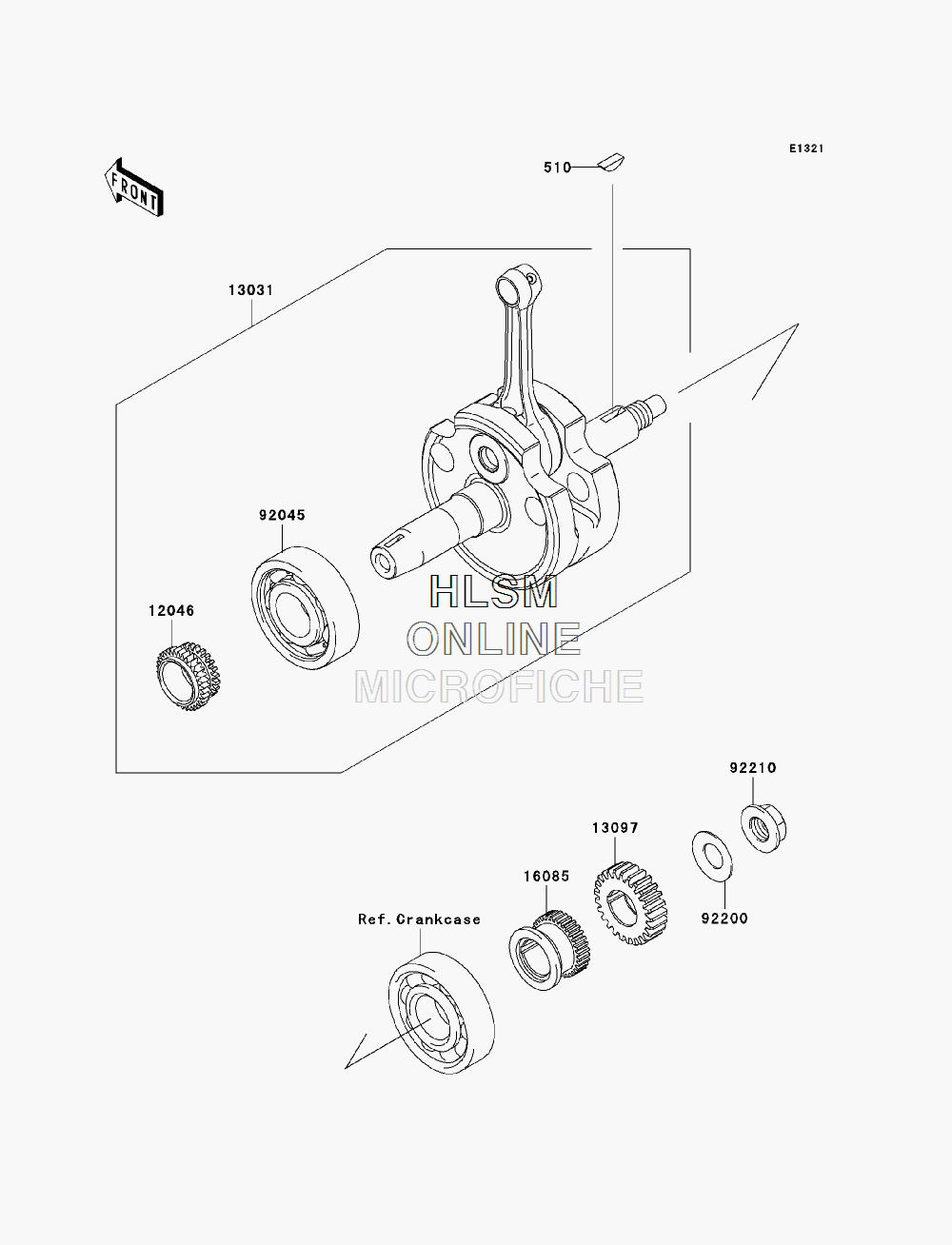

CRANKSHAFT для Kawasaki KLX140 (KLX140ABF) - 2010 года выпуска
-
№АртикулНазвание
-
510510A4200 KEY-WOODRUFFKEY-WOODRUFF
-
1204612046-0061 SPROCKET, 18TSPROCKET, 18T
-
1303113031-0102 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1309713097-0076 GEAR-PRIMARY SPUR, 25TGEAR-PRIMARY SPUR, 25T
-
1608516085-0118 GEAR, 21TGEAR, 21T
-
9204592045-0018 BEARING-BALLBEARING-BALL
-
9220092200-0217 WASHER, 14.2X28X1.5WASHER, 14.2X28X1.5
-
9221092210-0216 NUT, 14MM (LEFT HANDED)NUT, 14MM (LEFT HANDED)
