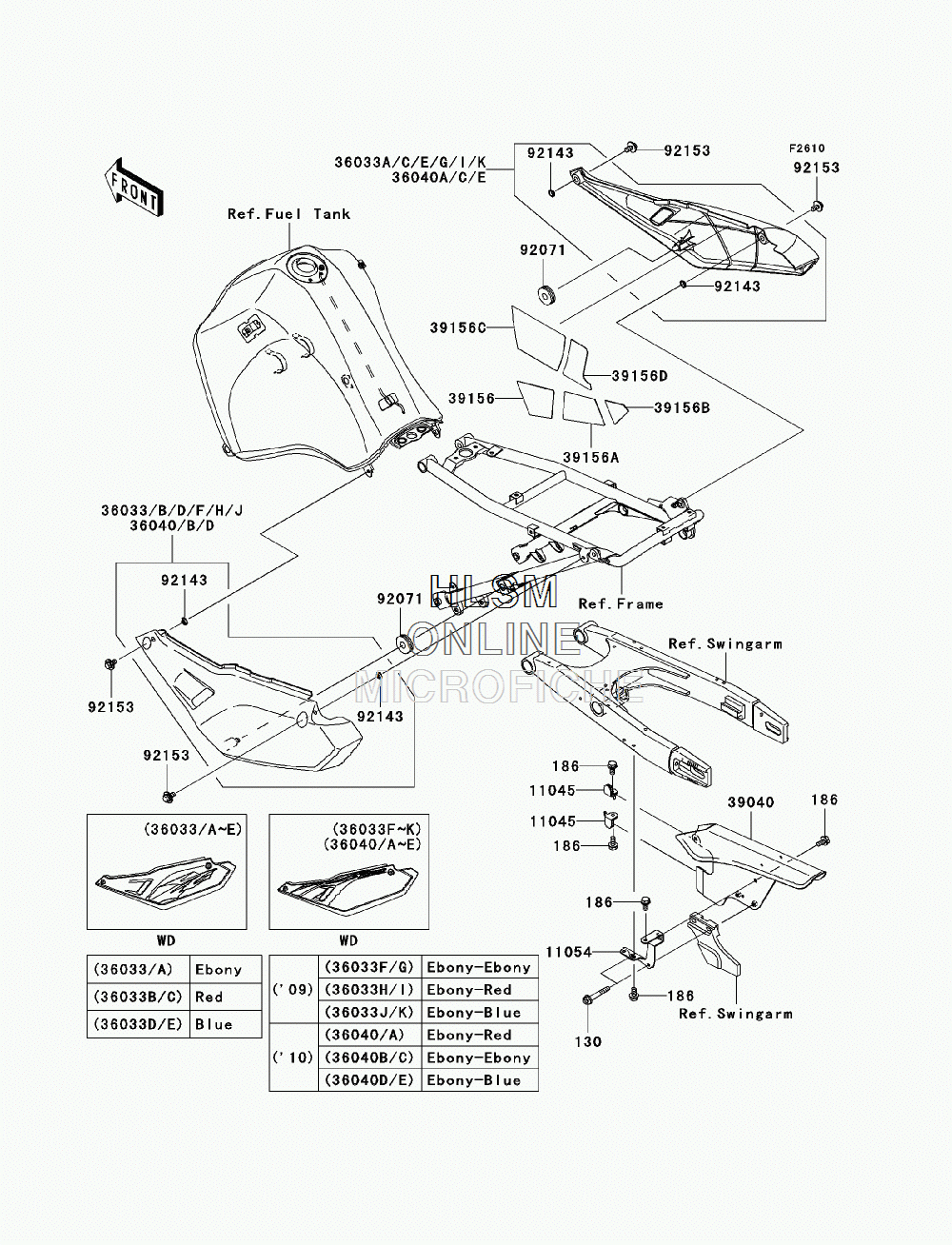

SIDE COVER(S) W/ CHAIN COVER для Kawasaki KLR650 (KL650EAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0640 BOLT-FLANGED,6X40
    BOLT-FLANGED,6X40
  • 186
    186BA0612 BOLT-UPSET-WP,6X12
    BOLT-UPSET-WP,6X12
  • 11045
    11045-1335 BRACKET,CHAIN CASE, FRONT
    BRACKET,CHAIN CASE, FRONT
  • 11054
    11054-0390 BRACKET,CHAIN CASE, REAR
    BRACKET,CHAIN CASE, REAR
  • 36040
    36040-5258-6C COVER-SIDE, LEFT HAND,EBONY
    COVER-SIDE, LEFT HAND,EBONY
  • 36040A
    36040-5259-6C COVER-SIDE, RIGHT HAND,EBONY
    COVER-SIDE, RIGHT HAND,EBONY
  • 36040B
    36040-5260-6C COVER-SIDE, LEFT HAND,EBONY
    COVER-SIDE, LEFT HAND,EBONY
  • 36040C
    36040-5261-6C COVER-SIDE, RIGHT HAND,EBONY
    COVER-SIDE, RIGHT HAND,EBONY
  • 36040D
    36040-5262-6C COVER-SIDE, LEFT HAND,EBONY
    COVER-SIDE, LEFT HAND,EBONY
  • 36040E
    36040-5263-6C COVER-SIDE, RIGHT HAND,EBONY
    COVER-SIDE, RIGHT HAND,EBONY
  • 39040
    39040-0002 COVER-ASSY-CHAIN CASE
    COVER-ASSY-CHAIN CASE
  • 39156
    39156-0184 PAD,SIDE COVER, RIGHT HAND,LWR, FRONT
    PAD,SIDE COVER, RIGHT HAND,LWR, FRONT
  • 39156A
    39156-0189 PAD,SIDE COVER, RIGHT HAND,LWR,CNT
    PAD,SIDE COVER, RIGHT HAND,LWR,CNT
  • 39156B
    39156-0190 PAD,SIDE COVER, RIGHT HAND,LWR, REAR
    PAD,SIDE COVER, RIGHT HAND,LWR, REAR
  • 39156C
    39156-0262 PAD,SIDE COVER, RIGHT HAND,UPP, FRONT
    PAD,SIDE COVER, RIGHT HAND,UPP, FRONT
  • 39156D
    39156-0263 PAD,SIDE COVER, RIGHT HAND,UPP, REAR
    PAD,SIDE COVER, RIGHT HAND,UPP, REAR
  • 92071
    92071-056 GROMMET
    GROMMET
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92153
    92153-0503 BOLT,6X12
    BOLT,6X12
