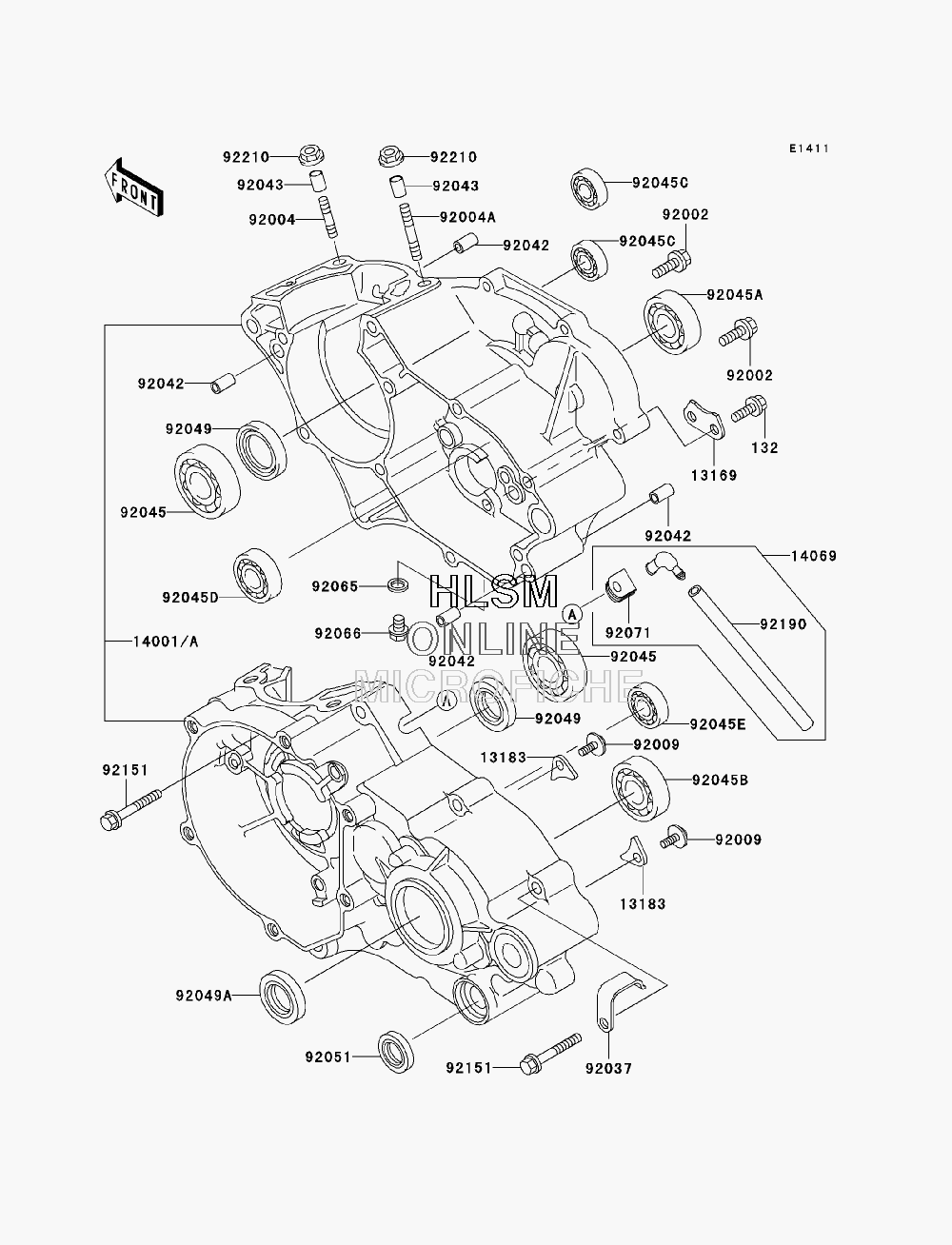

CRANKCASE для Kawasaki KX85 (KX85A9F) - 2009 года выпуска`
-
№АртикулНазвание
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1316913169-012 PLATE, CHANGE DRUMPLATE, CHANGE DRUM
-
1318313183-1182 PLATEPLATE
-
14001A14001-0118 SET-CRANKCASESET-CRANKCASE
-
1406914069-1062 BREATHERBREATHER
-
9200292002-1659 BOLT, 6X16BOLT, 6X16
-
9200492004-1252 STUD, 8X28.5STUD, 8X28.5
-
92004A92004-1254 STUD, 8X37STUD, 8X37
-
9200992009-1563 SCREW, 6X10SCREW, 6X10
-
9203792037-1318 CLAMP, HARNESSCLAMP, HARNESS
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204592045-1059 BEARING-BALL, R-6304C3BEARING-BALL, R-6304C3
-
92045A92045-1118 BEARING-BALL, 6004TMBBEARING-BALL, 6004TMB
-
92045B92045-1226 BEARING-BALL, 6204BEARING-BALL, 6204
-
92045C92045-1304 BEARING-BALL, 626MC3BEARING-BALL, 626MC3
-
92045D92045-1360 BEARING-BALL, TMB002BEARING-BALL, TMB002
-
92045E92045-1450 BEARING-BALL, 16101JRXC3BEARING-BALL, 16101JRXC3
-
9204992049-1188 SEAL-OIL, SD20407GSSEAL-OIL, SD20407GS
-
92049A92049-1292 SEAL-OIL, TC25375SEAL-OIL, TC25375
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1437 PLUG, DRAINPLUG, DRAIN
-
9207192071-042 GROMMET, BREATHERGROMMET, BREATHER
-
9215192151-1135 BOLT, 6X35BOLT, 6X35
-
9219092190-1116 TUBE, 6X9X330TUBE, 6X9X330
-
9221092210-0076 NUT, 8MMNUT, 8MM
