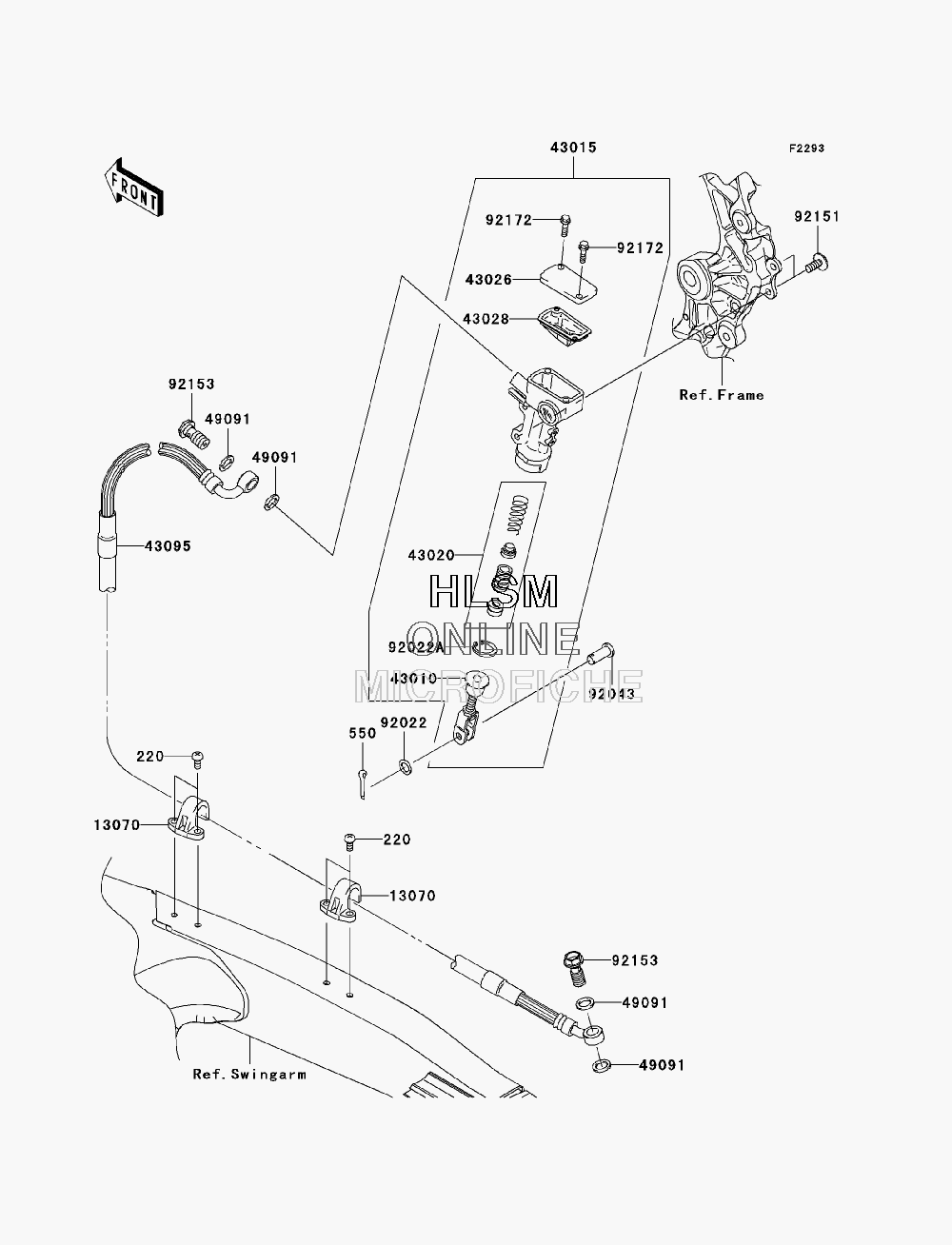

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX450F Monster Energy (KX450E9FA) - 2009 года выпуска`
-
№АртикулНазвание
-
220220AA0510 SCREW-PAN-CROSS, 5X10SCREW-PAN-CROSS, 5X10
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
1307013070-0048 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
4301043010-1087 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0004 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1086 CAP-BRAKECAP-BRAKE
-
4302843028-1092 DIAPHRAGMDIAPHRAGM
-
4309543095-0448 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9204392043-0004 PINPIN
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217292172-1064 SCREWSCREW
