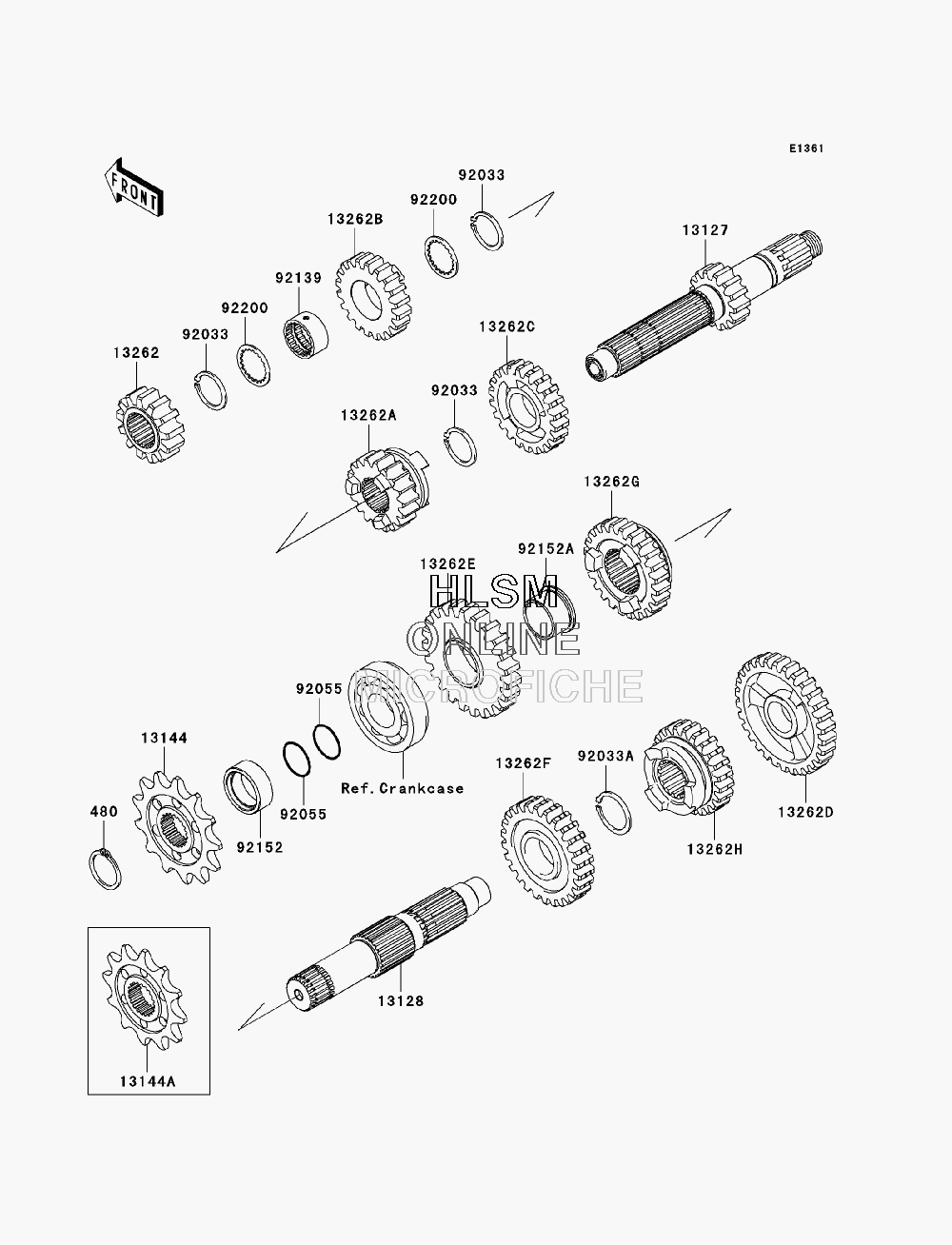

TRANSMISSION для Kawasaki KX250F Monster Energy (KX250W9FA) - 2009 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2200 CIRCLIP-TYPE-C,22MM
    CIRCLIP-TYPE-C,22MM
  • 13127
    13127-0064 SHAFT-TRANSMISSION INPUT,14T
    SHAFT-TRANSMISSION INPUT,14T
  • 13128
    13128-0046 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0035 SPROCKET-OUTPUT,13T
    SPROCKET-OUTPUT,13T
  • 13144A
    13144-0036 SPROCKET-OUTPUT,12T
    SPROCKET-OUTPUT,12T
  • 13262
    13262-0668 GEAR,INPUT 2ND,13T
    GEAR,INPUT 2ND,13T
  • 13262A
    13262-0669 GEAR,INPUT 3RD,18T
    GEAR,INPUT 3RD,18T
  • 13262B
    13262-0670 GEAR,INPUT 4TH,20T
    GEAR,INPUT 4TH,20T
  • 13262C
    13262-0671 GEAR,INPUT 5TH,22T
    GEAR,INPUT 5TH,22T
  • 13262D
    13262-0672 GEAR,OUTPUT LOW,30T
    GEAR,OUTPUT LOW,30T
  • 13262E
    13262-0673 GEAR,OUTPUT 2ND,23T
    GEAR,OUTPUT 2ND,23T
  • 13262F
    13262-0674 GEAR,OUTPUT 3RD,26T
    GEAR,OUTPUT 3RD,26T
  • 13262G
    13262-0675 GEAR,OUTPUT 4TH,24T
    GEAR,OUTPUT 4TH,24T
  • 13262H
    13262-0676 GEAR,OUTPUT 5TH,23T
    GEAR,OUTPUT 5TH,23T
  • 92033
    92033-0057 RING-SNAP
    RING-SNAP
  • 92033A
    92033-1270 RING-SNAP
    RING-SNAP
  • 92055
    92055-055 RING-O,19.5X1.5
    RING-O,19.5X1.5
  • 92139
    92139-0241 BUSHING
    BUSHING
  • 92152
    92152-0683 COLLAR,22X30X11.4
    COLLAR,22X30X11.4
  • 92152A
    92152-0687 COLLAR
    COLLAR
  • 92200
    92200-0442 WASHER,22X26.6X1
    WASHER,22X26.6X1
