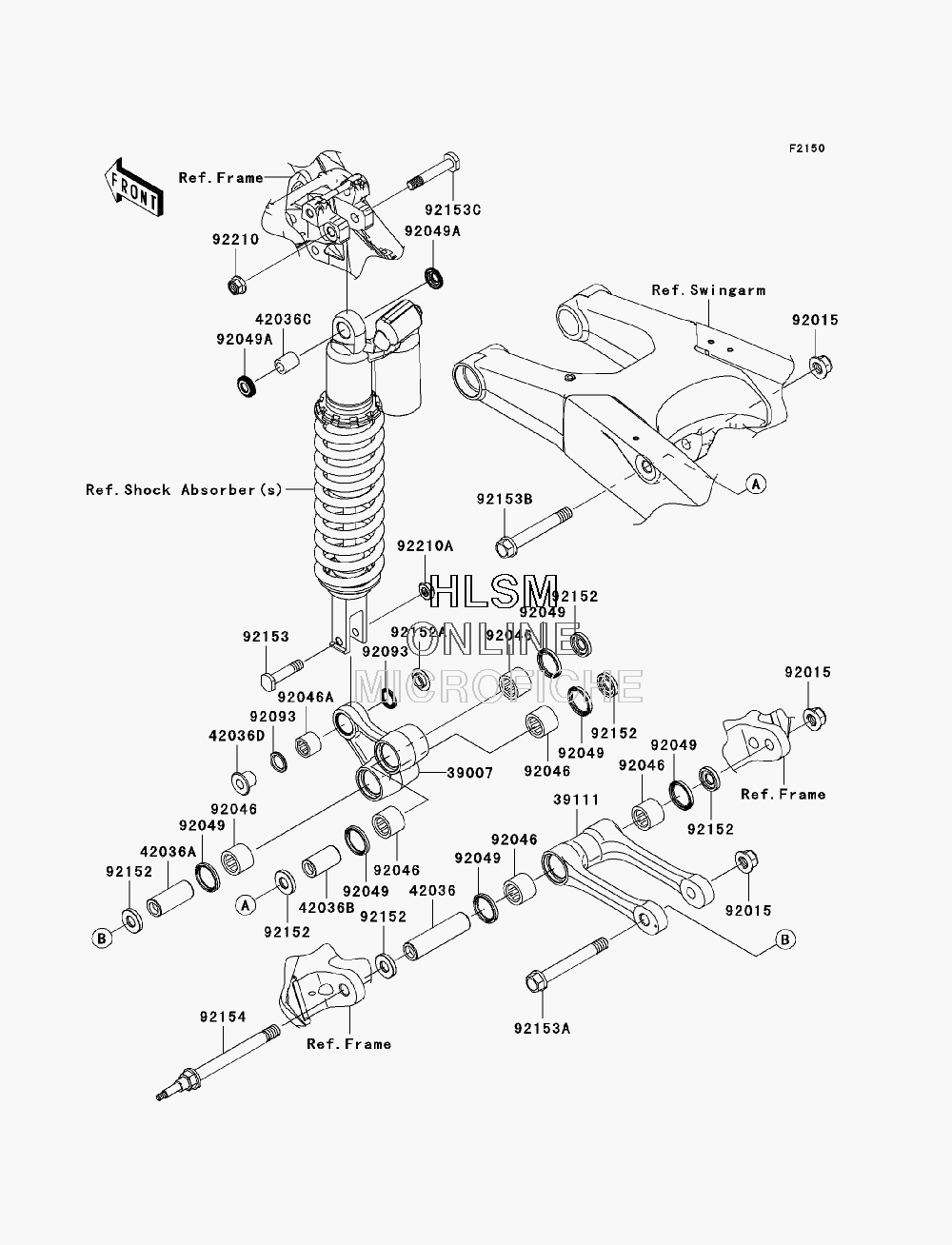

SUSPENSION - REAR для Kawasaki KX250F (KX250W9F) - 2009 года выпуска`
-
№АртикулНазвание
-
3900739007-0140 ARM-SUSP,UNI TRAKARM-SUSP,UNI TRAK
-
3911139111-0064 ROD-TIE,SUSPENSIONROD-TIE,SUSPENSION
-
4203642036-0020 SLEEVE,ROD,L=78.4SLEEVE,ROD,L=78.4
-
42036A42036-0021 SLEEVE,SUSPENSION ARM,L=49SLEEVE,SUSPENSION ARM,L=49
-
42036B42036-0022 SLEEVE,SUSPENSION ARM,L=37SLEEVE,SUSPENSION ARM,L=37
-
42036C42036-0030 SLEEVE,10X16X19.3SLEEVE,10X16X19.3
-
42036D42036-1351 SLEEVESLEEVE
-
9201592015-1433 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
-
9204692046-1151 BEARING-NEEDLE,F-2016BEARING-NEEDLE,F-2016
-
92046A92046-1301 BEARING-NEEDLE,7E-HVS16X22X12BEARING-NEEDLE,7E-HVS16X22X12
-
9204992049-0063 SEAL-OIL,SDO26X32X4SEAL-OIL,SDO26X32X4
-
92049A92049-0069 SEAL-OILSEAL-OIL
-
9209392093-1436 SEALSEAL
-
9215292152-0425 COLLARCOLLAR
-
92152A92152-1139 COLLARCOLLAR
-
9215392153-0937 BOLT,10X45BOLT,10X45
-
92153A92153-0938 BOLT,FLANGED,12X95BOLT,FLANGED,12X95
-
92153B92153-0939 BOLT,FLANGED,12X86BOLT,FLANGED,12X86
-
92153C92153-1386 BOLT,10X58BOLT,10X58
-
9215492154-0106 BOLT,12MM,L=122BOLT,12MM,L=122
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1184 NUT,LOCK,10MMNUT,LOCK,10MM
