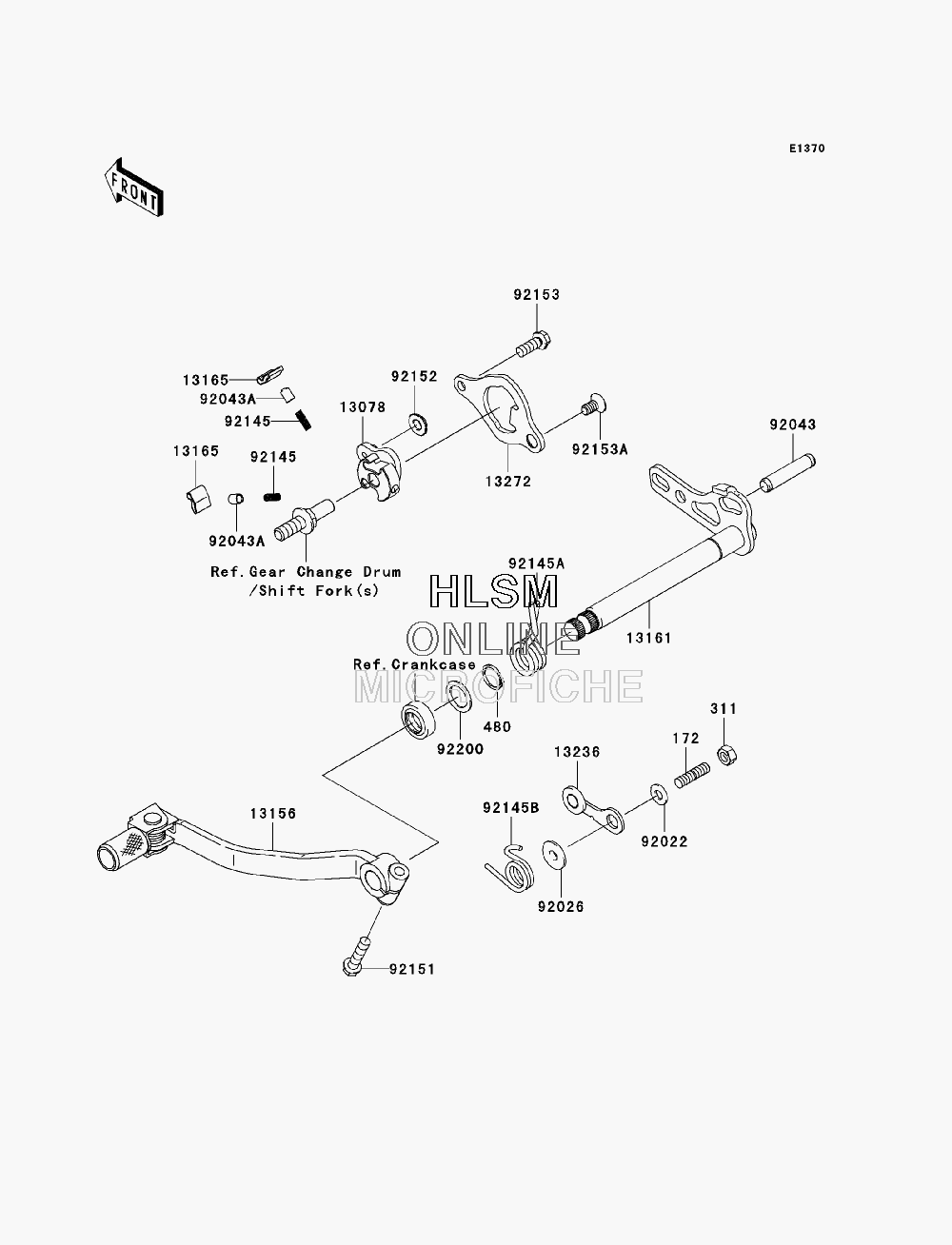

GEAR CHANGE MECHANISM для Kawasaki KX250F (KX250W9F) - 2009 года выпуска`
-
№АртикулНазвание
-
172172BA0612 BOLT-STUD,6X12BOLT-STUD,6X12
-
311311BA0600 NUT-HEXNUT-HEX
-
480480J1400 CIRCLIP-TYPE-C,14MMCIRCLIP-TYPE-C,14MM
-
1307813078-0019 RATCHETRATCHET
-
1315613156-0124 LEVER-CHANGE,PEDALLEVER-CHANGE,PEDAL
-
1316113161-0067 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-0018 PAWLPAWL
-
1323613236-0161 LEVER-COMP,POSITIONLEVER-COMP,POSITION
-
1327213272-0438 PLATEPLATE
-
9202292022-1827 WASHER,6X12.8X1.2WASHER,6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9204392043-0017 PIN,8X39PIN,8X39
-
92043A92043-1676 PIN,PLUNGERPIN,PLUNGER
-
9214592145-0453 SPRINGSPRING
-
92145A92145-0608 SPRING, RETURNSPRING, RETURN
-
92145B92145-0609 SPRING,POSITIONSPRING,POSITION
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215292152-1414 COLLARCOLLAR
-
9215392153-0825 BOLT,6X16BOLT,6X16
-
92153A92153-1669 BOLT,TORX,6X8.7BOLT,TORX,6X8.7
-
9220092200-0029 WASHER,14.2X20X1WASHER,14.2X20X1
