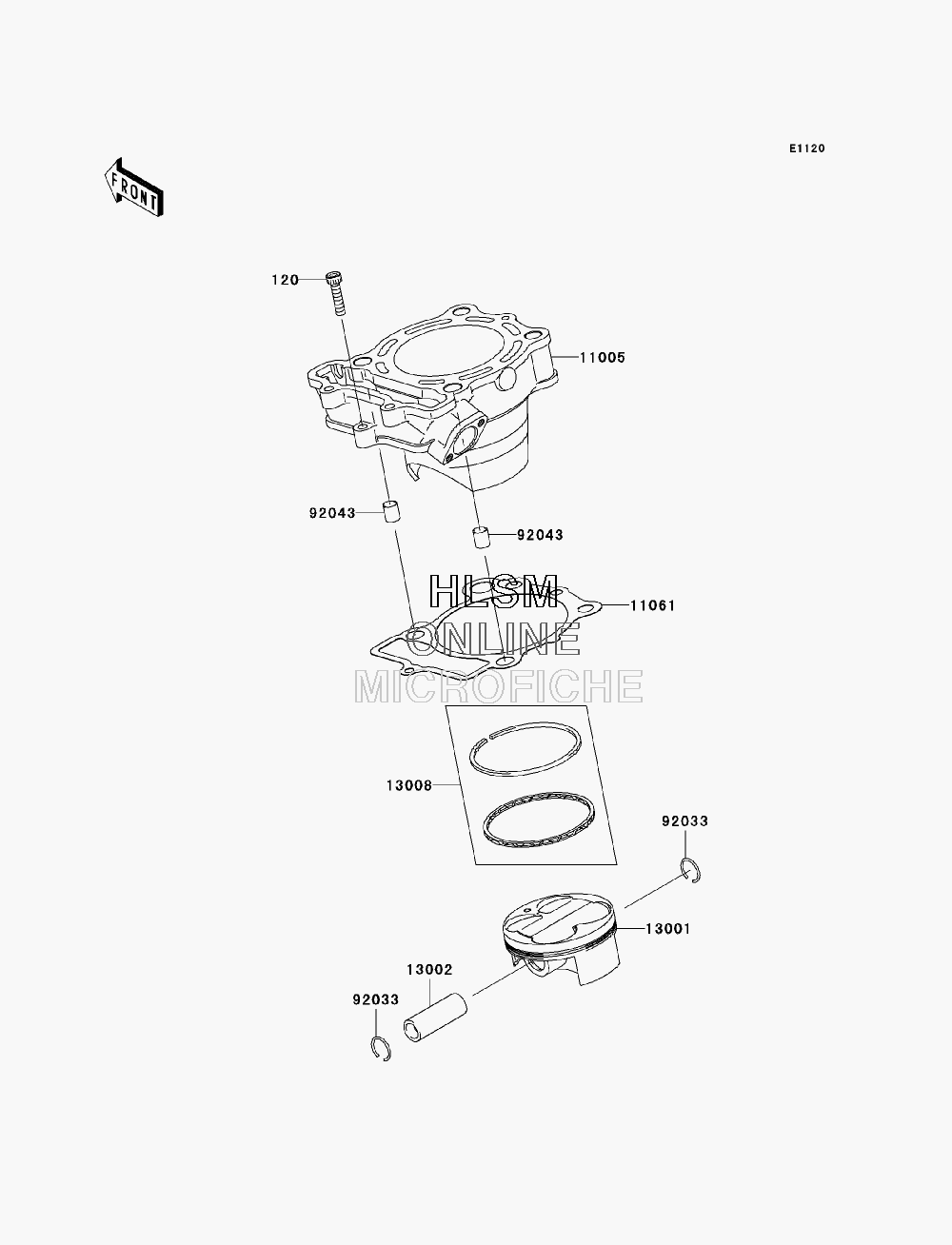

CYLINDER - PISTON(S) для Kawasaki KX250F (KX250W9F) - 2009 года выпуска`
-
№АртикулНазвание
-
120120CA0625 BOLT-SOCKET,6X25BOLT-SOCKET,6X25
-
1100511005-0110 CYLINDER-ENGINECYLINDER-ENGINE
-
1106111061-0357 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-0088 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0024 PIN-PISTONPIN-PISTON
-
1300813008-0028 RING-SET-PISTONRING-SET-PISTON
-
9203392033-1161 RING-SNAP,PISTON PINRING-SNAP,PISTON PIN
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
