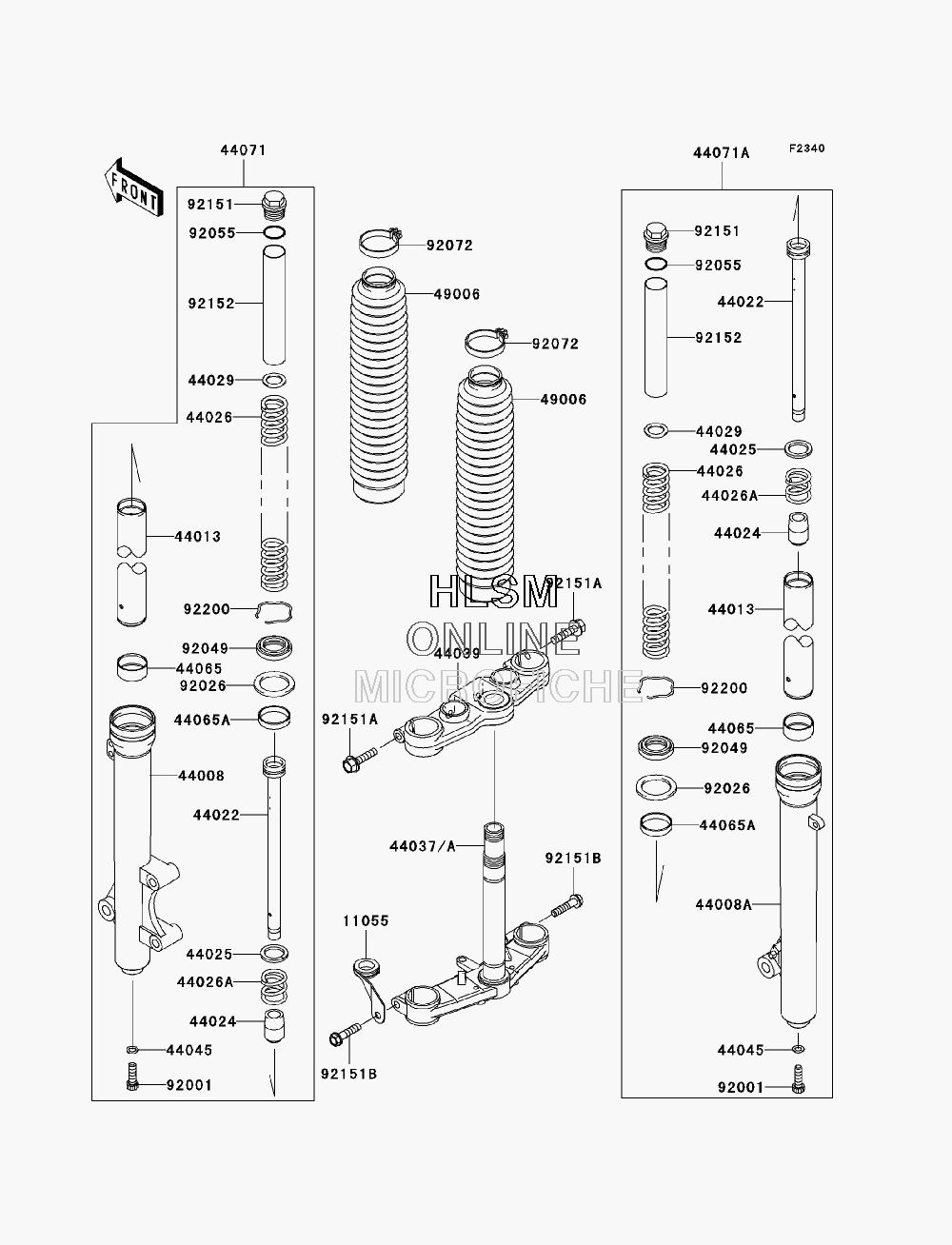

FRONT FORK для Kawasaki KLX140L Monster Energy (KLX140B9FA) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-0460 BRACKET, CABLE GUIDEBRACKET, CABLE GUIDE
-
4400844008-0038-458 PIPE-FORK OUTER, LEFT HAND, P. SILVERPIPE-FORK OUTER, LEFT HAND, P. SILVER
-
44008A44008-0039-458 PIPE-FORK OUTER, RIGHT HAND, P. SILVERPIPE-FORK OUTER, RIGHT HAND, P. SILVER
-
4401344013-0112 PIPE-FORK INNERPIPE-FORK INNER
-
4402244022-0020 CYLINDER-FORKCYLINDER-FORK
-
4402444024-1067 CAP-OIL-LOCKCAP-OIL-LOCK
-
4402544025-1065 RING-FORK PISTONRING-FORK PISTON
-
4402644026-0116 SPRING-FRONT FORKSPRING-FRONT FORK
-
44026A44026-1417 SPRING-FRONT FORKSPRING-FRONT FORK
-
4402944029-1136 SEAT-FORK SPRINGSEAT-FORK SPRING
-
4403744037-0072-21 HOLDER-FORK UNDER, F.BLACKHOLDER-FORK UNDER, F.BLACK
-
4403944039-0066 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1123 BUSHING-FRONT FORK, INNER PIPEBUSHING-FRONT FORK, INNER PIPE
-
44065A44065-1133 BUSHING-FRONT FORKBUSHING-FRONT FORK
-
4407144071-0466-458 DAMPER-ASSY, FORK, LEFT HAND, P. SILVERDAMPER-ASSY, FORK, LEFT HAND, P. SILVER
-
44071A44071-0467-458 DAMPER-ASSY, FORK, RIGHT HAND, P. SILVERDAMPER-ASSY, FORK, RIGHT HAND, P. SILVER
-
4900649006-0057-BD BOOT, FORK, BLACKBOOT, FORK, BLACK
-
9200192001-1464 BOLT, FORK CYLINDERBOLT, FORK CYLINDER
-
9202692026-1365 SPACERSPACER
-
9204992049-1524 SEAL-OIL, FORK OUTER TUBESEAL-OIL, FORK OUTER TUBE
-
9205592055-1367 RING-O, FORK TOPRING-O, FORK TOP
-
9207292072-0107 BAND, BOOTBAND, BOOT
-
9215192151-1262 BOLT, FORK TOPBOLT, FORK TOP
-
92151A92151-1635 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
92151B92151-1636 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
9215292152-0643 COLLAR, FORK, L=150COLLAR, FORK, L=150
-
9220092200-1496 WASHERWASHER
