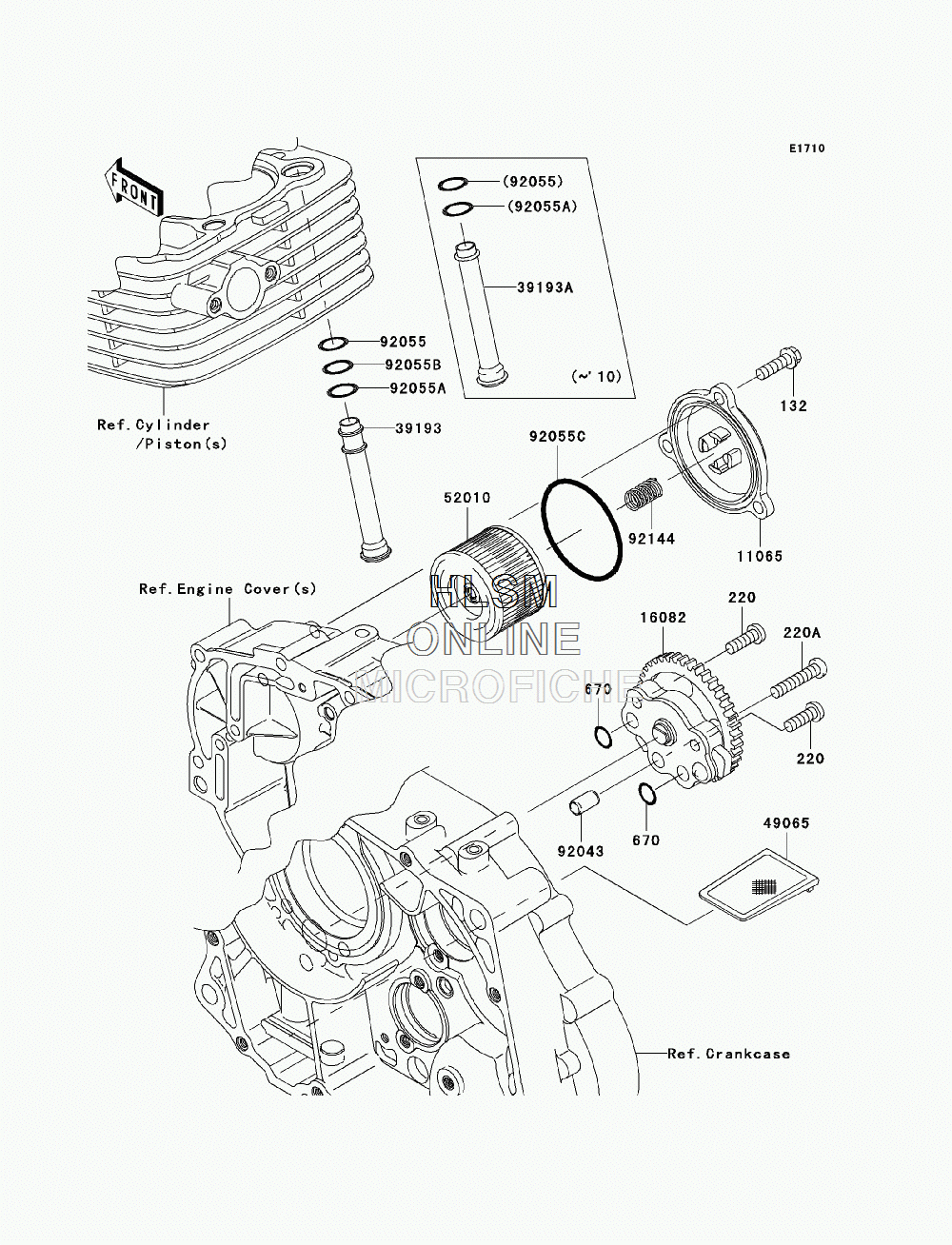

OIL PUMP для Kawasaki KLX140 (KLX140A9F) - 2009 года выпуска`
-
№АртикулНазвание
-
132132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
220220AA0618 SCREW-PAN-CROS, 6X18SCREW-PAN-CROS, 6X18
-
220A220AA0630 SCREW-PAN-CROSS, 6X30SCREW-PAN-CROSS, 6X30
-
670670B1510 O-RING, 9.8X1.9O-RING, 9.8X1.9
-
1106511065-0255 CAPCAP
-
1608216082-1159 PUMP-ASSY-OILPUMP-ASSY-OIL
-
39193A39193-1067 PIPE-OILPIPE-OIL
-
4906549065-0021 FILTER-OILFILTER-OIL
-
5201052010-1053 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9205592055-0061 O-RING, 9.8X1.9O-RING, 9.8X1.9
-
92055A92055-0152 O-RING, 12.8X1.9O-RING, 12.8X1.9
-
92055C92055-1685 O-RING, 59.6X2.4O-RING, 59.6X2.4
-
9214492144-1892 SPRINGSPRING
