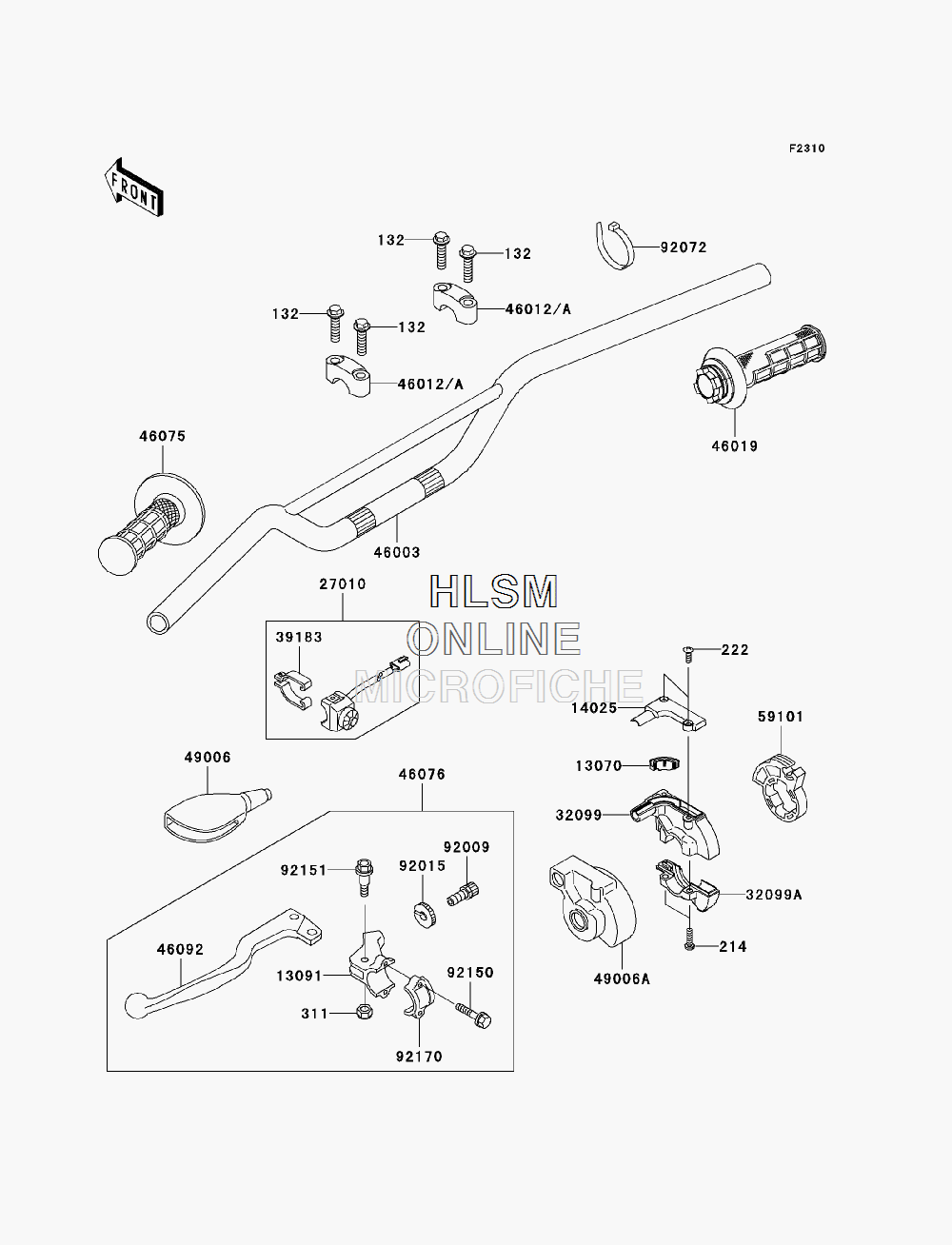

HANDLEBAR для Kawasaki KX65A (KX65A8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 132
    132BC0830 BOLT-FLANGED-SMALL, 8X30
    BOLT-FLANGED-SMALL, 8X30
  • 214
    214C0518 SCREW-PAN+-, 5X18
    SCREW-PAN+-, 5X18
  • 222
    222E0412 SCREW-CSK-RD-CROS, 4X12
    SCREW-CSK-RD-CROS, 4X12
  • 311
    311AA0500 NUT-HEX
    NUT-HEX
  • 13070
    13070-1074 GUIDE, THROTTLE
    GUIDE, THROTTLE
  • 13091
    13091-1728 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 14025
    14025-1646 COVER, THROTTLE CASE UPPER
    COVER, THROTTLE CASE UPPER
  • 27010
    27010-0035 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-1036 CASE, THROTTLE UPPER
    CASE, THROTTLE UPPER
  • 32099A
    32099-1044 CASE, THROTTLE LOWER
    CASE, THROTTLE LOWER
  • 39183
    39183-1059 BAND-ASSY, ENGINE STOP SWITCH
    BAND-ASSY, ENGINE STOP SWITCH
  • 46003
    46003-0030-458 HANDLE, (P.SILVER)
    HANDLE, (P.SILVER)
  • 46012A
    46012-0011-458 HOLDER-HANDLE, UPPER, (P.SILVER)
    HOLDER-HANDLE, UPPER, (P.SILVER)
  • 46019
    46019-1054 GRIP-ASSY, THROTTLE
    GRIP-ASSY, THROTTLE
  • 46075
    46075-1024 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-1202 LEVER-ASSY-GRIP, CLUTCH
    LEVER-ASSY-GRIP, CLUTCH
  • 46092
    46092-1165 LEVER-GRIP, CLUTCH
    LEVER-GRIP, CLUTCH
  • 49006
    49006-1017 BOOT, LEVER HOLDER
    BOOT, LEVER HOLDER
  • 49006A
    49006-1097 BOOT, THROTTLE CASE
    BOOT, THROTTLE CASE
  • 59101
    59101-1110 REEL, THROTTLE
    REEL, THROTTLE
  • 92009
    92009-1435 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92015
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 92072
    92072-0055 BAND, L=100
    BAND, L=100
  • 92150
    92150-1474 BOLT
    BOLT
  • 92151
    92151-1103 BOLT, LEVER SET, 5MM
    BOLT, LEVER SET, 5MM
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
