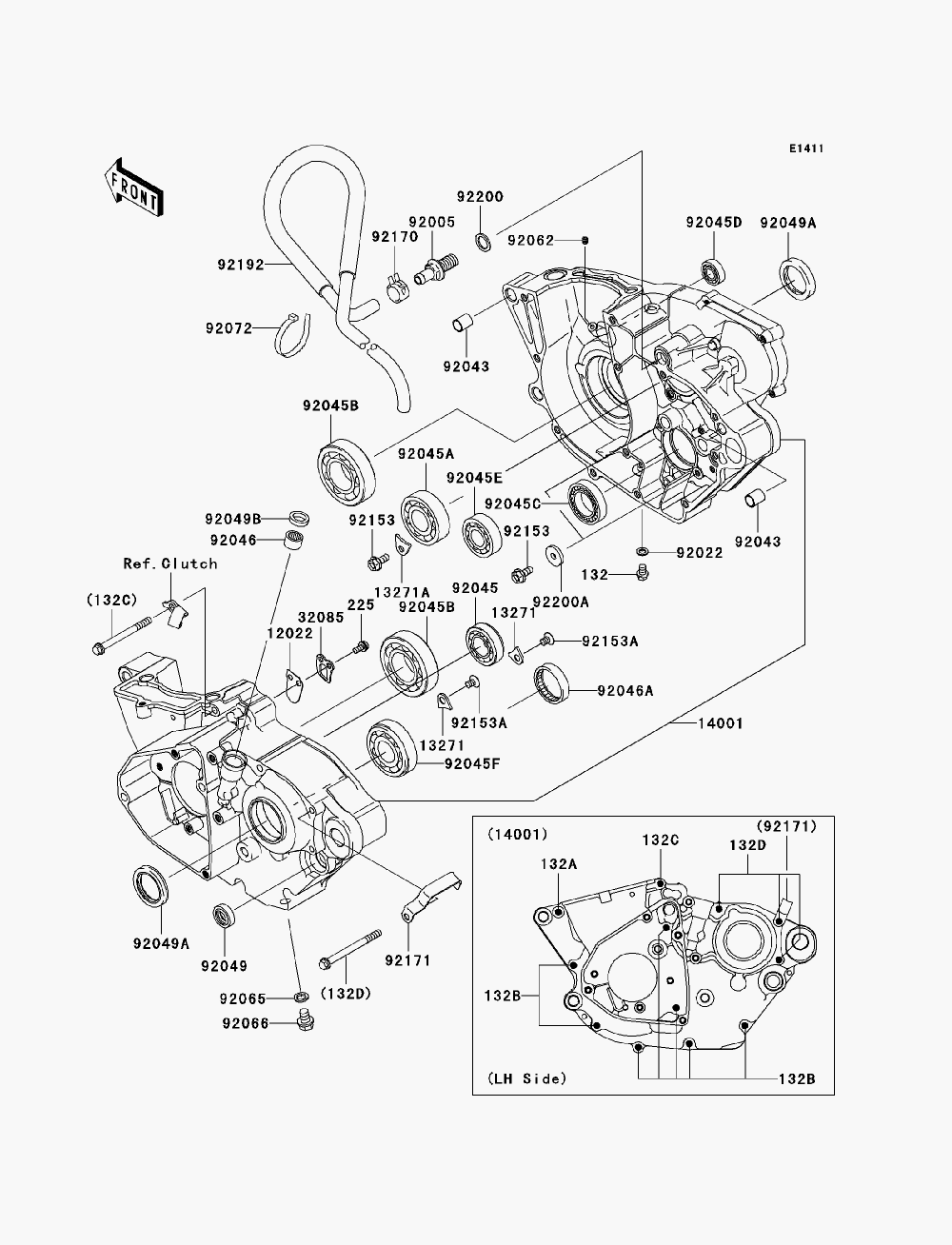

CRANKCASE для Kawasaki KX250F (KX250T8F) - 2008 года выпуска`
-
№АртикулНазвание
-
132132G0608 BOLT-FLANGED-SMALL,6X8BOLT-FLANGED-SMALL,6X8
-
132A132G0640 BOLT-FLANGED-SMALL,6X40BOLT-FLANGED-SMALL,6X40
-
132B132G0660 BOLT-FLANGED-SMALL,6X60BOLT-FLANGED-SMALL,6X60
-
132C132G0665 BOLT-FLANGED-SMALL,6X65BOLT-FLANGED-SMALL,6X65
-
132D132G0670 BOLT-FLANGED-SMALL,6X70BOLT-FLANGED-SMALL,6X70
-
225225D0510 SCREW-PAN-WSP-CROS,5X10SCREW-PAN-WSP-CROS,5X10
-
1202212022-0006 VALVE-REEDVALVE-REED
-
1327113271-0886 PLATEPLATE
-
13271A13271-0887 PLATEPLATE
-
1400114001-0123 SET-CRANKCASESET-CRANKCASE
-
3208532085-0011 STOPPER,VALVE-REEDSTOPPER,VALVE-REED
-
9200592005-0014 FITTING,BREATHERFITTING,BREATHER
-
9202292022-304 WASHER,6.2X11X1WASHER,6.2X11X1
-
9204392043-4009 PIN,10.1X12X14PIN,10.1X12X14
-
9204592045-0013 BEARING-BALL,3TM-SX0391ZC3BEARING-BALL,3TM-SX0391ZC3
-
92045A92045-0051 BEARING-BALL,22X50X14BEARING-BALL,22X50X14
-
92045B92045-0052 BEARING-BALL,CRANKSHAFT MAINBEARING-BALL,CRANKSHAFT MAIN
-
92045C92045-1058 BEARING-BALL,6905ZBEARING-BALL,6905Z
-
92045D92045-1123 BEARING-BALL,#628BEARING-BALL,#628
-
92045E92045-1291 BEARING-BALL,TMB203BEARING-BALL,TMB203
-
92045F92045-1335 BEARING-BALL,SX04A81C3BEARING-BALL,SX04A81C3
-
9204692046-1010 BEARING-NEEDLE,HK1210BEARING-NEEDLE,HK1210
-
92046A92046-1221 BEARING-NEEDLE,7E-HKS33X38X8BEARING-NEEDLE,7E-HKS33X38X8
-
9204992049-0015 SEAL-OIL,SD2 14 22 6-1 NSSEAL-OIL,SD2 14 22 6-1 NS
-
92049A92049-0030 SEAL-OIL,TC 30 40 7SEAL-OIL,TC 30 40 7
-
92049B92049-1262 SEAL-OIL,AG0353-F0SEAL-OIL,AG0353-F0
-
9206292062-0004 NOZZLENOZZLE
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9206692066-1437 PLUG,DRAINPLUG,DRAIN
-
9207292072-3874 BANDBAND
-
9215392153-0878 BOLT,6X14BOLT,6X14
-
92153A92153-1736 BOLT,TORX,6X6.7BOLT,TORX,6X6.7
-
9217092170-1938 CLAMPCLAMP
-
9217192171-0579 CLAMPCLAMP
-
9219292192-0102 TUBE,BREATHERTUBE,BREATHER
-
9220092200-0087 WASHER,12.5X18X1.6WASHER,12.5X18X1.6
-
92200A92200-0120 WASHER,6X20X3.2WASHER,6X20X3.2
