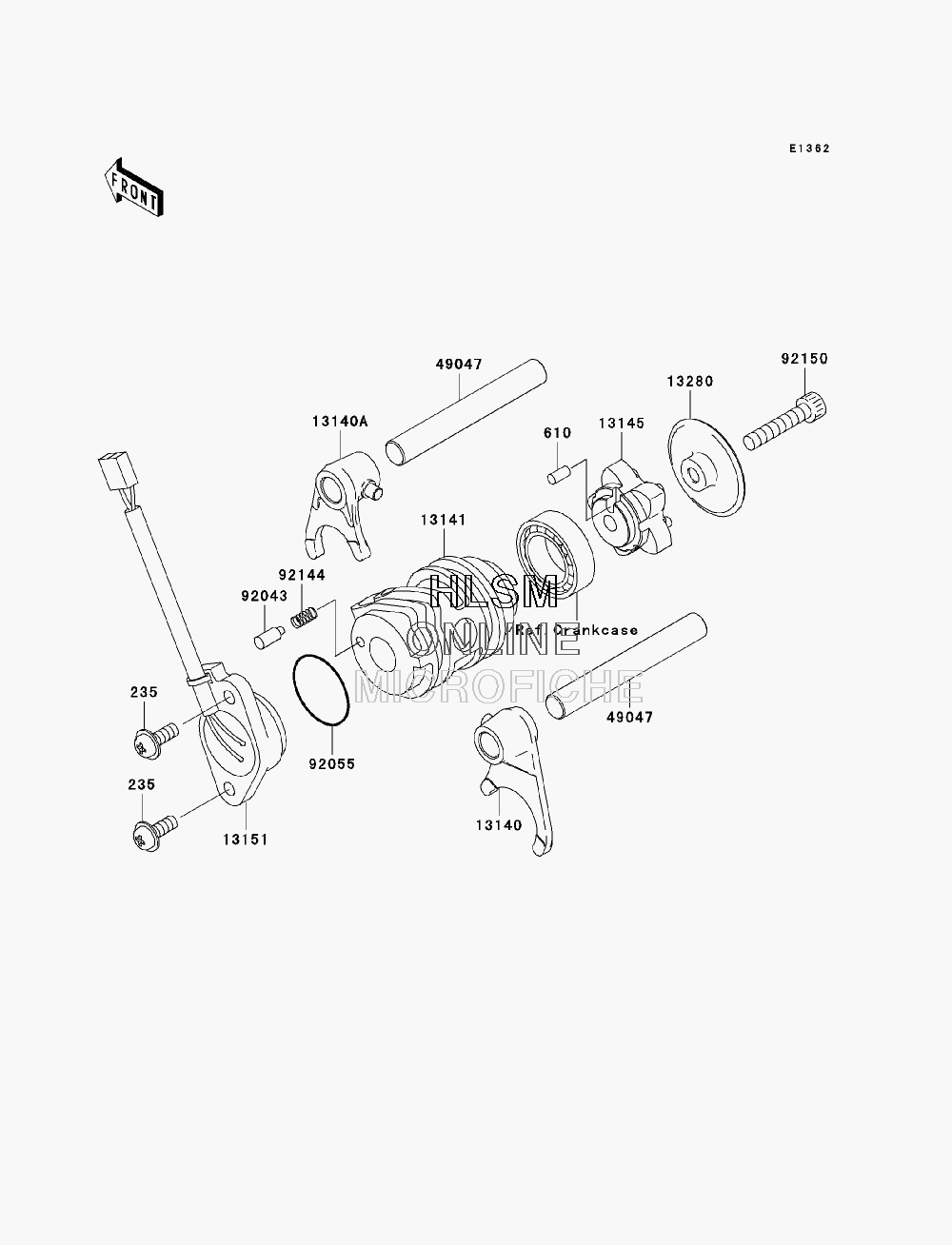

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLX110 (KLX110A8F) - 2008 года выпуска`
-
№АртикулНазвание
-
235235AA0514 SCREW-PAN-WP-CROS, 5X14SCREW-PAN-WP-CROS, 5X14
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1314013140-0058 FORK-SHIFT, LOW & 3RDFORK-SHIFT, LOW & 3RD
-
13140A13140-0059 FORK-SHIFT, 2ND & 4THFORK-SHIFT, 2ND & 4TH
-
1314113141-0038 DRUM-CHANGEDRUM-CHANGE
-
1314513145-1081 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-0021 SWITCH-COMP, NEUTRALSWITCH-COMP, NEUTRAL
-
1328013280-1228 HOLDERHOLDER
-
4904749047-1058 ROD-SHIFTROD-SHIFT
-
9204392043-1385 PINPIN
-
9205592055-091 RING-ORING-O
-
9214492144-1245 SPRINGSPRING
-
9215092150-1433 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
