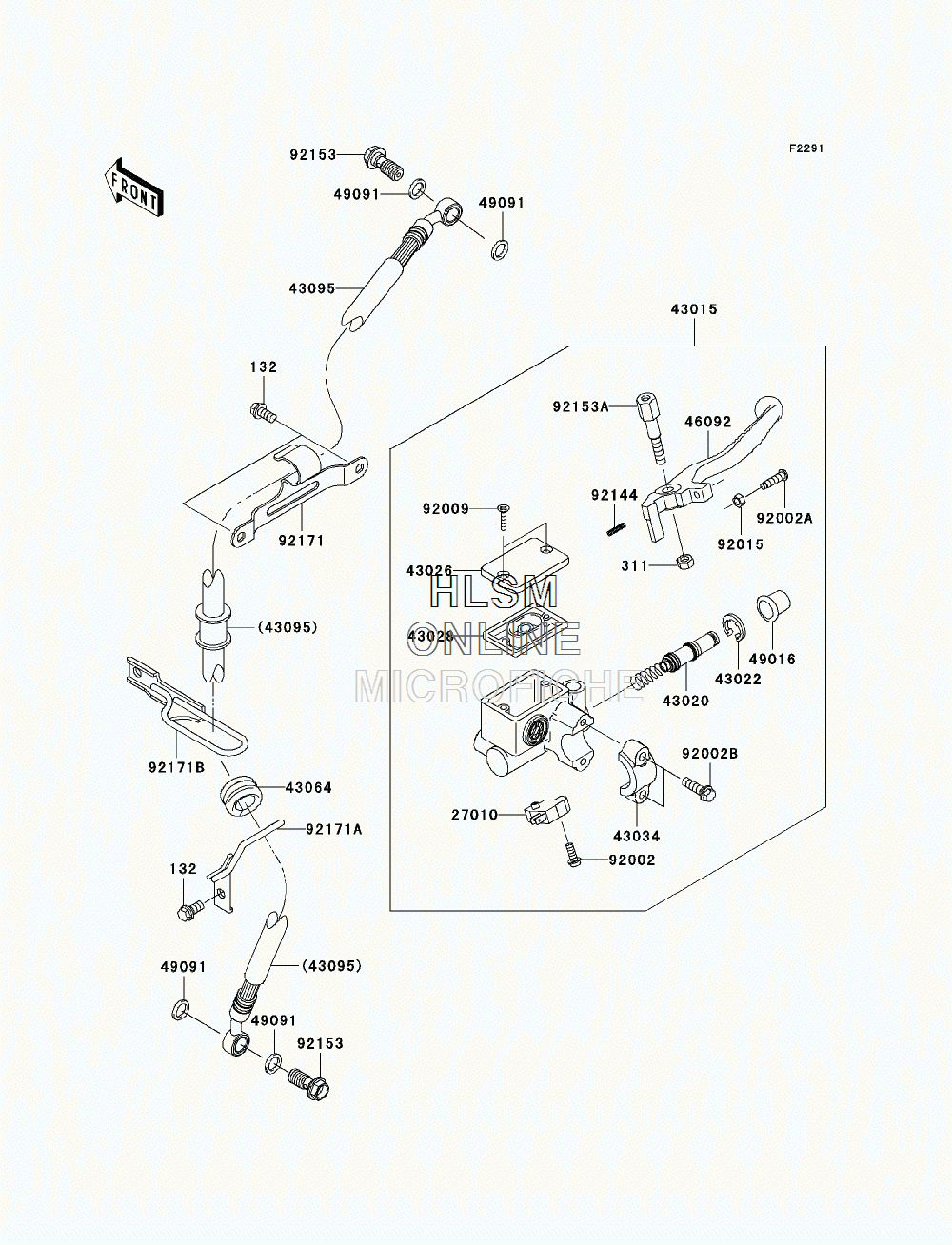

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KL650E KLR650 - 2008 года выпуска

  • №
    Артикул
    Название
  • 132
    132BB0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 311
    311BB0600 NUT-HEX,6MM
    NUT-HEX,6MM
  • 27010
    27010-0025 SWITCH,BRAKE
    SWITCH,BRAKE
  • 43015
    43015-0077 CYLINDER-ASSY-MASTER, FRONT
    CYLINDER-ASSY-MASTER, FRONT
  • 43020
    43020-1104 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43022
    43022-1010 STOPPER-BRAKE,PISTON
    STOPPER-BRAKE,PISTON
  • 43026
    43026-1074 CAP-BRAKE
    CAP-BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER-BRAKE,MASTER CYLINDER
    HOLDER-BRAKE,MASTER CYLINDER
  • 43064
    43064-007 GROMMET,HOSE CLAMP
    GROMMET,HOSE CLAMP
  • 43095
    43095-0255 HOSE-BRAKE, FRONT
    HOSE-BRAKE, FRONT
  • 46092
    46092-1175 LEVER-GRIP, FRONT BRAKE
    LEVER-GRIP, FRONT BRAKE
  • 49016
    49016-1044 COVER-SEAL,MASTER CYLINDER
    COVER-SEAL,MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL,10.1X14.5X1.5
    WASHER-SEAL,10.1X14.5X1.5
  • 92002
    92002-1323 BOLT,SCREW,4X12
    BOLT,SCREW,4X12
  • 92002A
    92002-1893 BOLT,ADJUST
    BOLT,ADJUST
  • 92002B
    92002-1894 BOLT
    BOLT
  • 92009
    92009-1458 SCREW,4MM
    SCREW,4MM
  • 92015
    92015-1642 NUT,ADJUST
    NUT,ADJUST
  • 92144
    92144-1103 SPRING, RETURN
    SPRING, RETURN
  • 92153
    92153-0627 BOLT,OIL,L=23
    BOLT,OIL,L=23
  • 92153A
    92153-0790 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92171
    92171-0756 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92171A
    92171-0943 CLAMP,BRAKE HOSE, LEFT HAND
    CLAMP,BRAKE HOSE, LEFT HAND
  • 92171B
    92171-1682 CLAMP,BRAKE HOSE, RIGHT HAND
    CLAMP,BRAKE HOSE, RIGHT HAND
