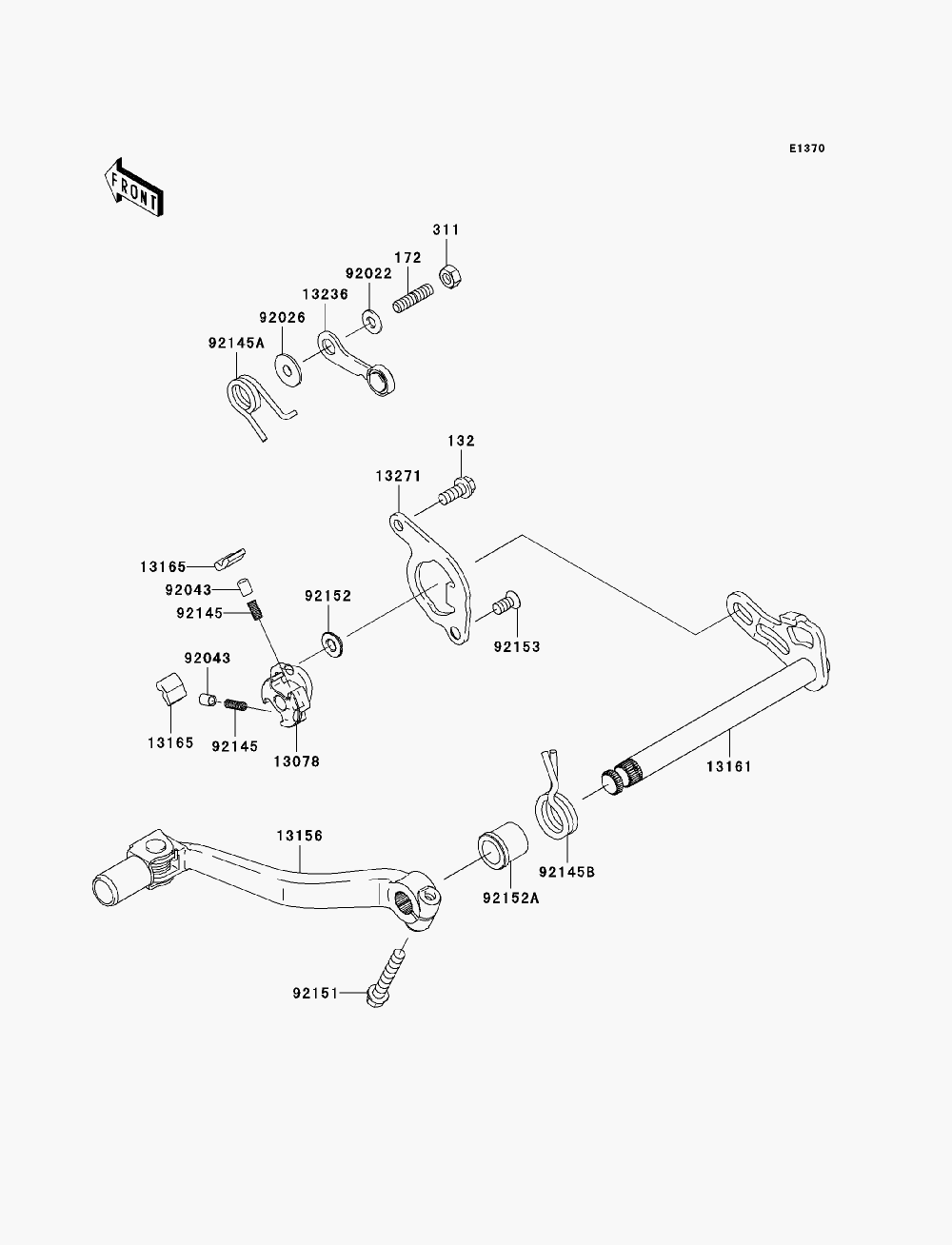

GEAR CHANGE MECHANISM для Kawasaki KX450F (KX450D7F) - 2007 года выпуска
-
№АртикулНазвание
-
132132G0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
172172G0612 BOLT-STUD,6X12BOLT-STUD,6X12
-
311311G0600 NUT-HEX,6MMNUT-HEX,6MM
-
1307813078-0012 RATCHETRATCHET
-
1315613156-0084 LEVER-CHANGELEVER-CHANGE
-
1316113161-0045 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-0017 PAWLPAWL
-
1323613236-0129 LEVER-COMP,POSITIONLEVER-COMP,POSITION
-
1327113271-0893 PLATE,PAWL GUIDEPLATE,PAWL GUIDE
-
9202292022-1827 WASHER,6X12.8X1.2WASHER,6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9204392043-1676 PIN,PLUNGERPIN,PLUNGER
-
9214592145-0453 SPRINGSPRING
-
92145A92145-0457 SPRINGSPRING
-
92145B92145-1493 SPRING, RETURNSPRING, RETURN
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215292152-1414 COLLARCOLLAR
-
92152A92152-1419 COLLAR, RETURN SPRINGCOLLAR, RETURN SPRING
-
9215392153-1669 BOLT,TORX,6X8.7BOLT,TORX,6X8.7
