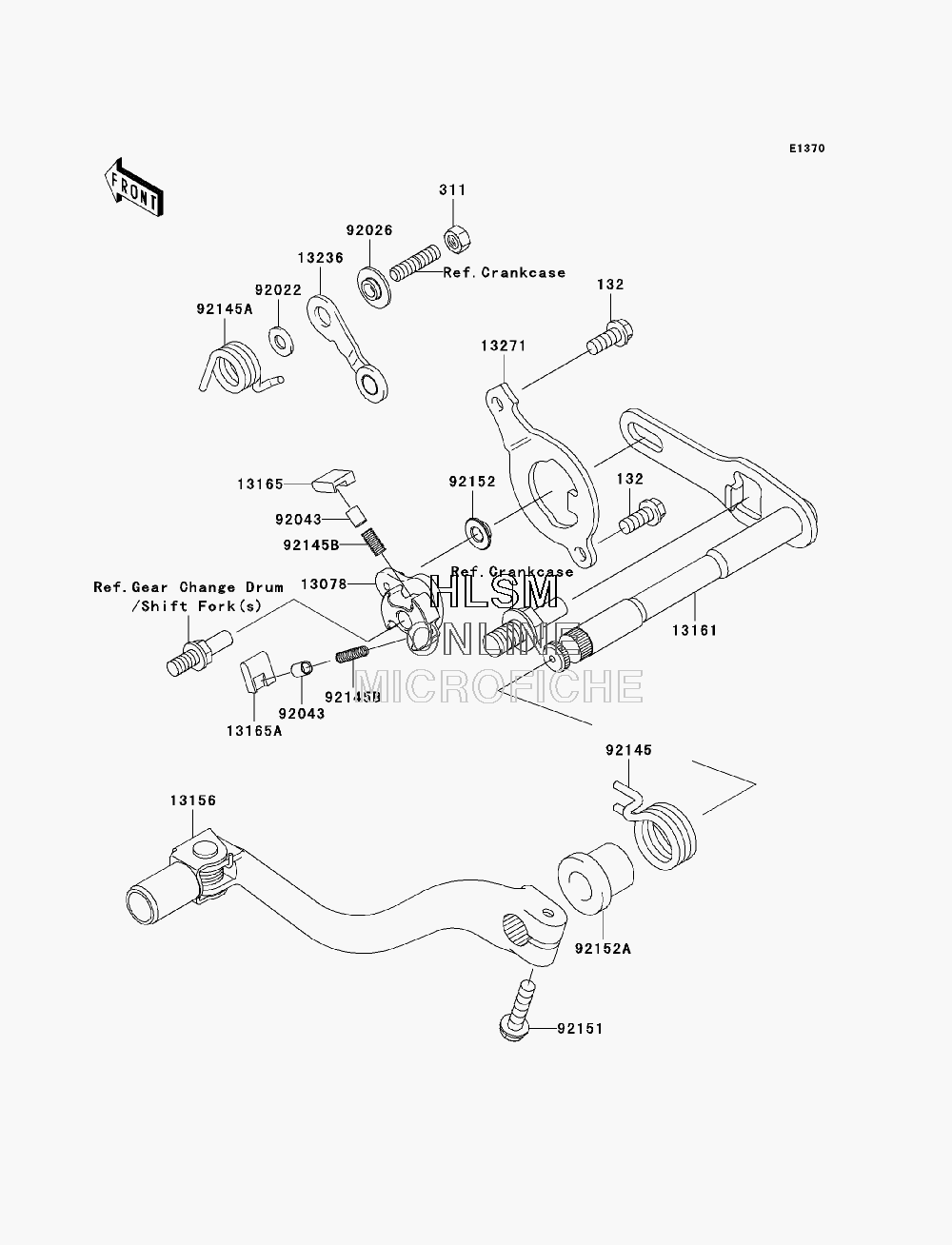

GEAR CHANGE MECHANISM для Kawasaki KX 250 (KX250R6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132G0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
311311G0600 NUT-HEX,6MMNUT-HEX,6MM
-
1307813078-1070 RATCHETRATCHET
-
1315613156-0049 LEVER-CHANGE,PEDALLEVER-CHANGE,PEDAL
-
1316113161-0029 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1316513165-1162 PAWLPAWL
-
13165A13165-1163 PAWLPAWL
-
1323613236-1391 LEVER-COMPLEVER-COMP
-
1327113271-1968 PLATEPLATE
-
9202292022-1827 WASHER,6X12.8X1.2WASHER,6X12.8X1.2
-
9202692026-1217 SPACERSPACER
-
9204392043-1676 PIN,PLUNGERPIN,PLUNGER
-
9214592145-1488 SPRING, RETURNSPRING, RETURN
-
92145A92145-1489 SPRING,POSITIONSPRING,POSITION
-
92145B92145-1490 SPRINGSPRING
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215292152-1414 COLLARCOLLAR
-
92152A92152-1417 COLLAR,SPRING SUPPORTCOLLAR,SPRING SUPPORT
