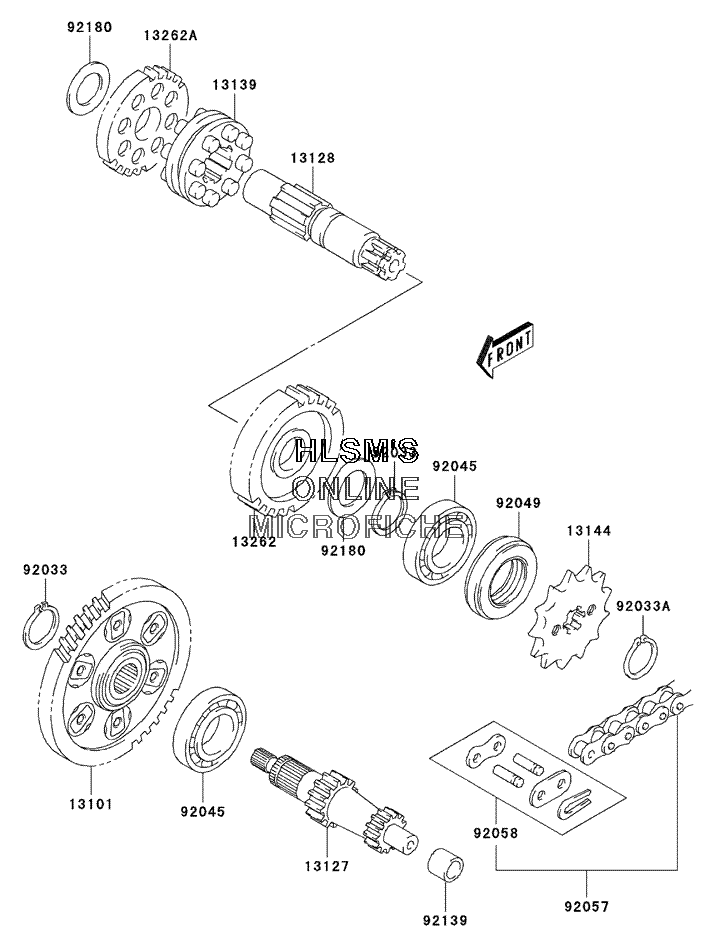

TRANSMISSION для Kawasaki KD 50 - 2006 года выпуска`
-
№АртикулНазвание
-
1310113101-S001 GEAR-ASSY., PRIMARY DRIVENGEAR-ASSY., PRIMARY DRIVEN
-
1312713127-S007 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-S009 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1313913139-S003 SHIFTERSHIFTER
-
1314413144-S007 SPROCKET-OUTPUT (13 TEETH)SPROCKET-OUTPUT (13 TEETH)
-
1326213262-S022 GEAR, OUTPUT LOW (40 TEETH)GEAR, OUTPUT LOW (40 TEETH)
-
13262A13262-S023 GEAR, OUTPUT 2ND (29 TEETH)GEAR, OUTPUT 2ND (29 TEETH)
-
9203392033-S026 RING-SNAP, DRIVEN GEARRING-SNAP, DRIVEN GEAR
-
92033A92033-S027 RING-SNAP, ENGINE SPROCKETRING-SNAP, ENGINE SPROCKET
-
9204592045-S035 BEARING-BALL, 17X40X12BEARING-BALL, 17X40X12
-
9204992049-S028 SEAL-OIL, CRANKSHAFT OIL (LEFT)SEAL-OIL, CRANKSHAFT OIL (LEFT)
-
9205792057-S008 CHAIN, DRIVE 78LJCHAIN, DRIVE 78LJ
-
9205892058-S002 JOINT-CHAINJOINT-CHAIN
-
9213992139-S009 BUSHING, COUNTER SHAFTBUSHING, COUNTER SHAFT
-
9218092180-S014 SHIM, 17X30X1.0SHIM, 17X30X1.0
