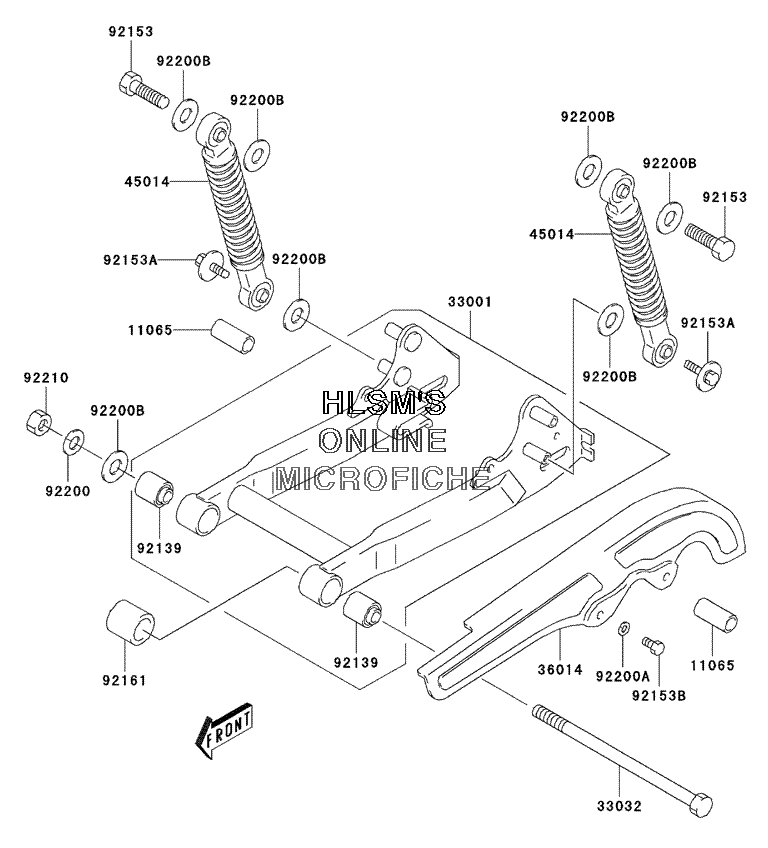

SUSPENSION - SWINGARM для Kawasaki KD 50 - 2006 года выпуска`
-
№АртикулНазвание
-
1106511065-S044 CAPCAP
-
3300133001-S007-530 ARM-COMP-SWING (B.SILVER)ARM-COMP-SWING (B.SILVER)
-
3303233032-S006 SHAFT-SWING ARMSHAFT-SWING ARM
-
3601436014-S006 CASE-CHAINCASE-CHAIN
-
4501445014-S020 SHOCK ABSORBERSHOCK ABSORBER
-
9213992139-S031 BUSHING, 10X22X28BUSHING, 10X22X28
-
9215392153-S324 BOLT, 10X35BOLT, 10X35
-
92153A92153-S325 BOLT, 6X12BOLT, 6X12
-
92153B92153-S326 BOLT, 6X12BOLT, 6X12
-
9216192161-S181 DAMPERDAMPER
-
9220092200-S091 WASHER, MAGNETO LOCKWASHER, MAGNETO LOCK
-
92200A92200-S102 WASHERWASHER
-
92200B92200-S173 WASHER, 10.5X22X1.6WASHER, 10.5X22X1.6
-
9221092210-S002 NUTNUT
