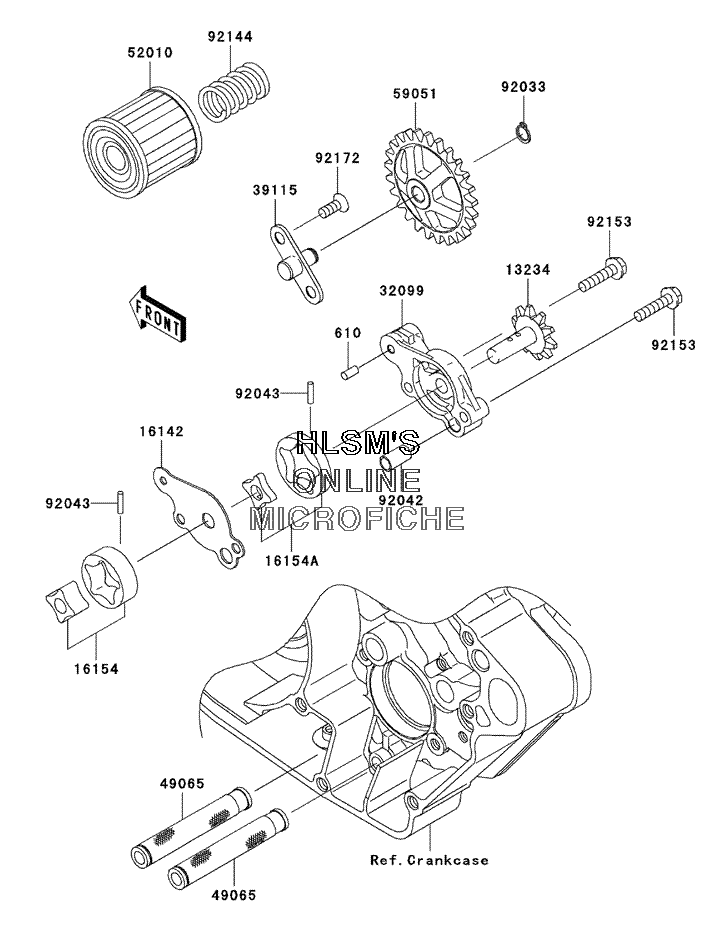

OIL PUMP для Kawasaki KX 250F - 2005 года выпуска`
-
№АртикулНазвание
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1323413234-0005 SHAFT, COMP, OIL PUMPSHAFT, COMP, OIL PUMP
-
1614216142-0003 COVER, PUMPCOVER, PUMP
-
1615416154-0020 ROTOR, PUMP, SCAVENGEROTOR, PUMP, SCAVENGE
-
16154A16154-0023 ROTOR, PUMP, FEEDROTOR, PUMP, FEED
-
3209932099-0016 CASE, OIL PUMPCASE, OIL PUMP
-
3911539115-0007 SHAFT, IDLER, OIL PUMPSHAFT, IDLER, OIL PUMP
-
4906549065-0009 FILTER, OILFILTER, OIL
-
5201052010-0001 ELEMENT, OIL FILTERELEMENT, OIL FILTER
-
5905159051-0009 GEAR, SPUR, PUMP IDLERGEAR, SPUR, PUMP IDLER
-
9203392033-1039 RING, SNAP, 8MMRING, SNAP, 8MM
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-0018 PIN, 2.5X11.8PIN, 2.5X11.8
-
9214492144-1761 SPRINGSPRING
-
9215392153-0749 BOLT, 5X22BOLT, 5X22
-
9217292172-0087 SCREW, 6X14SCREW, 6X14
