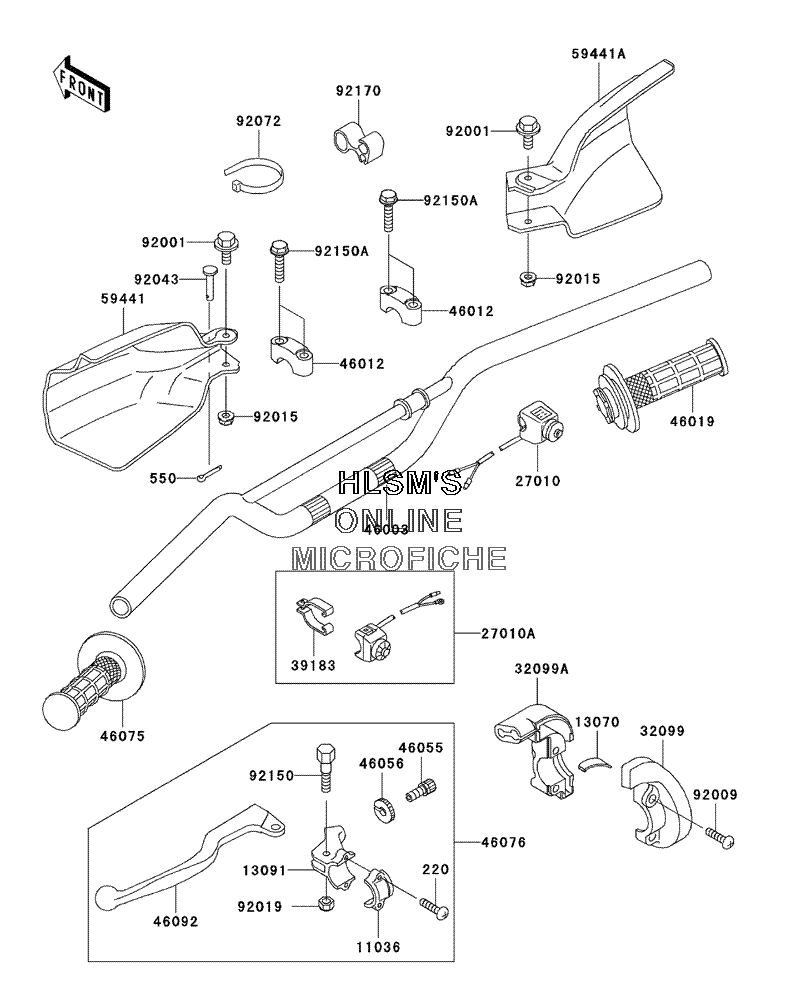

HANDLEBAR для Kawasaki KLX 300R - 2005 года выпуска`
-
№АртикулНазвание
-
220220F0514 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
550550D1210 PIN, COTTER, 1.2X10PIN, COTTER, 1.2X10
-
1103611036-1297 BRACKET, A, LEVER HOLDERBRACKET, A, LEVER HOLDER
-
1307013070-1270 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1309113091-1131 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
2701027010-1279 SWITCH, LIGHTINGSWITCH, LIGHTING
-
27010A27010-1350 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
3209932099-1143 CASE, THROTTLE, UPPERCASE, THROTTLE, UPPER
-
32099A32099-1144 CASE, THROTTLE, LOWERCASE, THROTTLE, LOWER
-
3918339183-1059 BAND, ASSY, ENGINE STOP SWITCHBAND, ASSY, ENGINE STOP SWITCH
-
4600346003-1382-458 HANDLE (P.SILVER)HANDLE (P.SILVER)
-
4601246012-0011-458 HOLDER, HANDLE, UPPER (P.SILVER)HOLDER, HANDLE, UPPER (P.SILVER)
-
4601946019-1078 GRIP, ASSY, THROTTLEGRIP, ASSY, THROTTLE
-
4605546055-009 SCREW, CABLE ADJUST, 8MMSCREW, CABLE ADJUST, 8MM
-
4605646056-006 NUT, CABLE ADJUSTNUT, CABLE ADJUST
-
4607546075-1107 GRIP (LEFT)GRIP (LEFT)
-
4607646076-1163 LEVER, ASSY, GRIP, CLUTCHLEVER, ASSY, GRIP, CLUTCH
-
4609246092-1110 LEVER, GRIP, CLUTCHLEVER, GRIP, CLUTCH
-
5944159441-1094-290 COVER, HANDLE (LEFT) (L.GREEN)COVER, HANDLE (LEFT) (L.GREEN)
-
59441A59441-1108-290 COVER, HANDLE (RIGHT) (L.GREEN)COVER, HANDLE (RIGHT) (L.GREEN)
-
9200192001-1034 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9200992009-1699 SCREW, 5X16SCREW, 5X16
-
9201592015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9204392043-1434 PIN, 5X27.5PIN, 5X27.5
-
9207292072-1293 BAND, L=140BAND, L=140
-
9215092150-1291 BOLTBOLT
-
92150A92150-1696 BOLT, FLANGED, 8X35BOLT, FLANGED, 8X35
-
9217092170-1255 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
