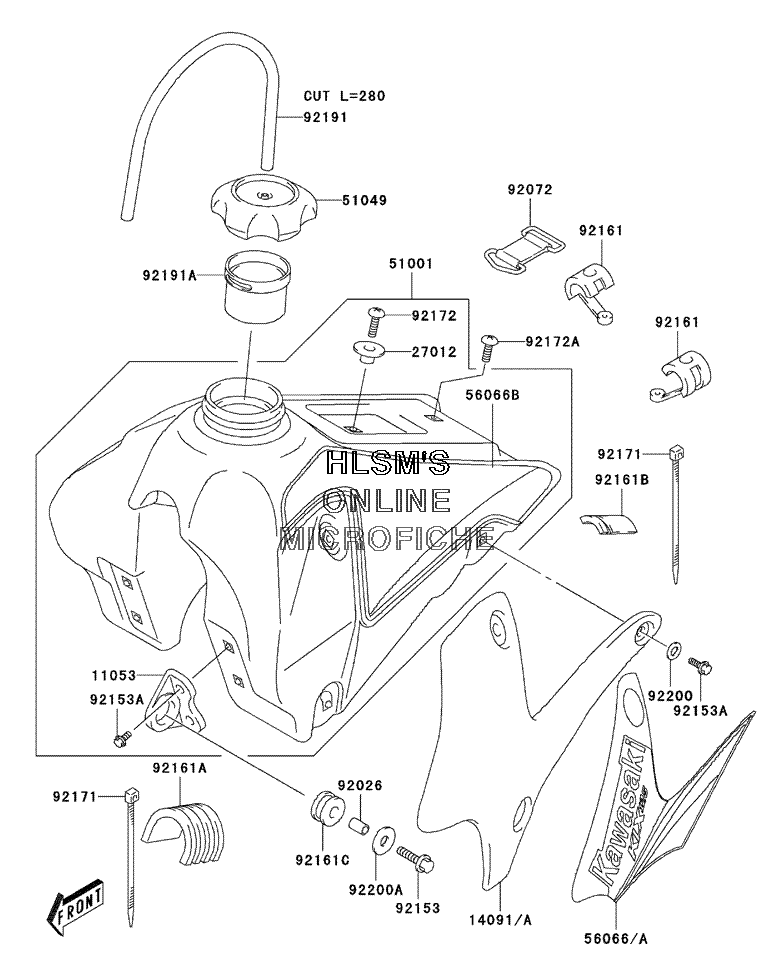

FUEL TANK для Kawasaki KLX 125 - 2005 года выпуска

  • №
    Артикул
    Название
  • 11053
    11053-S001 BRACKET, FUEL TANK, FRONT
    BRACKET, FUEL TANK, FRONT
  • 14091
    14091-S062-908 COVER, FUEL TANK (RIGHT) (L.GREEN)
    COVER, FUEL TANK (RIGHT) (L.GREEN)
  • 14091A
    14091-S063-908 COVER, FUEL TANK (LEFT) (L.GREEN)
    COVER, FUEL TANK (LEFT) (L.GREEN)
  • 27012
    27012-S003 HOOK, SEAT FRONT
    HOOK, SEAT FRONT
  • 51001
    51001-S024-539 TANK, COMP, FUEL (BLACK)
    TANK, COMP, FUEL (BLACK)
  • 51049
    51049-S004 CAP, TANK
    CAP, TANK
  • 56066
    56066-S048-910 PATTERN (RIGHT) (BLACK/GOLD/GREEN/WHITE)
    PATTERN (RIGHT) (BLACK/GOLD/GREEN/WHITE)
  • 56066A
    56066-S049-910 PATTERN (LEFT) (BLACK/GOLD/GREEN/WHITE)
    PATTERN (LEFT) (BLACK/GOLD/GREEN/WHITE)
  • 56066B
    56066-S050-913 PATTERN, SET, TANK (BLACK/GREEN)
    PATTERN, SET, TANK (BLACK/GREEN)
  • 92026
    92026-S049 SPACER, FUEL TANK, FRONT
    SPACER, FUEL TANK, FRONT
  • 92072
    92072-S004 BAND, FUEL TANK, REAR
    BAND, FUEL TANK, REAR
  • 92153
    92153-S003 BOLT
    BOLT
  • 92153A
    92153-S144 BOLT
    BOLT
  • 92161
    92161-S062 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161A
    92161-S063 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161B
    92161-S064 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161C
    92161-S065 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92171
    92171-S056 CLAMP, FUEL TANK CUSHION
    CLAMP, FUEL TANK CUSHION
  • 92172
    92172-S019 SCREW
    SCREW
  • 92172A
    92172-S055 SCREW
    SCREW
  • 92191
    92191-S028 TUBE, FUEL TANK BREATHER
    TUBE, FUEL TANK BREATHER
  • 92191A
    92191-S029 TUBE, FUEL TANK FILLER
    TUBE, FUEL TANK FILLER
  • 92200
    92200-S078 WASHER
    WASHER
  • 92200A
    92200-S080 WASHER
    WASHER
