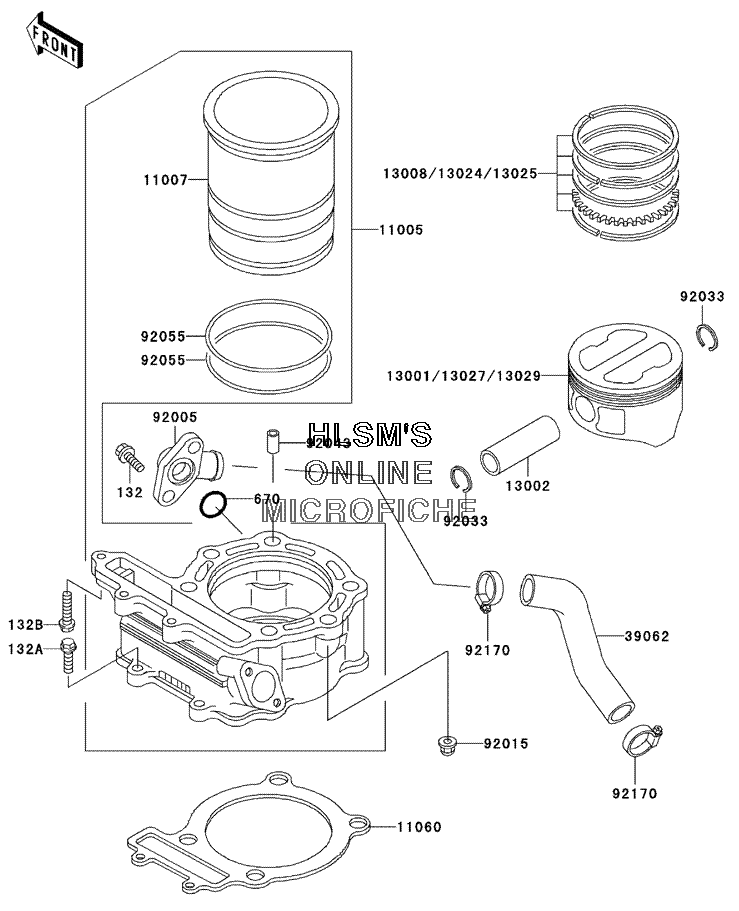

CYLINDER - PISTON(S) для Kawasaki KLR250 - 2005 года выпуска`
-
№АртикулНазвание
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132J0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
670670B2018 O-RING, 18MMO-RING, 18MM
-
1100511005-1387 CYLINDER, ENGINECYLINDER, ENGINE
-
1100711007-1070 LINER, CYLINDERLINER, CYLINDER
-
1106011060-1125 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1280 PISTON, ENGINE, STDPISTON, ENGINE, STD
-
1300213002-1023 PIN, PISTON, 12X18X57.2PIN, PISTON, 12X18X57.2
-
1300813008-1066 RING, SET, PISTON, STDRING, SET, PISTON, STD
-
1302413024-1068 RING, SET, PISTON LL, O/S 1.00RING, SET, PISTON LL, O/S 1.00
-
1302513025-1065 RING, SET, PISTON L, O/S 0.50RING, SET, PISTON L, O/S 0.50
-
1302713027-1152 PISTON, ENGINE LL, O/S 1.00PISTON, ENGINE LL, O/S 1.00
-
1302913029-1175 PISTON, ENGINE L, O/S 0.50PISTON, ENGINE L, O/S 0.50
-
3906239062-1082 HOSE, COOLINGHOSE, COOLING
-
9200592005-1122 FITTINGFITTING
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
9203392033-1182 RING, SNAPRING, SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-1247 O-RINGO-RING
-
9217092170-1033 CLAMP, COOLING HOSECLAMP, COOLING HOSE
